| Place of Origin: | China |
| Brand Name: | URILIC |
| Certification: | CQC, TUV, CE, UL, ROHS |
| Model Number: | 30W |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood box |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T |
| Supply Ability: | 1000PCS/week |
| Product Name: | Polycrystalline Solar Panel | Power: | 30W |
|---|---|---|---|
| Max. Power Voltage: | 18.0 V | Junction Box IP Rate: | IP65 |
| Size: | 720*345*25mm | Weight: | 3.6kg |
| Solar Cell: | Poly 156*35*0.19 Cell | Number Of Cells: | 36pcs |
| High Light: | mono versus poly solar panels,multicrystalline silicon solar cells |
||

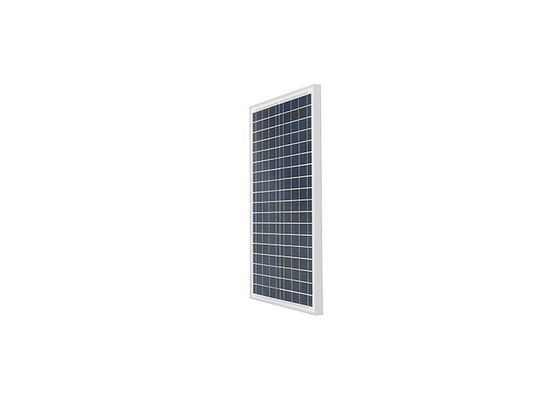

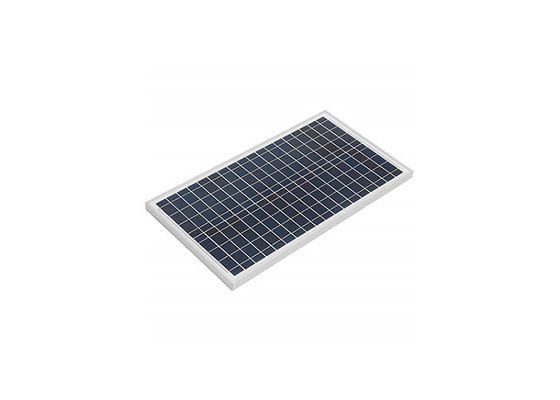

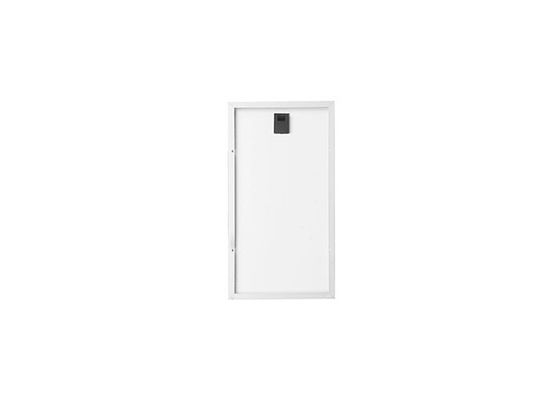

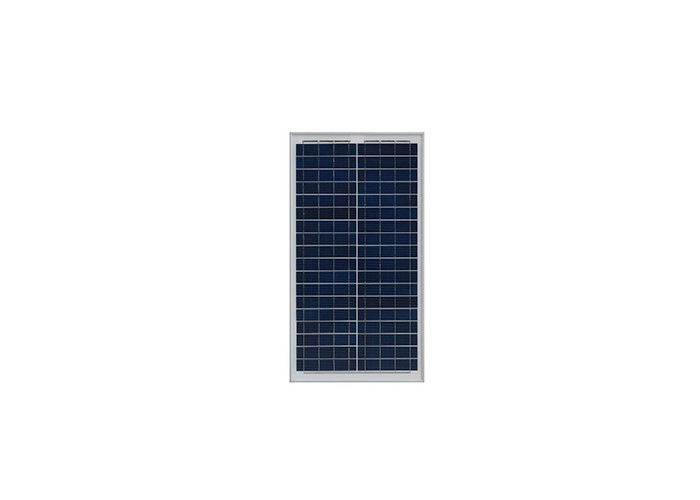

30W-18V Polycrystalline Solar Panel 30 Watt Solar Panel Polycrystalline Panels
Description:
Polycrystalline solar panels are made from similar silicon material hence instead of going through the slow and more expensive process of creating a single crystal, molten silicon is just put into a cast and cooled with a seed crystal. By using the casting method, the crystal surrounding the seed isn’t uniform and branches into many, smaller crystals, thus the term “polycrystalline”. The surface has a jumbled look with many variations of blue colour.
In general, we have a number of successful projects around the world, such as grid-connected power generation systems, off-grid power generation systems, and integrated power generation facilities. We have advanced, mature and stable supply lines to support your multi-faceted needs in the solar market.
Mechanical drawing:
Product Details:
| Model | U30P-12 |
| Peak Power (W) | 30±3% |
| Open circuit voltage (V) | 21.6 |
| Peak Voltage (V) | 18.0 |
| peak current (A) | 1.67 |
| Short-circuit current (A) | 1.81 |
| Solar cells efficiency | 16.5% |
| Maximum system voltage (V) | 1000V DC |
| Rated operating temperature | 48±2°C |
| Working temperature range | -40°C- +85°C |
| Current temperature coefficient | 0.1%/°C |
| Voltage temperature coefficient | -0.37%/°C |
| Power Temperature Coefficient | -0.45%/°C |
| Solar Cell | 156*35*0.19mm |
| Number of cells | 36 pcs |
| Size | 720*345*25mm |
| Weight | 3.6 kgs |
| Surface Packaging | Low iron tempered glass/3.2mm |
| Sealant | Ethylene Vinyl Acetate (EVA) |
| Border | Anodized Aluminum/Silver |
| Junction Box Waterproof Level | ≥IP65 |
| Pre-wind pressure | 2400Pa |
| Back wind pressure | 2400Pa |
| Maximum hail impact | 25mm/ 23m/s |
Product Structure:
Tempered Glass
Solar cell
Frame
Junction box
Our advantage:
Solar power stations, Small solar wind hybrid system, Rural electrification, Small home power systems, Power supply for traffic, security, gas industry, 12V and 24V battery charging systems, Other industrial and commercial applications.
