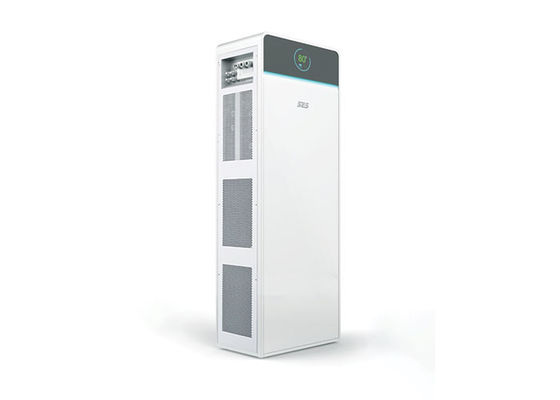

3-5KW Off Grid Solar Panel System , Power Supply Storage Energy System IP21

3-5KW Off Grid Solar Panel System , Power Supply Storage Energy System IP21

    • 3-5KW Off Grid Solar Panel System , Power Supply Storage Energy System IP21
    • 3-5KW Off Grid Solar Panel System , Power Supply Storage Energy System IP21
    • 3-5KW Off Grid Solar Panel System , Power Supply Storage Energy System IP21
    • 3-5KW Off Grid Solar Panel System , Power Supply Storage Energy System IP21
  • 3-5KW Off Grid Solar Panel System , Power Supply Storage Energy System IP21

    Product Details:

    Place of Origin: China
    Brand Name: URILIC
    Certification: CE,UL
    Model Number: USES-3KW-5KW

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiation
    Packaging Details: Plywood box
    Delivery Time: 5-15 days
    Payment Terms: T/T
    Supply Ability: 1000PCS/month
    Contact Now
    Detailed Product Description
    Product Name: Off Grid Lithium Battery Output Power: 3KW, 5KW
    Cycle Life: >4000 Battery Capacity: 4.8~14.4KWh
    Size: 560*320*1235mm Weight: 250kg
    High Light:

    off grid lithium ion battery

    ,

    lifepo4 lithium battery

    43KW to 5KW Off Grid Lithium Battery Power Supply Storage Energy System


    USES-3KW-5KW is able to store clean energy generated by solar PV with lithium battery, which allows maximum self-consumption. Its soft-toned appearance and less occupied area merges perfectly with home environment.
    USES-3KW-5KW combines PV power generation, energy storage and power supply as a family power supply integration solution. The system provides access to economic solar energy and stores extra energy, turning families into mini-power stations and ensures continuous clean energy supply.

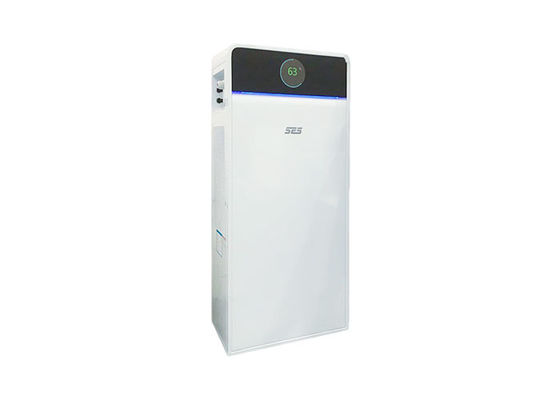

    3-5KW Off Grid Solar Panel System , Power Supply Storage Energy System IP21

    Product Details:

    ItemUSES-3KWUSES-5KW
    System
    Output Power3KW5KW
    Battery Capacity4.8/7.2/9.6/12/14.4KWh9.6/12/14.4KWh
    Single Phase/3 PhaseSingle phase
    Shifting Time<20ms(on-grid to off-grid,off-grid to on-grid)
    LCD ScreenEnglish Script
    CommunicationEthernet/Dry contact/CAN/RS232/Wifi
    CoolingNatural air-cooling
    Work Temperature-10℃~+50℃
    IPIP21
    Noise<40dB
    Dimension(L*W*H)560*320*1235mm560*320*1235mm
    Weight250KG250KG
    System Design Life20 years
    Battery
    Battery TypeLithium battery
    Cycle Life>4000
    Quality Assurance10 years
    Module
    Nominal Voltage48V48V
    Maximum Charge Current50A100A
    Maximum Discharge Current100A200A
    Maximum Charge Power3KW5KW
    PV System
    Maximum Voltage Allowed550V
    Start voltage125V
    MPPT Work Voltage125V~530V
    MPPT Efficiency99.9%
    Maximum Input Power3300W5000W
    Maximum Input Current12A12A/12A
    MPPT Passageway12
    Conversion Rate97.6%



    Key Features:

    • 10 years warranty
    • Using electricity smartly and reducing home electricity bill
    • Modular design and easy installation
    • Collecting information precisely ,real-time remote monitoring via WEB or APP

    When you choose URILIC, you cling to high quality and high reliability. USES has a design life of up to 20 years, the cell of which is from well-known cell manufacturing enterprises. All the cells run thorough tests before assembled into batteries, such as cycle life tests, combustion tests, over-charge tests, over-discharge tests, short circuit tests, acupuncture tests and so on. At the same time, our installation staffs are certified professionals. With 10 years of quality assurance, you can avoid a lot of troubles.

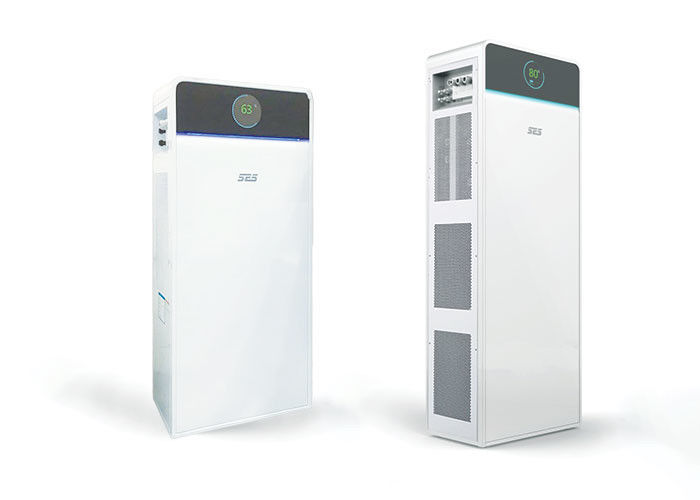

    3-5KW Off Grid Solar Panel System , Power Supply Storage Energy System IP21

    Multiple and Wide Application:

    3-5KW Off Grid Solar Panel System , Power Supply Storage Energy System IP21

    • Communication base station + Solar PV
    • Home PV micro-gird
    • Tourism island + solar PV
    • Wind turbine + Solar PV charge station

    Our advantage:

    URILIC is the world's leading manufacturer and marketer of energy-supply systems, primarily for wind and light energy front-end power generation, back-end energy storage applications, and product range from intelligent integration of new energy peripheral products.

    URILIC is constantly striving to become China's leading OEM/ODM manufacturer. To this end, URILIC is committed to working with world-class brands to deliver on our promises and provide partners with complete power solutions.
