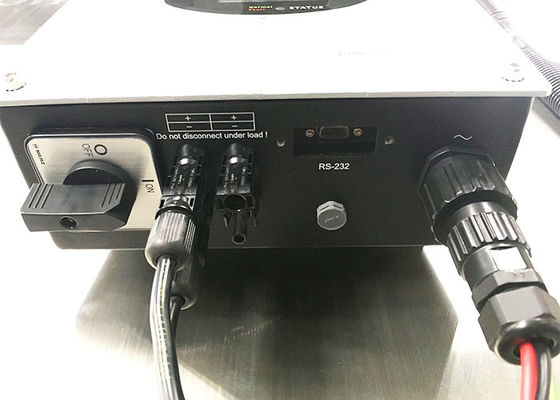

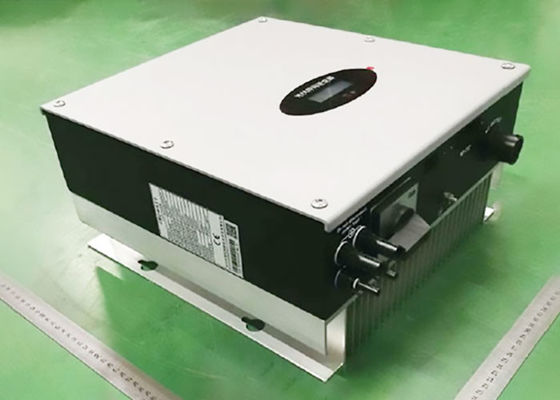

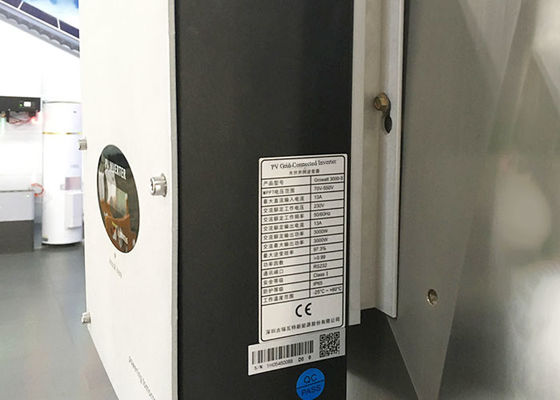

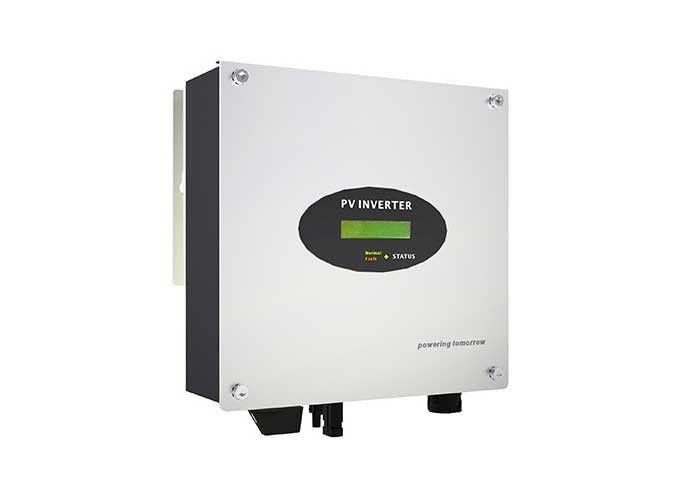

3KW Single Phase Solar Wind Inverter 240VAC 271×359×141 Mm Compact Design

3KW Single Phase Solar Wind Inverter 240VAC 271×359×141 Mm Compact Design

    • 3KW Single Phase Solar Wind Inverter 240VAC 271×359×141 Mm Compact Design
    • 3KW Single Phase Solar Wind Inverter 240VAC 271×359×141 Mm Compact Design
    • 3KW Single Phase Solar Wind Inverter 240VAC 271×359×141 Mm Compact Design
    • 3KW Single Phase Solar Wind Inverter 240VAC 271×359×141 Mm Compact Design
  • 3KW Single Phase Solar Wind Inverter 240VAC 271×359×141 Mm Compact Design

    Product Details:

    Place of Origin: China
    Brand Name: URILIC
    Certification: CE,UL,ISO9001
    Model Number: 750W, 1KW, 1.5KW, 2KW, 2.5KW, 3KW

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Plywood
    Delivery Time: 7 working days after received payment
    Payment Terms: T/T
    Supply Ability: 1000 sets/ month
    Contact Now
    Detailed Product Description
    Product Name: Solar Wind Inverter AC Connection: Single Phase
    Type: Residential Inverter Rated Power: 750W, 1KW, 1.5KW, 2KW, 2.5KW, 3KW
    Display: LCD AC Outpu: 220V/230V/240VAC
    Size: 271*359*141 Mm (2.5KW-3KW) Weight: 6.4 Kg (0.75KW-2KW), 9.1 Kg (2.5KW-3KW)
    Warranty: 5 Years / 10 Years Application: PV Grid-connected Inverter System
    High Light:

    wind power inverter

    ,

    3 phase grid tie solar inverter

    0.75KW to 3KW Single Phase Grid Tied Inverter Solar Wind Inverter Residential Inverters

    Description:

    Leading edge technology. Double MPPT Tracker, MPPT tracking accuracy more than 99.5%. Max. Efficiency 97.9%, European Efficiency 97.4%. Integrated DC switch for added safety protection. Transformerless design and high power density, offer lighter and more convenient installation. Power factor continuously adjustable. Flexible communication connection, support RF, WiFi, Ethernet. Comply with European, Asia-Pacific safety regulations.



    Single Phase Grid Tied Inverter Features:

    • Leading-edge Technology
    • Maximum efficiency of 96.5% and wide input voltage range
    • DC switch optional
    • High frequency
    • Compact design
    • MTL-String
    • Ethernet/RF technology/Wi-Fi
    • Sound control
    • Fanlesscooling concept
    • Easy installation
    • High reliability


    Product Details (0.7KW to 1.5KW):

    Datasheet 750-S 1000-S 1500-S
    In put Data
    Max. recommended PV power (for module STC) 970W 1300W 1950W
    Max. DC voltage 450V 450V 450V
    Start voltage 50V 80V 80V
    MPP work voltage range 50V-450V 70V-450V 70V-450V
    Nominal voltage 120V 180V 250V
    Max. input current 10A 10A 10A
    Max. input current per string 10A 10A 10A
    Number of independent MPP trackers/strings per MPP tracker 1/1
    Output (AC)
    Rated AC output power 750W 1000W 1600W
    Max. AC power 750W 1000W 1650W
    Max. output current 3.3A 4.7A 7.8A
    AC nominal voltage 220V/230V/240V
    AC grid frequency; range 50Hz,60Hz /±5Hz
    Adjustable power factor 0.8leading...0.8lagging
    THDI <3%
    AC connection Single phase
    Efficie ncy
    Max. efficiency 97.2% 97.4% 97.4%
    Euro weighted efficiency 96% 96.5% 97%
    MPPT efficiency 99.5% 99.5% 99.5%
    Protecti on Devices
    DC reverse polarity protection yes
    DC switch yes
    Output over current protection yes
    Output AC overvoltage Protection - Varistor yes
    Ground fault monitoring yes
    Grid monitoring yes
    Integrated all-pole sensitive leakage current monitoring unit yes
    Gen eral Data
    Dimensions (W / H / D) in mm 271/299/141
    Weight 6.4KG
    Operating temperature range -25°C ... +60°C
    Noise emission (typical) C25 dB(A)
    Self-Consumption night <0.5 W
    Topology Transformerless
    Cooling concept Natural
    Environmental Protection Rating IP65
    Altitude 2000m without derating
    Relative humidity 100%
    Features
    DC connection H4/MC4(opt)
    AC connection Connector
    Display LCD
    Interfaces: RS232/RF/Wi-Fi/ LAN/GPRS yes/opt/opt/opt/opt
    Warranty:5 years/10 years yes/opt



    Product Details (2KW to 3KW):

    Datasheet 2000-S 2500-S 3000-S
    In put Data
    Max. recommended PV power (for module STC) 2600W 3250W 3900W
    Max. DC voltage 450V 550V 550V
    Start voltage 80V
    MPP work voltage range 70V-450V 70V-500V 70V-550V
    Nominal voltage 360V
    Max. input current 11A 12A 13A
    Max. input current per string 11A 12A 13A
    Number of independent MPP trackers/strings per MPP tracker 1/1
    Output (AC)
    Rated AC output power 2000W 2500W 3000W
    Max. AC power 2000W 2500W 3000W
    Max. output current 9.5A 11.9A 14.3A
    AC nominal voltage 220V/230V/240V
    AC grid frequency; range 50Hz,60Hz /±5Hz
    Adjustable power factor 0.8leading...0.8lagging
    THDI <3%
    AC connection Single phase
    Efficie ncy
    Max. efficiency 97.4% 97.6% 97.6%
    Euro weighted efficiency 97% 97.3% 97.3%
    MPPT efficiency 99.5%
    Protecti on Devices
    DC reverse polarity protection yes
    DC switch yes
    Output over current protection yes
    Output AC overvoltage Protection - Varistor yes
    Ground fault monitoring yes
    Grid monitoring yes
    Integrated all-pole sensitive leakage current monitoring unit yes
    Gen eral Data
    Dimensions (W / H / D) in mm 271/299/141 271/359/141
    Weight 6.4KG 9.1KG
    Operating temperature range -25°C ... +60°C
    Noise emission (typical) C25 dB(A)
    Self-Consumption night <0.5 W
    Topology Transformerless
    Cooling concept Natural
    Environmental Protection Rating IP65
    Altitude 2000m without derating
    Relative humidity 100%
    Features
    DC connection H4/MC4(opt)
    AC connection Connector
    Display LCD
    Interfaces: RS232/RF/Wi-Fi/ LAN/GPRS yes/opt/opt/opt/opt
    Warranty:5 years/10 years yes/opt



    Single Phase Grid Tied Inverter Packaging:

    3KW Single Phase Solar Wind Inverter 240VAC 271×359×141 Mm Compact Design
