Place of Origin: | China |
Brand Name: | URILIC |
Certification: | ISO9001,CE,UL,IEC |
Model Number: | Park Street Light |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | Multiple packaging |
Delivery Time: | 5-30 work days |
Payment Terms: | T/T |
Supply Ability: | 500 sets/ month |
Product Name: | Wind And Solar Hybrid Street Light System | Wind Turbines: | 600W |
---|---|---|---|
LED Lamps: | 18W | Solar Panels: | 80W |
Controller: | Wind And Solar Hybrid Controller | Battery: | Lead Acid 100Ah |
Safety Class: | Class A | Applications: | Highway Lighting, Industrial Park |
High Light: | hybrid solar street light,solar and wind powered street lights |

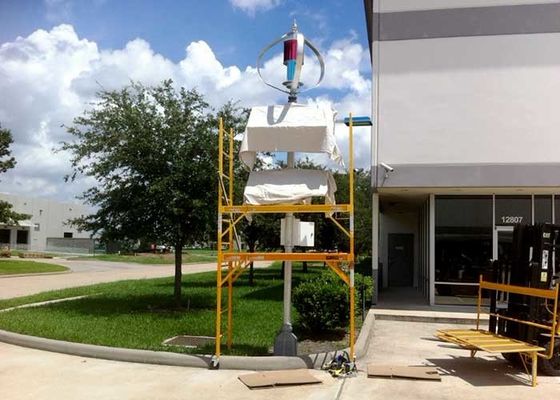

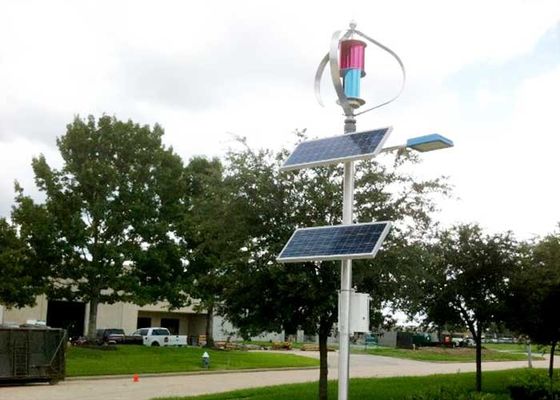

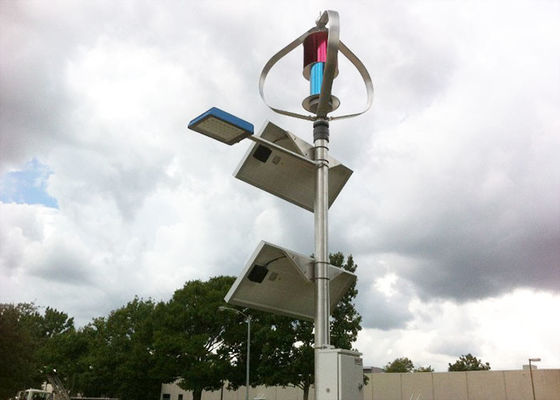

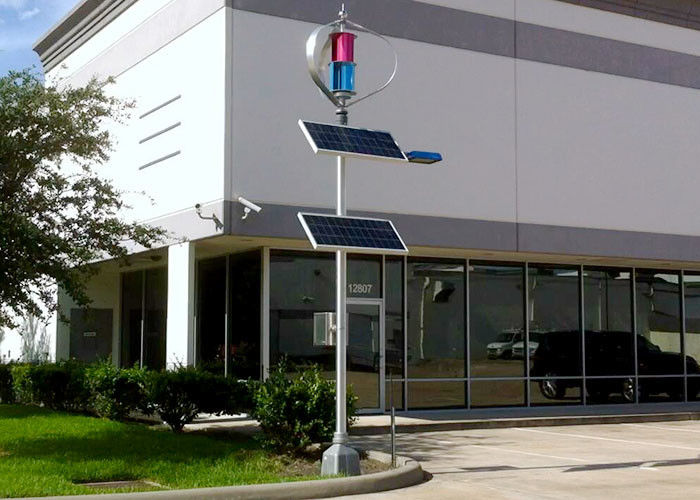

Park Street Light Wind And Solar Hybrid Street Light System Installed in the United States
Wind And Solar Hybrid Street Light Description:
Applicable places: urban roads, residential areas, streets, industrial parks, landscape lighting, tourist scenic spots, parks, garden green belts, squares, pedestrian streets and other outdoor lighting places.
Wind and solar hybrid street light system features:
Solar cell module: high-quality solar single crystal silicon, conversion efficiency of more than 16%, 60W-330W combined with local actual conditions.
Magnetic levitation wind power generator: The blade is made of high-strength light aluminum alloy, hollow-drawn and formed, streamlined design, stable rotation and no noise. The utility model has the advantages of low wind speed, anti-typhoon, anti-corrosion and anti-sanding performance. With vertical axis design, the shape is beautiful, the color is soft, and the birds are easy to recognize.
Maintenance-free battery: fully enclosed lead-acid valve battery, buried moisture-proof gel battery, 60AH-250AH/12V according to the actual project specific configuration.
Installation site is industrial park, which brings convenience for people to travel. Wind and solar system has been built, forming a beautiful scenery.
Wind And Solar Hybrid Controller Features:
Solar Panels Features:
Model | U80M-12 | U85M-12 |
Peak Power (W) | 80±3% | 85±3% |
Open circuit voltage (V) | 21.6 | 21.6 |
Peak Voltage (V) | 18.0 | 18.0 |
peak current (A) | 4.45 | 4.72 |
Short-circuit current (A) | 4.84 | 5.05 |
Cell efficiency | 19.0% | 20.0% |
Maximum overcurrent (A) | 10A | |
Maximum system voltage (V) | 1000V DC | |
Rated operating temperature | 48±2°C | |
Working temperature range | -40°C- +85°C | |
Current temperature coefficient | 0.1%/°C | |
Voltage temperature coefficient | -0.37%/°C | |
Power Temperature Coefficient | 0.45%/°C | |
Solar Cell | 156*78*0.19mm | |
Number of cells | 36 pcs | |
Size | 765*666*30mm | |
Weight | 7.0 kgs | |
Surface Packaging | Low iron tempered glass/3.2mm | |
Sealant | Ethylene Vinyl Acetate (EVA) | |
Border | Anodized Aluminum/Silver | |
Junction Box | Crimping + Welding Treatment | |
Pre-wind pressure | 2400Pa | |
Back wind pressure | 2400Pa | |
Maximum hail impact | 25mm/ 23m/s |
System Feature:
