| Place of Origin: | China |
| Brand Name: | URILIC |
| Certification: | UL,CE |
| Model Number: | 100W |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood box |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T |
| Supply Ability: | 1000PCS/week |
| Product Name: | Monocrystalline Solar Module | Power: | 80W, 85W |
|---|---|---|---|
| Size: | 765*666*30mm | Weight: | 7.0kg |
| Solar Cell: | Mono 156*78 Cell | Number Of Cells: | 36pcs |
| Front Cover: | 3.2mm High Transmission Low Iron Tempered Glass | Solar Panel: | Monocrystalline 100W Solar Panel |
| High Light: | monocrystalline silicon pv panels,mono silicon solar panels |
||

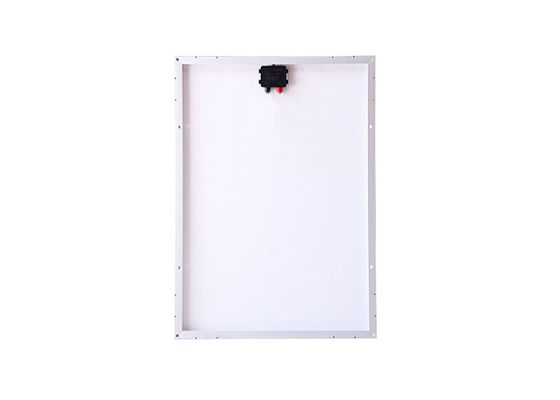

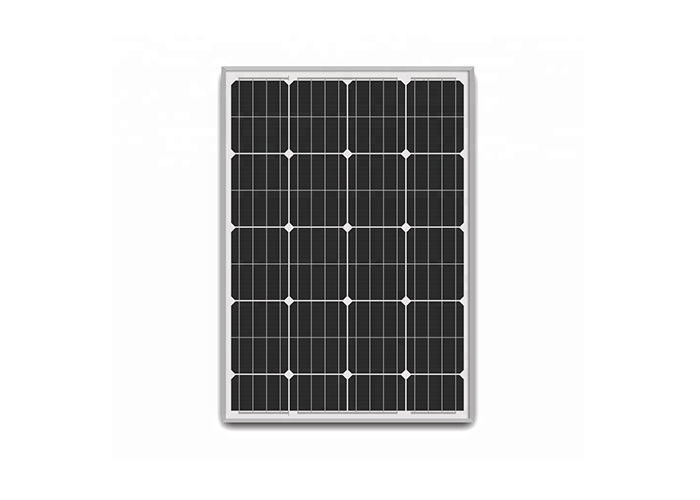

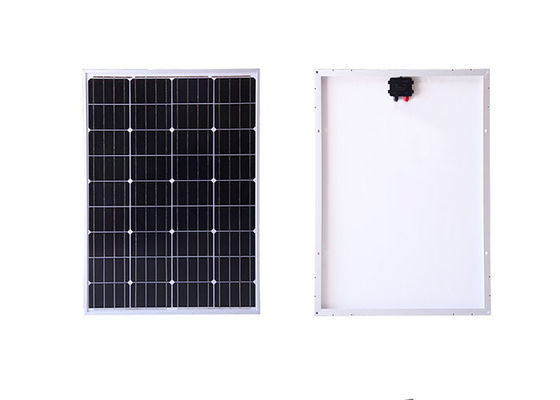

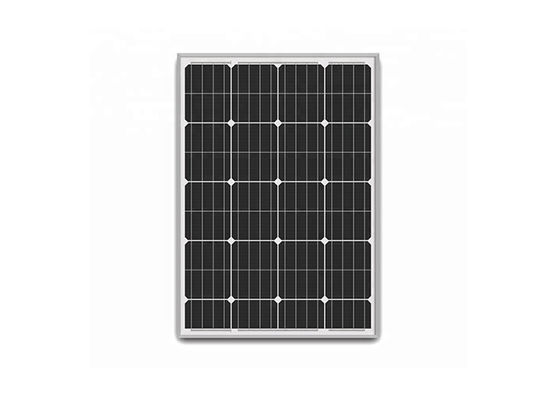

100W-18V Monocrystalline PV Cells Monocrystalline Solar Panels
Description:
The monocrystalline silicon solar panel is a module body in which a single crystal silicon cell is formed in a different string and array. The main advantages of single crystal plates are conversion efficiency and smooth aesthetics. Monocrystalline Solar Panels have been the go-to the choice for many years. They are among the oldest, most efficient and most dependable ways to produce electricity from the sun. Each module is made from a single silicon crystal and it is recognized by their colour, which is typically black or iridescent blue.
Features:
Product Details:
| Model | U100M-12 |
| Peak Power (W) | 100±3% |
| Open circuit voltage (V) | 21.6 |
| Peak Voltage (V) | 18.0 |
| peak current (A) | 4.45 |
| Short-circuit current (A) | 4.84 |
| Cell efficiency | 19.0% |
| Maximum overcurrent (A) | 10A |
| Maximum system voltage (V) | 1000V DC |
| Rated operating temperature | 48±2°C |
| Working temperature range | -40°C- +85°C |
| Current temperature coefficient | 0.1%/°C |
| Voltage temperature coefficient | -0.37%/°C |
| Power Temperature Coefficient | 0.45%/°C |
| Solar Cell | 156*78*0.19mm |
| Number of cells | 36 pcs |
| Size | 765*666*30mm |
| Weight | 7.0 kgs |
| Surface Packaging | Low iron tempered glass/3.2mm |
| Sealant | Ethylene Vinyl Acetate (EVA) |
| Border | Anodized Aluminum/Silver |
| Junction Box | Crimping + Welding Treatment |
| Pre-wind pressure | 2400Pa |
| Back wind pressure | 2400Pa |
| Maximum hail impact | 25mm/ 23m/s |
100W-18V small solar panel assembly size chart
Our advantage:
|
|
||
|
Solar Cell High Efficiency PV Cells |

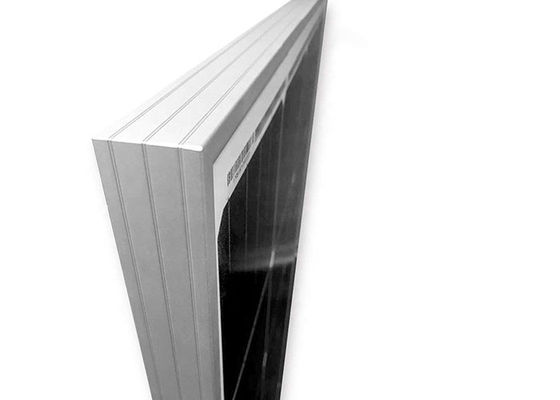

Frame Frame thinkness>18mm Oxidation Film>15Pm TUV&UL standard sillica gel Ability to resist 5400Pa mechanical pressure Good anti-corruption performance in seaside environment
|
Solar junction box PPO material, IP67. Heat dissipation Long service life |
|
|
|||
|
