High Frequency Solar Power System Inverter 12V-48V 350W-2000W For Off Grid System

High Frequency Solar Power System Inverter 12V-48V 350W-2000W For Off Grid System

    • High Frequency Solar Power System Inverter 12V-48V 350W-2000W For Off Grid System
    • High Frequency Solar Power System Inverter 12V-48V 350W-2000W For Off Grid System
    • High Frequency Solar Power System Inverter 12V-48V 350W-2000W For Off Grid System
    • High Frequency Solar Power System Inverter 12V-48V 350W-2000W For Off Grid System
  • High Frequency Solar Power System Inverter 12V-48V 350W-2000W For Off Grid System

    Product Details:

    Place of Origin: China
    Brand Name: URILIC
    Certification: CE,UL,ISO9001
    Model Number: NPower Series NP-260-3500

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Plywood
    Delivery Time: 7 working days after received payment
    Payment Terms: T/T
    Supply Ability: 1000 sets/ month
    Contact Now
    Detailed Product Description
    Product Name: High Frequency Power Inverter Rated Power: 350W, 500W, 1000W, 1500W, 2000W
    Battery Voltage: 12V, 24V, 48V AC Outpu: 220V/230V, 110V/120V
    Output Frequency: 50HZ / 60HZ Application: Off Grid System, Charge Inverter
    Weight: 1.0~4.6kg Enclosure: IP20
    High Light:

    wind power inverter

    ,

    low frequency power inverter

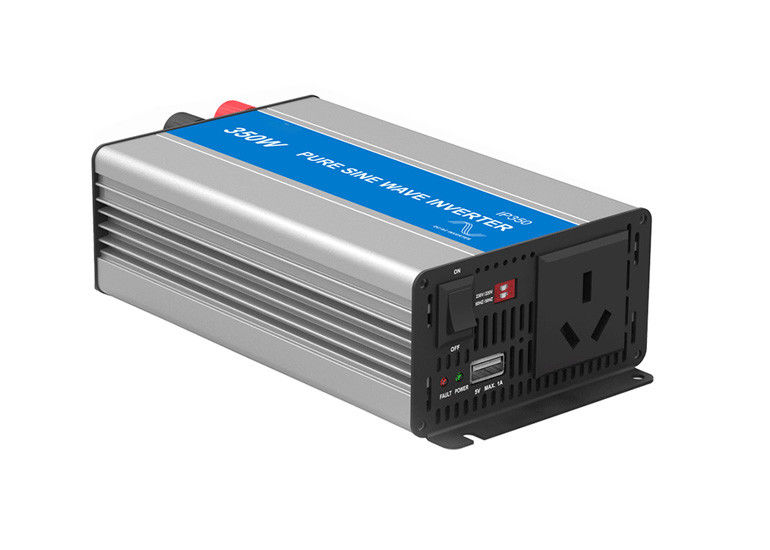

    IPower 350W - 2000W High Frequency Power Inverter Pure Sine Wave Inverter 12V - 48V

    Description:

    IPower series is a kind of pure sine wave inverter which can convert. 12/24/48VDC to 220/230VAC(or 110/120VAC). Industrial design, compared with the civil design, has a wider operating temperature, easy installation and operation. The wide input voltage range is ideal for solar system application. The inverter can be applied in many fields, such as household emergency lighting system, vehicle mounted system and small field power supply etc.



    High Frequency Power Inverter Features:

    • Safe design with input and output electrical isolation

    • Adoption of advanced SPWM technology, pure sine wave output

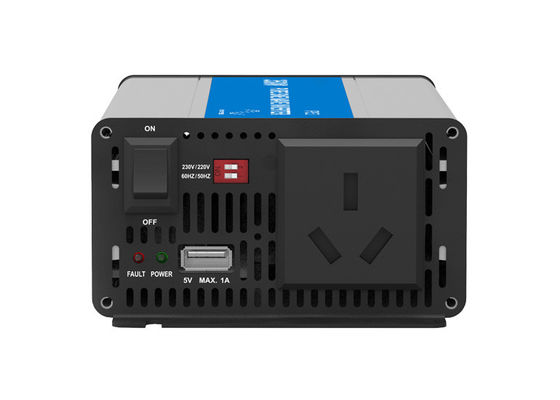

    • Optional output voltage 220/230VAC(or 110/120VAC), choosing by DIP switch

    • LED indicators for fault status and working status

    • Lower No-load consumption

    • Max. efficiency up to 95%(IP2000-22, IP2000-42)①

    • Input protection: Over voltage protection, low voltage protection

    • Output protection: Over load protection, short circuit protection

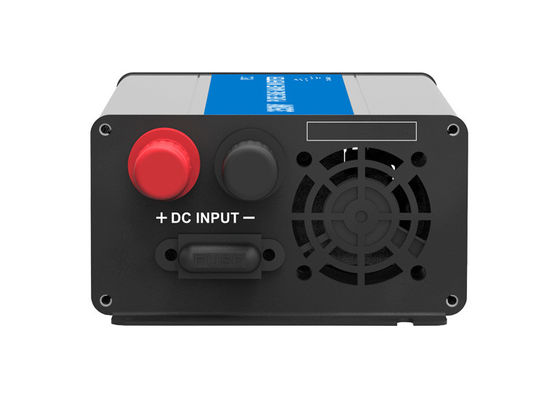

    • Over temperature protection: Temperature-controlled Fan Ventilation; Inverter turns off automatically when overheating

    • Operational USB output 5VDC/1A

    • Operational RS485 communication port②

    ① The efficiency is tested at rated input voltage,220V output with resistive load, 25 Ambient temperature,1500W and higher version

    ② 1000W and higher version support RS485 communication port optional.


    Product Details (IP-350):

    Model IP-350-12 IP-350-22 IP-350-11 IP-350-21
    Rated Input Voltage 12VDC 24VDC 12VDC 24VDC
    Input Voltage Range 10.8~16VDC 21.6~32VDC 10.8~16VDC 21.6~32VDC
    Input surge voltage <32VDC <44VDC <32VDC <44VDC
    Output Voltage

    2 2 0 V A C ( ± 5%)

    230VAC (-7% ~ + 5%)

    110VAC (± 5%)
    20VAC (-10% ~ + 5%)
    Output Frequency 50/60±0.1Hz
    Output Continuous Power 280W
    Output Power 15 min. 350W
    Surge power 750W
    Output Wave 0.2-1(VA lower than output continuous power)
    Battery Input voltage range Pure sine wave
    Distortion THD THD≤3%① THD≤5%①
    Max. Efficiency 91% 92% 90% 91%
    No-load current <0.7A <0.5A <0.7A <0.5A
    USB Output Port② 5VDC/Max.1A
    Binding Post Φ6mm
    Overall dimension 214 × 105.5 × 57.7mm
    Mounting Dimension 185.5 × 76.7mm
    Mounting hole size Φ4.2mm
    Net Weight 1.0kg



    Product Details (IP-500):

    Model IP-500-12 IP-500-22 IP-500-11 IP-500-21
    Rated Input Voltage 12VDC 24VDC 12VDC 24VDC
    Input Voltage Range 10.8~16VDC 21.6~32VDC 10.8~16VDC 21.6~32VDC
    Input surge voltage <32VDC <44VDC <32VDC <44VDC
    Output Voltage

    2 2 0 V A C ( ± 5%)

    230VAC (-10% ~ + 5%)

    1 1 0 V A C ( ± 5%)

    120VAC (-10% ~ + 5%)

    Output Frequency 50/60±0.1Hz
    Output Continuous Power 400W
    Output Power 15 min. 500W
    Surge power 1000W
    Output Wave 0.2-1(VA lower than output continuous power)
    Battery Input voltage range Pure sine wave
    Distortion THD THD≤3%① THD≤5%①
    Max. Efficiency 92% 91%
    No-load current <0.9A <0.5A <0.9A <0.5A
    USB Output Port② 5VDC/Max.1A
    Binding Post Φ6mm
    Overall dimension 232.2 × 132 × 74.5mm
    Mounting Dimension 205 × 102 mm
    Mounting hole size Φ5.2mm
    Net Weight 1.7 kg



    Product Details (IP-1000):

    Model IP-1000-12 IP-1000-22 IP-1000-11 IP-1000-21
    Rated Input Voltage 12VDC 24VDC 12VDC 24VDC
    Input Voltage Range 10.8~16VDC 21.6~32VDC 10.8~16VDC 21.6~32VDC
    Input surge voltage <20VDC <40VDC <20VDC <44VDC
    Output Voltage

    220VAC / 230VAC (± 5%)

    110VAC / 120VAC (± 3%)

    Output Frequency 50/60±0.1Hz
    Output Continuous Power 800W
    Output Power 15 min. 1000W
    Surge power 1600W
    Output Wave 0.2-1(VA lower than output continuous power)
    Battery Input voltage range Pure sine wave
    Distortion THD THD≤3%① THD≤5%①
    Max. Efficiency 94.5% 92.5%
    No-load current <0.8A <0.5A <0.8A <0.5A
    USB Output Port② 5VDC/Max.1A
    RS485 Com. Port② 5VDC / 200mA
    Binding Post Φ10mm
    Overall Dimension(mm) 298.3 × 231.5
    × 98.5
    284.7 × 231.5
    × 98.5
    298.3 × 231.5
    × 98.5
    284.7 × 231.5
    × 98.5
    Mounting Dimension 183 × 220 mm 163 × 219.5mm 183 × 220 mm 163 × 219.5mm
    Mounting hole size Φ5.5mm
    Net Weight 3.9 kg 3.6 kg 3.9 kg 3.6 kg



    Product Details (IP-1500):

    Model IP-1500-12 IP-1500-22 IP-1500-11 IP-1500-21
    Rated Input Voltage 12VDC 24VDC 12VDC 24VDC
    Input Voltage Range 10.8~16VDC 21.6~32VDC 10.8~16VDC 21.6~32VDC
    Input surge voltage <20VDC <40VDC <20VDC <40VDC
    Output Voltage 220VAC (± 5%)
    230VAC (-7% ~ + 5%)
    110VAC (± 3%)
    120VAC (-7% ~ + 3%)
    Output Frequency 50/60±0.1Hz
    Output Continuous Power 1200W
    Output Power 15 min. 1500W
    Surge power 2400W
    Output Wave 0.2-1(VA lower than output continuous power)
    Battery Input voltage range Pure sine wave
    Distortion THD THD≤3%① THD≤5%①
    Max. Efficiency 93% 94% 93% 94%
    No-load current <1.0A <0.6A <1.0A <0.6A
    USB Output Port② 5VDC/Max.1A
    RS485 Com. Port② 5VDC / 200mA
    Binding Post Φ10mm
    Overall Dimension(mm) 326,12×231.5
    ×98.5
    284.7×231.5
    ×98.5
    326,12×231.5
    ×98.5
    284.7×231.5
    ×98.5
    Mounting Dimension 208 × 220 mm 163 × 219.5mm 208 × 220 mm 163 × 219.5mm
    Mounting hole size Φ5.5mm
    Net Weight 4.6 kg 3.9 kg 4.6 kg 3.9 kg



    Product Details (IP-2000):

    Model IP-2000-22 IP-2000-42 IP-2000-21 IP-2000-41
    Rated Input Voltage 24VDC 48VDC 24VDC 48VDC
    Input Voltage Range 21.6 ~ 32VDC 43.2 ~ 60 VDC 21.6 ~ 32VDC 43.2 ~ 60 VDC
    Input surge voltage <40VDC <80VDC <40VDC <80VDC
    Output Voltage

    2 2 0 V A C (± 5%)

    230VAC (-10% ~ + 5%)

    1 1 0 V A C ( ± 5%)

    120VAC (-10% ~ + 5%)

    Output Frequency 50/60±0.1Hz
    Output Continuous Power 1600W
    Output Power 15 min. 2000W
    Surge power 3200W
    Output Wave 0.2-1(VA lower than output continuous power)
    Battery Input voltage range Pure sine wave
    Distortion THD THD≤3%① THD≤5%①
    Max. Efficiency 95% 94%
    No-load current <0.6A <0.4A <0.6A <0.4A
    USB Output Port② 5VDC/Max.1A
    RS485 Com. Port② 5VDC / 200mA
    Binding Post Φ10mm
    Overall dimension 326.12 × 231.5 × 98.5mm
    Mounting Dimension 208 × 219.5mm
    Mounting hole size Φ5.5mm
    Net Weight 4.6 kg



    ①Test condition: Rated Input Voltage, Output Continuous Power, Resistive load.
    ②Conventional products don’t have this port; the port is optional.



    Environmental Parameters:

    Working Temperature -20 ℃ ~ + 45 ℃
    Storage Temperature -35 ℃ ~ + 70 ℃
    Humidity <95% (NC)
    Enclosure IP20
    Altitude < 5000 m (Derating to operate according to IEC62040 at a height exceeding 1000m)



    Others

    Dielectric Strength Between DC input terminals and metal case:
    Test voltage AC500V, 1 minute
    Between AC output terminals and metal case:
    Test voltage AC1500V, 1 minute



    Application Topology:

    High Frequency Solar Power System Inverter 12V-48V 350W-2000W For Off Grid System
