High Lumen Solar And Wind Powered Street Lights 50,000 - 100,000 Hours

High Lumen Solar And Wind Powered Street Lights 50,000 - 100,000 Hours

    • High Lumen Solar And Wind Powered Street Lights 50,000 - 100,000 Hours
    • High Lumen Solar And Wind Powered Street Lights 50,000 - 100,000 Hours
    • High Lumen Solar And Wind Powered Street Lights 50,000 - 100,000 Hours
    • High Lumen Solar And Wind Powered Street Lights 50,000 - 100,000 Hours
  • High Lumen Solar And Wind Powered Street Lights 50,000 - 100,000 Hours

    Product Details:

    Place of Origin: China
    Brand Name: URILIC
    Certification: ISO9001,CE,UL,IEC
    Model Number: Street Lamp With Lanterns Hanging

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Multiple packaging
    Delivery Time: 5-30 work days
    Payment Terms: T/T
    Supply Ability: 500 sets/ month
    Contact Now
    Detailed Product Description
    Product Name: Wind And Solar Hybrid Street Light System Wind Turbines: 600W
    Structure: Combined Drag-based And Lift-based Design Solar Panels: 90W-600W
    Controller: Wind And Solar Hybrid Controller Battery Type: Lead Acid
    Safety Class: Class A Application: Highway Lighting
    High Light:

    solar and wind powered street lights

    ,

    wind turbine powered street lights

    Street Lamp With Lanterns Hanging Wind And Solar Hybrid Street Light System Shenzhen China


    Description:

    Dapeng New District is a planned new district of Shenzhen. It is located on the eastern coast of Shenzhen and borders on Dapeng Bay. Located in southern China, according to the Shenzhen Meteorological Bureau, the solar energy resources of Dapeng New District are at an intermediate level, and the wind energy resources are abundant. The number is about 2060 hours, the annual solar radiation is 5225 MJ/m2, and the average annual impact is 6-8 times by tropical cyclone (typhoon); the wind speed above 3 m/s is about 3850 hours/year, wind/light The comprehensive resources are of a high level in Asia. Therefore, the use of wind-solar hybrid power generation system as a power supply method for street lamps is feasible, and it is also necessary from the perspective of policy orientation and economic efficiency. However, in the Shenzhen area, special requirements for power generation equipment and pole lighting.

    Therefore, you should consider:

    1. The instability of wind and light resources has an impact on the power generation of wind turbines and solar photovoltaic panels. At the same time, the microscopic environment of each pole is different, and the wind and light resources have different degrees of difference. Therefore, wind turbines The amount of electricity generated by photovoltaic panels varies from time to time.
    2. Wind turbines, solar photovoltaic panels, light pole lamps must choose the right type. Or formulate a suitable plan based on the actual situation of the site survey.

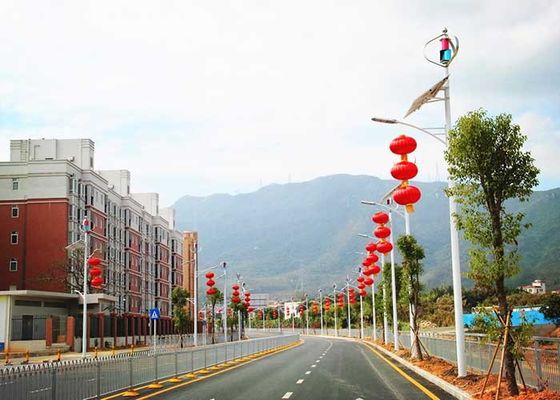

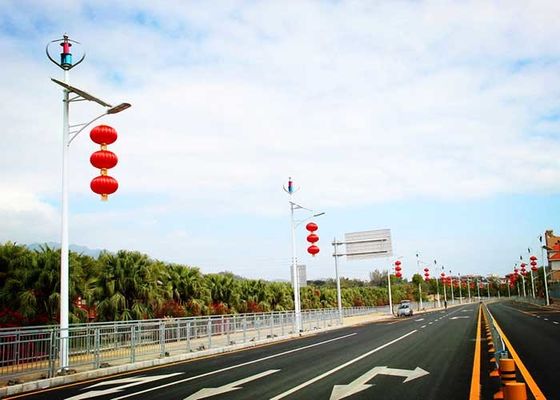

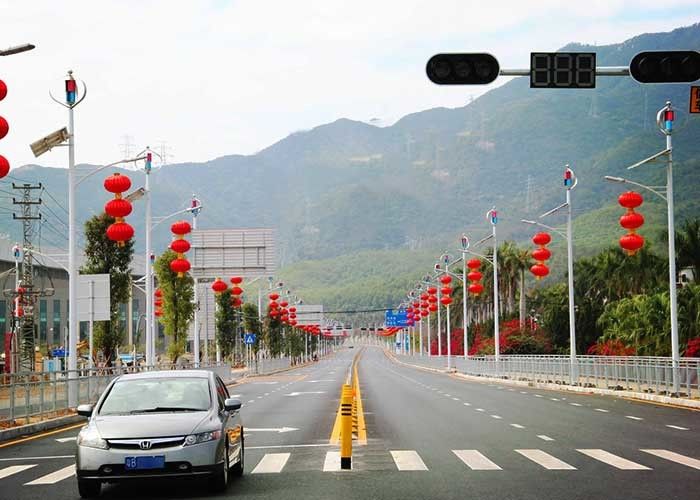

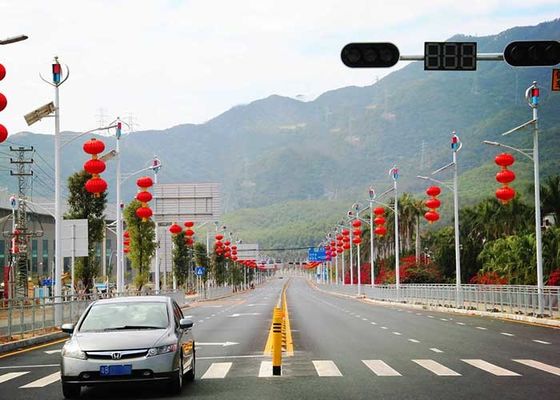

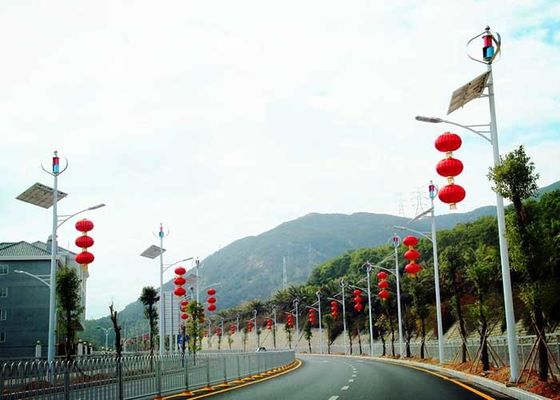

    Beautiful lanterns embellish the beauty of street lamps and embody Chinese characteristics. Street lamp with lanterns hanging wind and solar hybrid street light system in Shenzhen China.



    Design Standards:

    1. Lighting adopts LED lamps: main road: configuration one: LED lamp 80W; configuration two: LED lamp 70W+25W; configuration three: LED lamp 80W+25W;
    2. Adopt the latest internationally popular design: (1) The road is illuminated for 11 hours every night, the light control is full power; the light control is half power; (the control system intelligently senses the street light automatically lights up during the day to the dark, and automatically goes out when it is dawn)  (2) Five days of continuous rainy days;
    3. The scenery street light scheme meets the following standard design at the same time: CJJ45-9 "Design Standards for Urban Road Lighting"; CJJ89-2001 "Code for Construction and Acceptance of Urban Road Lighting Projects".



    Maglev Vertical Axis Wind Turbine:

    Items

    60024/48

    Rated power

    600W

    Dimension
    (Height/Diameter)

    Ø1100/1250

    Weight

    32kg / 35kg

    Blade material

    Aluminum Alloy

    Blade quantity

    3

    Swept area ㎡

    1.2

    Min starting wind speed

    1.3m/s

    Cut-in wind speed

    2 7m/s

    Rated wind speed

    12m/s

    Cut-off wind speed

    15m/s

    Survival wind speed

    65m/s

    Generator type

    AC,3Phases

    Controller Output Voltage

    24V/48V

    Controller Braking System

    3-phase short circuit by NFB brake

    Ambient Temperature

    -40~50 ℃

    Noise

    Noisy from National Machinery Quality Inspection Centre at 12m/s : <40db



    High Lumen Solar And Wind Powered Street Lights 50,000 - 100,000 Hours

    System Feature:

    • Although the investment cost of wind-solar complementary street lamps is relatively high in the early stage, they do not need to connect electricity to the market, dig cables and slots, and omit the expenditure of frequent replacement of lamps and huge electricity charges.
    • Wind-solar complementary street lamp system is maintenance-free and maintenance-free. The ten-year use price is 38% lower than that of ordinary street lamp, and the longer the use time, the lower the use price.
    • Landscape complementary street lamps provide stable power supply, beautiful shape, add luster to urban roads, is undoubtedly a beautiful landscape.
    • The wide application of wind-solar complementary street lamp system can effectively improve people's awareness of energy conservation and make our life more energy-saving and high-quality.

    Solar Panel Details

    • solar panel: High Efficiency Thin Film Solar Panels, Mono crystalline silicon, Poly crystalline silicon.
    • High efficiency rate, low iron tempered glass.
    • Manufacturing with IEC61215 standard.

    LED luminaire details

    • Lamp body: high-pressure die-cast aluminum. Corrosion-resistant, IP65 or I68.
    • Cover glass: high strength and high lysing hardened glass.
    • Reflector: High purity aluminum or stainless steel SS304. Mirror polishing.
    • Arm diameter: 48 or 60mm.
    • Lumen: 140-150LM/W.
    • Life: 50,000-100,000 hours.

    Solar Battery Details

    • Low-internal resistance clapboard, low internal resistance, good battery capacity
    • Self-discharging rate less than 3% every month.
    • Gassing rate of gelled batteries is only 5% of ordinary sealed batteries.
    • The lifespan is greater than 1000 times at 25C°High Lumen Solar And Wind Powered Street Lights 50,000 - 100,000 Hours
