High - Tech Solar Wind Hybrid System For Traffic Signal LED Display

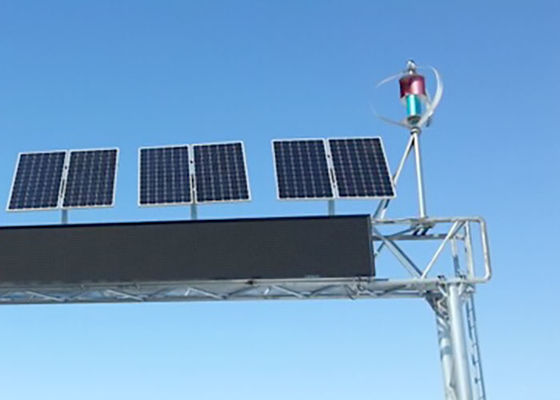

High - Tech Solar Wind Hybrid System For Traffic Signal LED Display

    • High - Tech Solar Wind Hybrid System  For Traffic Signal LED Display
    • High - Tech Solar Wind Hybrid System  For Traffic Signal LED Display
    • High - Tech Solar Wind Hybrid System  For Traffic Signal LED Display
  • High - Tech Solar Wind Hybrid System  For Traffic Signal LED Display

    Product Details:

    Place of Origin: China
    Brand Name: URILIC
    Certification: ISO9001,CE,UL,IEC
    Model Number: Mobile Energy Vehicle Solar Wind Hybrid System

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Multiple packaging
    Delivery Time: 5-30 work days
    Payment Terms: T/T
    Supply Ability: 200 sets/ month
    Contact Now
    Detailed Product Description
    Product Name: Solar Wind Hybrid System Solar Panels: Design As Needed
    Wind Turbines: 600W, 1000W Wind Turbine Connection: Flange Connection
    Box Material: Cold Rolled Steel Box Box Surface Treatment: Surface Treatment Spray
    Usage: Off Grid, Road Signs, Traffic Signal LED Display System: Traffic Signal LED Display Solar Wind Hybrid System
    High Light:

    hybrid wind solar energy system

    ,

    hybrid wind and solar electric systems

    Traffic Signal LED Display Solar Wind Hybrid System Hybrid Power System Road Signs

    The wind and solar hybrid traffic LED signal display variable information mark and the variable speed limit mark are all displayed by the pixel tube composed of the LED light-emitting diodes, and the pixel tube dot matrix is formed into a text or a graphic. It is used to display information about roads (accidents, road maintenance, bad weather) and induce traffic.

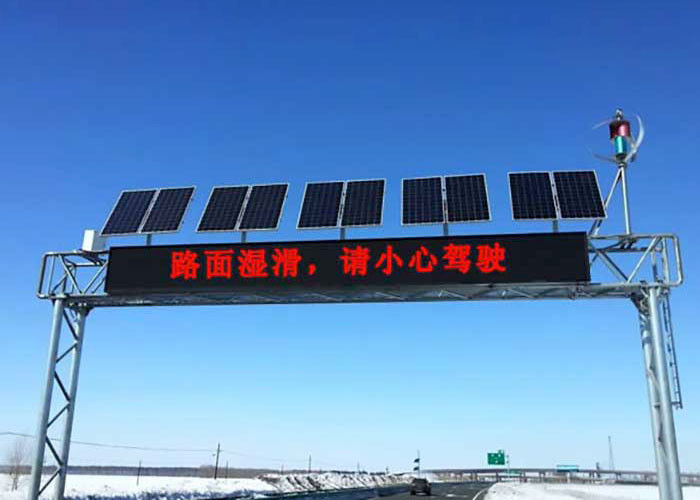

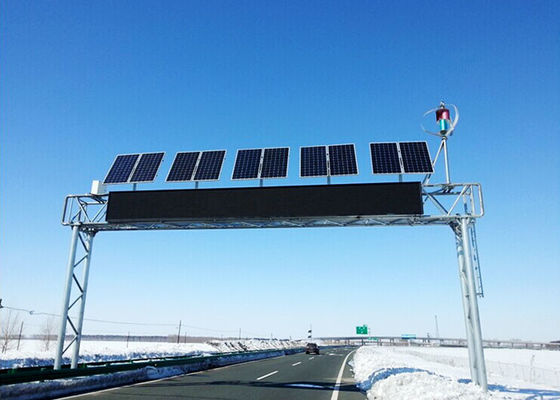

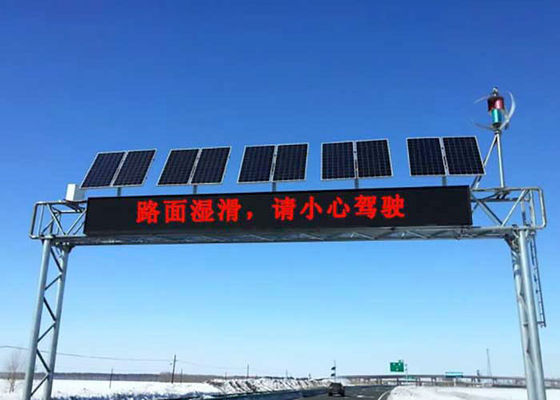

    The wind and solar hybrid traffic LED signal display screen consists of the screen body and internal temperature control, drive system, control system, communication equipment, power supply system and gantry (column) box. By placing it above the roadway or on the side of the road, it can release traffic information for the oncoming vehicles, effectively induce traffic flow, improve the transportation capacity of the road network, promote safe driving, and ensure smooth traffic. the goal of.



    The display area is from 800mm x 800mm to 1536mm x 1536mm, which can meet the specific requirements of different road sections. The brightness can be selected from 6500 to 15000nits, showing the red, green and yellow Chinese characters and icons specified by the national standard.

    High - Tech Solar Wind Hybrid System  For Traffic Signal LED Display



    Hot-selling Maglev Vertical Axis Wind Turbine:

    Items

    60024/48

    100024/48

    Rated power

    600W

    1000W

    Dimension
    (Height/Diameter)

    Ø1100/1250

    Ø1500/1760

    Weight

    32kg / 35kg

    55 kg / 57kg

    Blade material

    Aluminum Alloy

    Aluminum Alloy

    Blade quantity

    3

    3

    Swept area ㎡

    1.2

    1.8

    Min starting wind speed

    1.3m/s

    1.5 m/s

    Cut-in wind speed

    2 7m/s

    3.5m/s

    Rated wind speed

    12m/s

    13m/s

    Cut-off wind speed

    15m/s

    15m/s

    Survival wind speed

    65m/s

    60m/s

    Generator type

    AC,3Phases

    AC,3Phases

    Controller Output Voltage

    24V/48V

    24V/48V

    Controller Braking System

    3-phase short circuit by NFB brake

    3-phase short circuit by NFB brake

    Ambient Temperature

    -40~50 ℃

    -40~50 ℃

    Noise

    Noisy from National Machinery Quality Inspection Centre at 12m/s : <40db



    System Features:

    The wind-solar complementary or solar-powered LED display system is a new type of green high-tech product. It absorbs natural wind and solar energy to power the display equipment. It does not need to be supplied by the city. It is not restricted by the installation area. It does not need to lay the power supply cable. Installation and post-maintenance are very convenient and the overall benefits are good. As an environmentally friendly, non-polluting clean energy source, wind energy is cost-effective, easy to install and maintain, and will gradually replace the traditional power supply method. Generally, highways, national highways, urban roads, roads and trunks of major highways, urban highways, streets, airports, terminals, stations and other transportation sites are used.

    • Advanced: Adopt advanced design ideas combined with exquisite craftsmanship to ensure the advanced nature of the system.
    • Performance and price ratio: The system is easy to operate, easy to maintain, and the software can be easily upgraded to protect the owner's investment. Strive to achieve the most cost-effective display.
    • Practicality: It can meet the requirements of graphic and text information display, and can timely release on-site road conditions, latest notifications and other information.
    • Ornamental: Unique design of the display. It not only ensures the function of the display is perfect, the structure is reasonable, the appearance is modern, and the atmosphere.
    • Reliability: High-efficiency lighting device, high-quality LED driver chip, the whole system adapts to the harsh outdoor environment, software and hardware can run stably for a long time.



    Solar  Panels Configuration:

    Model U280M-20 U285M-20 U290M-20
    Peak Power (W) 280±3% 285±3% 290±3%
    Open circuit voltage (V) 38.2 38.2 38.2
    Peak Voltage (V) 31.5 31.5 31.5
    peak current (A) 8.89 9.08 9.20
    Short-circuit current (A) 9.51 9.68 9.85
    Cell efficiency 19.6% 20.0% 20.4%
    Component Efficiency 17.1% 17.4% 17.7%
    Maximum overcurrent (A) 15A
    Maximum system voltage (V) 1000V DC
    Rated operating temperature 48±2°C
    Working temperature range -40°C- +85°C
    Current temperature coefficient 0.1%/°C
    Voltage temperature coefficient -0.37%/°C
    Power Temperature Coefficient 0.45%/°C
    Solar Cell 156*156*0.19mm
    Number of cells 60 pcs
    Size 1650*992*35mm
    Weight 19.0 kgs
    Surface Packaging Low iron tempered glass/3.2mm
    Sealant Ethylene Vinyl Acetate (EVA)
    Border Anodized Aluminum/Silver
    Junction Box Waterproof Level ≥IP65
    Pre-wind pressure 2400Pa
    Back wind pressure 2400Pa
    Maximum hail impact 25mm/ 23m/s
