| Place of Origin: | China |
| Brand Name: | URILIC |
| Certification: | ISO9001,CE,UL,IEC |
| Model Number: | Rooftop Emergency Power Off-grid System |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Multiple packaging |
| Delivery Time: | 5-30 work days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/ month |
| Product Name: | Solar Wind Hybrid System | Solar Panels: | Design As Needed |
|---|---|---|---|
| Wind Turbines: | 600W, 1000W | Controller Type: | MPPT Controller |
| Design Life: | At Least 20 Years | Usage: | Off Grid, Household Power Supply |
| Wind Turbine Connection: | Flange Connection | System: | Household Power Supply Solar Wind Hybrid System |
| High Light: | wind turbine solar panels hybrid system,hybrid wind and solar electric systems |
||

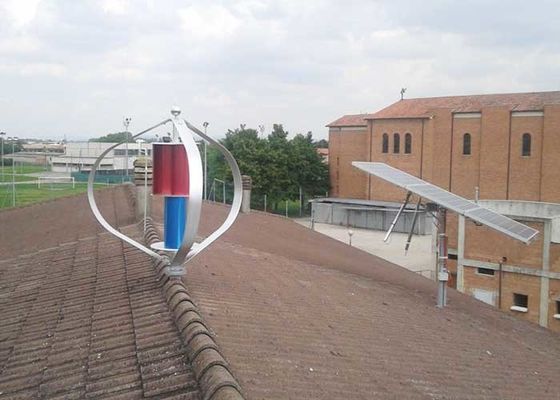

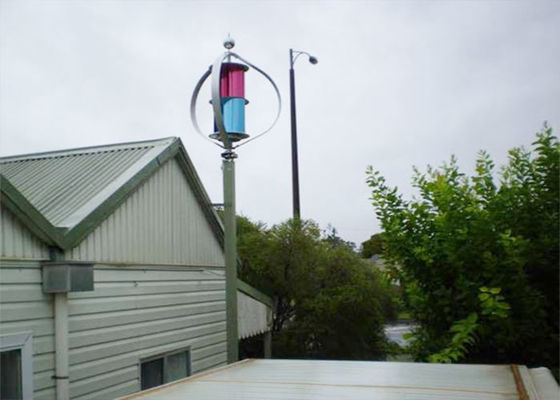

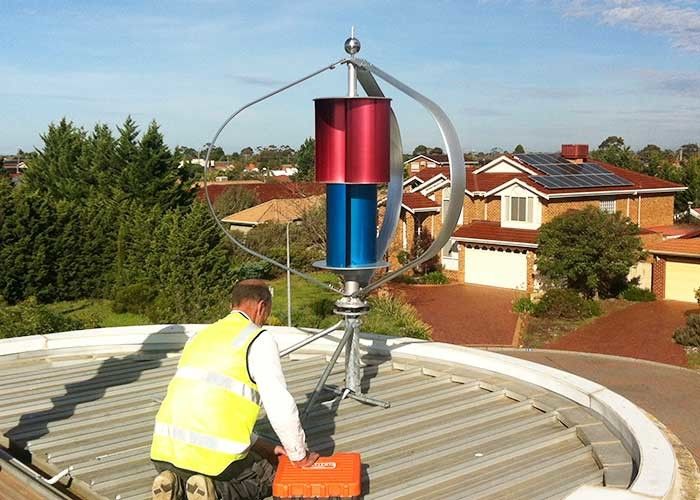

Rooftop Emergency Power Off-grid system of Solar Wind Hybrid System
Environmental overview:
The rooftop emergency power off-grid system is a type that converts wind and light energy into electrical energy and stores it in a battery. Insufficient power supply or maintenance of the national grid for the power supply facilities for a period of time. A device that guarantees uninterrupted power supply to electricity facilities.
The wind-solar complementary power supply device is based on a long-term application of power supply facilities of the city power, and meets the needs of the power supply facilities for continuous power supply in the event of a power failure. We use the complementarity of solar energy and wind energy to store the electricity generated by solar photovoltaic panels and the electricity generated by wind turbines in a battery. When there is a demand for electricity, the battery's energy is used to power the electrical facilities through an inverter. Into an uninterrupted, balanced and stable power supply system. This system can reasonably configure the system capacity according to the user's power load situation and resource conditions, which can ensure the reliability of the power supply of the wind-solar complementary system and reduce the cost of the power generation system. At the same time, the inexhaustible electrical energy can also be transmitted to the national grid without causing waste of energy, which is both environmentally friendly and energy efficient.
Design elements:
| Serial number | Device Name | Specification model | Number | Remarks |
| 1 | Magnetic Suspension Wind Turbine | 1KW48V | 1 | |
| 2 | Solar photovoltaic panel | 320WP/36V | 20 | Monocrystalline silicon |
| 3 | Wind and solar hybrid controller | 1KW/48V | 1 | |
| 4 | Solar charge controller | DC48V | 1 | |
| 5 | Inverter | DC48V-AC220V | 1 | |
| 6 | Battery | 200AH/12V | 16 | Colloidal battery |
►Specific configuration can be designed according to local climate resources.

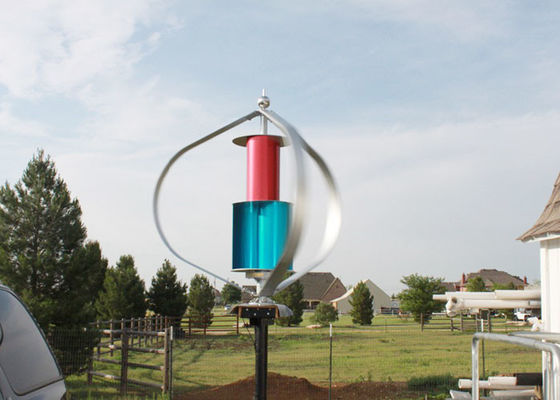

Hot-selling Maglev Vertical Axis Wind Turbine:
|
Items |
60024/48 |
100024/48 |
|
Rated power |
600W |
1000W |
|
Dimension |
Ø1100/1250 |
Ø1500/1760 |
|
Weight |
32kg / 35kg |
55 kg / 57kg |
|
Blade material |
Aluminum Alloy |
Aluminum Alloy |
|
Blade quantity |
3 |
3 |
|
Swept area ㎡ |
1.2 |
1.8 |
|
Min starting wind speed |
1.3m/s |
1.5 m/s |
|
Cut-in wind speed |
2 7m/s |
3.5m/s |
|
Rated wind speed |
12m/s |
13m/s |
|
Cut-off wind speed |
15m/s |
15m/s |
|
Survival wind speed |
65m/s |
60m/s |
|
Generator type |
AC,3Phases |
AC,3Phases |
|
Controller Output Voltage |
24V/48V |
24V/48V |
|
Controller Braking System |
3-phase short circuit by NFB brake |
3-phase short circuit by NFB brake |
|
Ambient Temperature |
-40～50 ℃ |
-40～50 ℃ |
|
Noise |
Noisy from National Machinery Quality Inspection Centre at 12m/s : <40db |
|
