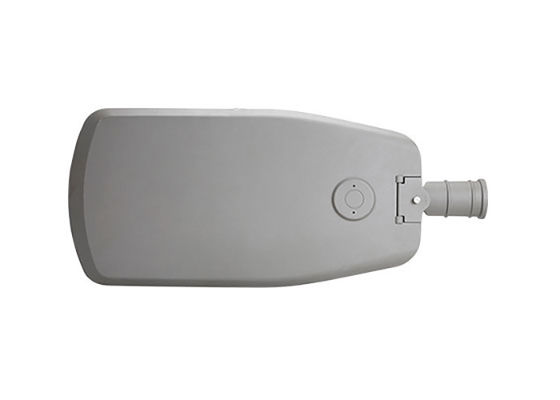

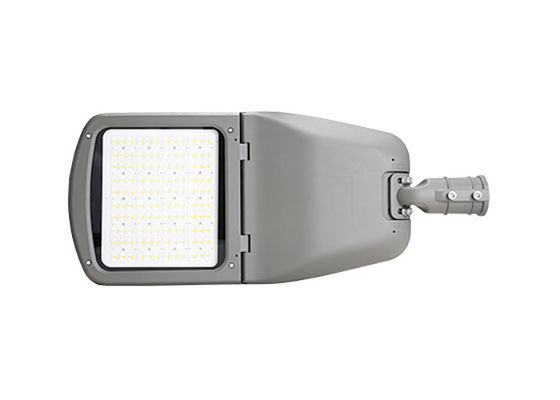

Outdoor High Lumen Led Street Light 150W 200W Optical Lens Design With Large Sales

Outdoor High Lumen Led Street Light 150W 200W Optical Lens Design With Large Sales

    • Outdoor High Lumen Led Street Light 150W 200W Optical Lens Design With Large Sales
    • Outdoor High Lumen Led Street Light 150W 200W Optical Lens Design With Large Sales
  • Outdoor High Lumen Led Street Light 150W 200W Optical Lens Design With Large Sales

    Product Details:

    Place of Origin: SHENZHEN
    Brand Name: URILIC
    Certification: ETL, DLC, ENEC, TUV, CE
    Model Number: U-SL29-L-150W-200W

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: Carton box
    Delivery Time: 5-15 days
    Payment Terms: T/T
    Supply Ability: 1000PCS/week
    Contact Now
    Detailed Product Description
    Product Name: Medium Power LED Street Light Power: 150W-200W
    LEDs Qty.: 120 Pcs Input Voltage: 90-305V/249-528V AC,50-60Hz
    Housing Material: Aluminium 6063-T5 N. W.: 8.9kg
    Lamp Size: 814x346x122mm Packing Size: 875x508x182mm
    High Light:

    high lumen led street light

    ,

    led street light bulb

    80W 100W Medium Power LED Street Light Outdoor Roadway Light IP66 Led Light



    Description:

    Luminaire available from 30-300w. Die-cast Aluminum body with power-coating and anti-corrosion treatment. Excellent heat radiation, optical and electrical ability. Humanized design concept, easy to install and maintain. LED street light IP66, 3 years warranty or 5 years warranty or 7 years warranty or 10 years warranty. Large led street light high luminous effciency and long life. Optional high-quality power supply.



    Vertical and Horizontal installing way both availlable. Quick installing,wind against support bracket to ensure the safe installing and maintence. Easy open button on the top of the boday save the cost of maintence. Good performance of the heat dispation design ensure the longer life time. Electrical parts include driver, SPD, cut off switch. The efficiency of the power supply is high, its power consumption is small, the heat generation in the lamp is small, and the temperature rise of the street lamp is reduced. It is beneficial to delay the light decay of LED street lights.



    Street lamps, street lamp manufacturers, professional custom production of various lamps, spot supply, quality assurance, transparent price, factory direct sales, fast delivery, welcome friends from all walks of life to consult and buy.







    Product Details:


    Model U-SL29-L-150W-200W
    Power 150W-200W
    Luminous efficiency 130-140 Lm/W
    Luminous Flux 20250-27000 lm
    CCT 3000K/4000K/5000K/5500K
    CRI ≥70
    Power supply MOSO/MEANWELL/SOSEN
    LEDs 5050 LED
    LEDs Qty. 120 pcs
    Beam angle Type II-M,III-M,IV-S
    IP/IK rate IP66,IK08
    Working voltage 90-305V/249-528V AC,50-60Hz
    Working temperature -40°C~50°C, 20%~90% H.R.
    Storage temperature -40°C~85°C, 10%~90% H.R.
    Power Efficiency 90%
    PF >0.95
    Lifespan >50000H
    Light pole size Φ60mm
    Housing material Aluminium 6063-T5
    Lamp size 814*346*122 mm (±5mm)
    Package size

    875*508*182 mm (±5mm) (1PCS)

    875*508*276 mm (±5mm) (2PCS)

    Net weight 8.9 kg (±0.1kg)
    Inclination angle Horiziontal & Vertical ±10°







    Quick Detail:

    Outdoor High Lumen Led Street Light 150W 200W Optical Lens Design With Large Sales

    Outdoor High Lumen Led Street Light 150W 200W Optical Lens Design With Large Sales

    1. Optical lens design. Type II-M,III-M,IV-S optional.Uniform lighting distribution apply to different lighting projects.

    2. Excellent operating temperature -40~50°C

    3. -10~10° adjustable bracket applicable different mounting arm.

    4. With excellent housing design reach IP66/IK08 rating.

    5. Buckle design realize tool-free maintenance.

    6. High pressure die-cast aluminum alloy housing from 30W to 200W.

    7. Substantial friction resistant powder spraying process surface treatment.

    8. Adopt multi-chips package 5050 LEDs. Stable performance,flip chip technology, single unit’s damage won't affect others' normal work.



    Mechanical Drawing:

    Outdoor High Lumen Led Street Light 150W 200W Optical Lens Design With Large Sales



    Distribution Curve:

    Outdoor High Lumen Led Street Light 150W 200W Optical Lens Design With Large Sales



    Applications:

    Main scope of application: community, school, square, beautiful countryside, tourist attractions, parking lot, rural solar street lights, etc. Applicable height: 3-10m. Car Park, Village Road Light.
