Place of Origin: | China |
Brand Name: | URILIC |
Certification: | CE,UL,ISO9001 |
Model Number: | Solar PV Branch Connector MC4 |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | Carton or wooden box |
Delivery Time: | 7 working days after received payment |
Payment Terms: | T/T |
Supply Ability: | 500000 sets/ month |
Product Name: | Solar PV Branch Connector | Cable Size: | For 2.5mm,4mm,6mm Cable |
---|---|---|---|
Connector Material: | Tinned Copper PPO | Voltage Resistance: | DC 1000V |
Suitable Cable: | 2.5-6mm2 (14-10AWG) | Waterproof Protection: | IP68 |
Contact Resistance: | <5mΩ | Contact Material: | Copper, Tin Plated |
High Light: | energy parts,power accessories |

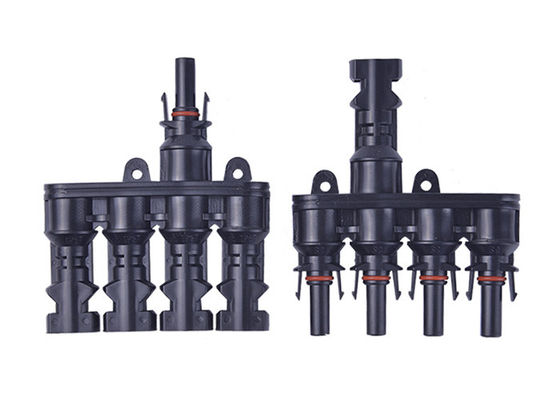

Solar PV Branch Connector 2 to 1 Branch MC4, 3 to 1 Branch MC4, 4 to 1 Branch MC4
Description:
Solar connector is most used in solar photovoltaic power generation system of a special connector, the connector (compatible with connector) is a solar pv panels in series with a parallel array module when the special connector, reliable connection rapidly, waterproof and dustproof, easy to use etc, shell has strong anti-aging, uv resistant ability, the cable connection adopts the hoops and clamping method connection, male and female head fixed with stable self-locking mechanism, open and close freely.It is an indispensable and important part of solar power system.Product science structure, selected materials, ensure that the mechanical and electrical properties are good.
Panel MC4 Solar Connector is specialized used in Solar PV system between the solar panel and Inverter or controller box.They’re UV resistance and can be working outdoor for 25years.
Description of MC4 Connector
IP68 Waterproof Level
Compatible for all kinds of MC4
Simply assembly and quick operation
High-density Waterproof Rubber Ring
Product Details:
Rated Current: |
50A |
Rated Voltage: |
1000V/1500V DC |
Certificate: |
TUV , CE , ISO |
Insulation Material: |
PPO |
Contact Material: |
Copper, Tin plated |
Waterproof Protection: |
IP68 |
Contact Resistance: |
<5mΩ |
Ambient Temperature: |
-40℃~+85℃ |
Flame Class : |
UL94-V0 |
Suitable Cable : |
2.5-6mm2 (14-10AWG) |
Solar PV Branch Connector 2 to 1 Branch MC4
Application:
Connection from the module to the inverter
Solar power is becoming the most popular and promoted energy all over the world. The advantage of solar power station: Safety in Use, Pollution-free, Noise-free, High quality power energy, no limit for the resource distribution area, no waste of fuel and Short-term construction.
What are the performance requirements of solar connectors?
