| Place of Origin: | SHENZHEN |
| Brand Name: | URILIC |
| Certification: | ETL, DLC, ENEC, TUV, CE |
| Model Number: | U-SL29-M-80W-100W |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton box |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T |
| Supply Ability: | 1000PCS/week |
| Product Name: | Medium Power LED Street Light | Power: | 80W-100W |
|---|---|---|---|
| LEDs Qty.: | 72 Pcs | Input Voltage: | 90-305V/249-528V AC,50-60Hz |
| Housing Material: | Aluminium 6063-T5 | N. W.: | 6.2kg |
| Lamp Size: | 670x280x122mm | Packing Size: | 720x330x178mm |
| High Light: | high lumen led street light,led street light bulb |
||

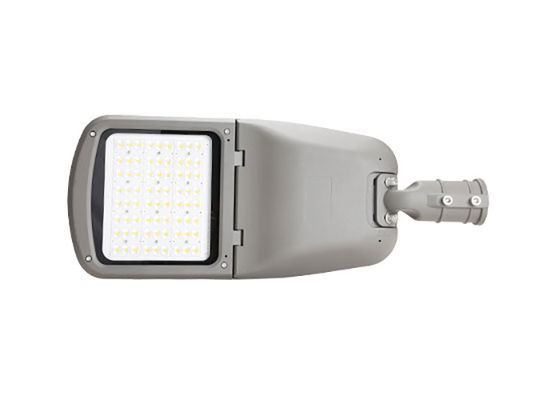

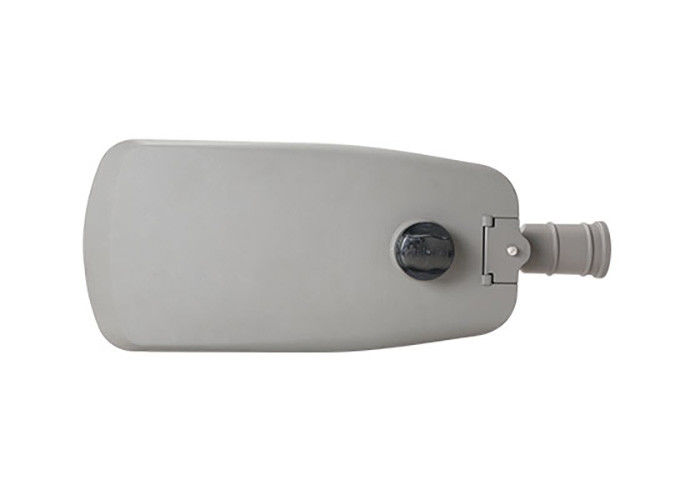

80W 100W Medium Power LED Street Light Outdoor Roadway Light IP66 Led Light
Description:
Vertical and Horizontal installing way both availlable. Quick installing,wind against support bracket to ensure the safe installing and maintence. Easy open button on the top of the boday save the cost of maintence. IP66 passed in factory own lab,have strong sealing material on the front and back. Tempered front glass with IK08 certificate. Good performance of the heat dispation design ensure the longer life time. Electrical parts include driver,SPD,cut off switch. The efficiency of the power supply is high, its power consumption is small, the heat generation in the lamp is small, and the temperature rise of the street lamp is reduced. It is beneficial to delay the light decay of LED street lights.
Street lamps, street lamp manufacturers, professional custom production of various lamps, spot supply, quality assurance, transparent price, factory direct sales, fast delivery, welcome friends from all walks of life to consult and buy.
Quick Detail:
Optical lens design. Type II-M,III-M,IV-S optional.Uniform lighting distribution apply to different lighting projects.
Excellent operating temperature -40~50°C
-10~10° adjustable bracket applicable different mounting arm.
With excellent housing design reach IP66/IK08 rating.
Buckle design realize tool-free maintenance.
Automatic cut-off design.
Dimming and smart lighting system available upon request.
Long service life over 50,000 hours, 5 years warranty.
Easy replacement of the netire LED module and electronic system by removing the tope cover.
Product Details:
| Model | U-SL29-M-80W-100W |
| Power | 80W-100W |
| Luminous efficiency | 130-140 Lm/W |
| Luminous Flux | 10800-13500 lm |
| CCT | 3000K/4000K/5000K/5500K |
| CRI | ≥70 |
| Power supply | MOSO/MEANWELL/SOSEN |
| LEDs | 5050 LED |
| LEDs Qty. | 72 pcs |
| Beam angle | Type II-M,III-M,IV-S |
| IP/IK rate | IP66,IK08 |
| Working voltage | 90-305V/249-528V AC,50-60Hz |
| Working temperature | -40°C~50°C, 20%~90% H.R. |
| Storage temperature | -40°C~85°C, 10%~90% H.R. |
| Power Efficiency | 90% |
| PF | >0.95 |
| Lifespan | >50000H |
| Light pole size | Φ60mm |
| Housing material | Aluminium 6063-T5 |
| Lamp size | 670*280*122 mm (±5mm) |
| Package size |
720*330*178 mm (±5mm) (1PCS) 720*330*268 mm (±5mm) (2PCS) |
| Net weight | 6.2 kg (±0.1kg) |
| Inclination angle | Horiziontal & Vertical ±10° |
Mechanical Drawing:
Distribution Curve:
Applications:
Main scope of application: community, school, square, beautiful countryside, tourist attractions, parking lot, rural solar street lights, etc. Applicable height: 3-10m. Car Park, Village Road Light.
