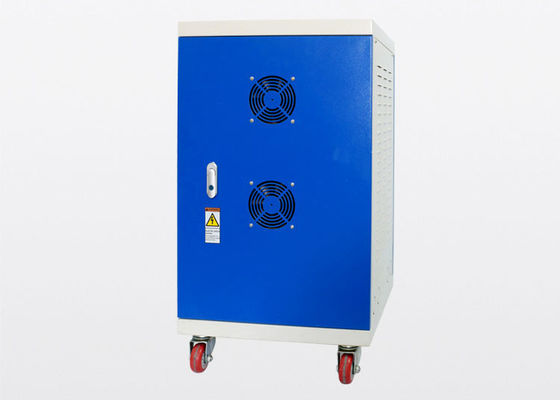

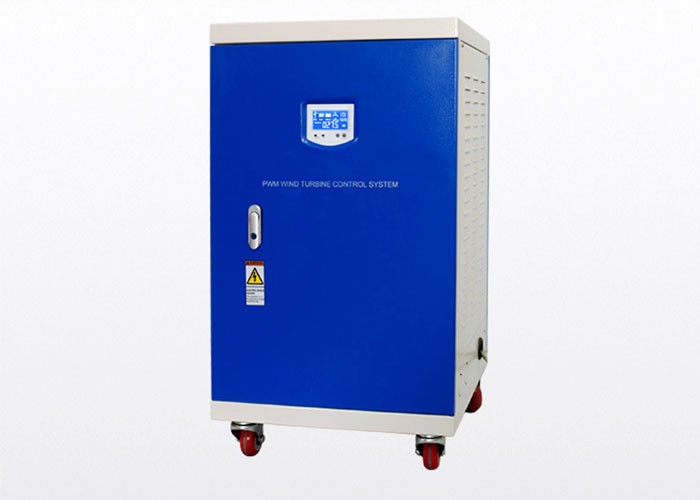

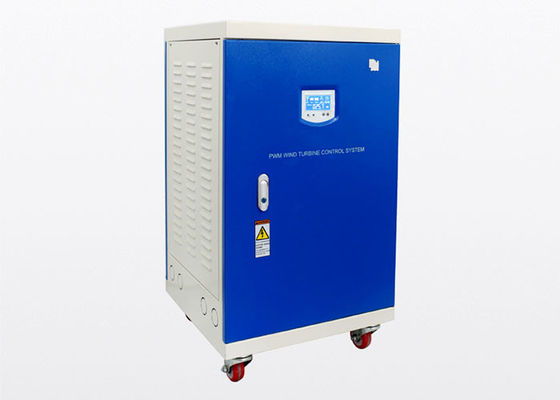

Professional 20KW Wind And Solar Hybrid Charge Controller 420 Volt 58kg

Professional 20KW Wind And Solar Hybrid Charge Controller 420 Volt 58kg

    • Professional 20KW Wind And Solar Hybrid Charge Controller 420 Volt 58kg
    • Professional 20KW Wind And Solar Hybrid Charge Controller 420 Volt 58kg
    • Professional 20KW Wind And Solar Hybrid Charge Controller 420 Volt 58kg
    • Professional 20KW Wind And Solar Hybrid Charge Controller 420 Volt 58kg
  • Professional 20KW Wind And Solar Hybrid Charge Controller 420 Volt 58kg

    Product Details:

    Place of Origin: China
    Brand Name: URILIC
    Certification: ISO9001, CE, UL, IEC
    Model Number: 15KW 120V, 220V,240V

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Multiple packaging
    Delivery Time: 5-30 work days
    Payment Terms: T/T
    Supply Ability: 500 sets/ month
    Contact Now
    Detailed Product Description
    Product Name: Off Grid Solar And Wind Kits Application: Power Supply System, Solar Wind Hybrid System
    Power: 20KW Voltage: 420V
    Size Of Controller: 500*500*900mm Weight Of Controller: 58kg
    Size Of Dump Load: 720*500*1030 Mm Weight Of Dump Load: 90kg
    High Light:

    wind and solar hybrid charge controller


    wind generator controller

    20KW Wind And Solar Charge Controller PWM Solar Charger Controller 420 Volt



    20KW PWM Solar Wind Controller product features:

    1. LCD display, the image visually shows the working status. Various data display: real-time fan power, voltage, current; solar panel power, voltage, current; battery voltage, charging current. Historical data can be saved for 30 days in the event of a power outage.
    2. Two sets of control systems: PWM constant voltage system and three-phase load rejection system.
    3. PWM constant voltage control is 120% of the rated power of wind turbines. If the capacity of the PWM is exceeded, the three-phase dump load will start automatically immediately to ensure safe operation of the entire wind turbine system.
    4. Perform PWM control under strong wind or super strong wind conditions to ensure that the wind turbine charges the battery with constant voltage and current.
    5. When the battery is disconnected or damaged, the three-phase self-unloading load will be automatically started to avoid the wind turbine idling and out of control accidents.
    6. Battery protection function: polarity reverse connection, disconnection and damage protection.
    7. battery overcharge protection: When the battery is full (the battery voltage reaches 125% of the rated voltage), the controller will automatically carry out the three-phase self-unloading load to stop charging the battery.
    8. battery automatic charging: When the battery voltage drops to 108% of the rated voltage, stop the three-phase self-unloading load, and automatically charge the battery.
    9. The controller is equipped with a manual three-phase self-unloading load switch. In order to use this switch, the wind turbine will enforce a three-phase dump load.
    10. The controller is equipped with a scalpel holder. The overvoltage is controlled in the wind turbine at a tolerable voltage of the device or system. On the other hand, strong lightning current should be transmitted directly to the ground to avoid damage to the equipment.
    11. The product is produced according to JB / T6939.1-2004 industrial standard and GB / T19115.1-2003 national standard, and has user technical requirements.
    • The solar panel control system is optional. According to customer requirements.
    • Optional generator port to automatically control the start and stop of the generator.
    •  Adopt Modbus communication protocol. Convenient for secondary development.
    • The technical specifications can be adjusted through RS485 to facilitate professional customers to adjust different fans.
    • For different wind turbines, the controller can be equipped with mechanical yaw, rotary tail control, tail retraction, mechanical brake, hydraulic brake, electromagnetic brake and other braking functions.

    Professional 20KW Wind And Solar Hybrid Charge Controller 420 Volt 58kg

    Wind and solar charge controller are widely used in solar wind hybrid power supply systems.


    20KW PWM Solar Wind Controller Technical Data:

    Type 20KW-420Vdc
    Wind turbine rated power 20KW
    Wind turbine max. power 40KW
    *Solar panel power 6KWp
    Battery 420Vdc
    Function Rectifier,charge, control, *DC output
    Automatic protection function Over voltage protect!on, constant voltage charge, arrester
    Manual function Manual brake
    Display mode LCD+LED
    Display content Wind turbine voltage, current, power; solar panel voltage, current, power; battery voltage, charge current
    PWM constant pressure voltage >507Vdc
    Wind turbine 3-phase dump load 1 voltage 520±5Vdc
    Wind turbine 3-phase dump load 2 voltage 525±5Vdc
    Wind turbine recharge voltage 475±5Vdc
    *Solar control stop charging voltage 520±5Vdc
    *Solar control recharge voltage 475±5Vdc
    *Diesel generator starting voltage 350±5Vdc
    *Diesel generator off voltage 475±5Vdc
    Self-provided 3phase dump load connecting wire >6mm2
    Self-provided battery connecting wire >12mm2
    PWM fuse 80A
    *Solar fuse 20A
    Charging fuse 125A
    Work environment temperature -30-60°C
    Relative humidity <90% No condensation
    Noise (1m) <40dB
    Degree of protection IP20 (Indoor) IP65 (Outdoors)
    Cooling method Forced air cooling
    *Extral Control function (optional) yawing variable pitch, mechanical brake, hydraulic brake, electromagnetism brake
    *Communication interface (optional) RS485/USB/GPRS/WIFI/Ethemet
    *Temperature compensation (optional) -4mv/oC/2V,-35°C-+80oC,Accuracy:±1°C
    Controller Size (mm) 500*500*900
    Controller Weight (kg) 58 kg

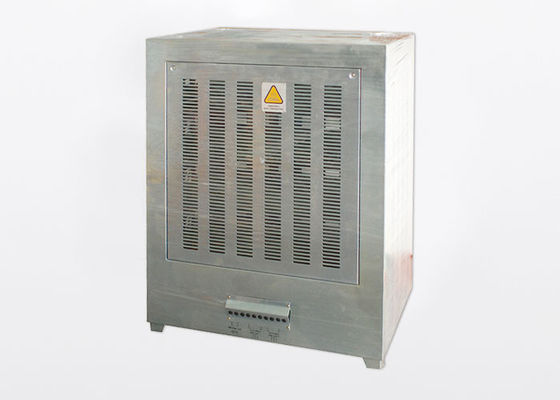

    Dump load Size (mm)  720*500*1030
    Dump load Weight (kg) 90 kg

    *Above parameter only for reference

    1. Could be custom made to user specifications.
    2. Could have solar power control subject to user demand.
    3. Size of the controller by blue meaning wall hanging case.
