| Place of Origin: | China |
| Brand Name: | URILIC |
| Certification: | UL,CE |
| Model Number: | 190W, 195W, 200W, 205W |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood box |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T |
| Supply Ability: | 1000PCS/week |
| Product Name: | Monocrystalline Solar Panel | Power: | 190W, 195W, 200W, 205W |
|---|---|---|---|
| Size: | 1580*808*35mm | Weight: | 16.0kg |
| Max. Overcurrent: | 15A | Material: | Monocrystalline Silicon |
| Oem: | Acceptable | Front Cover: | 3.2mm Thick.low Iron Tempered Glass |
| Highlight: | monocrystalline silicon solar cells,mono silicon solar panels |
||

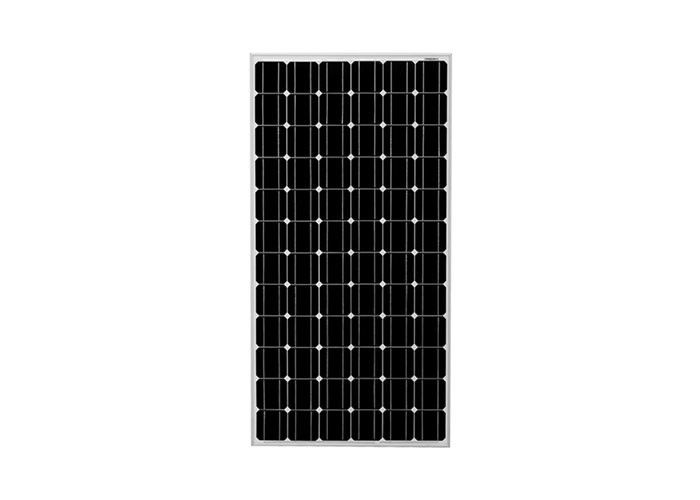

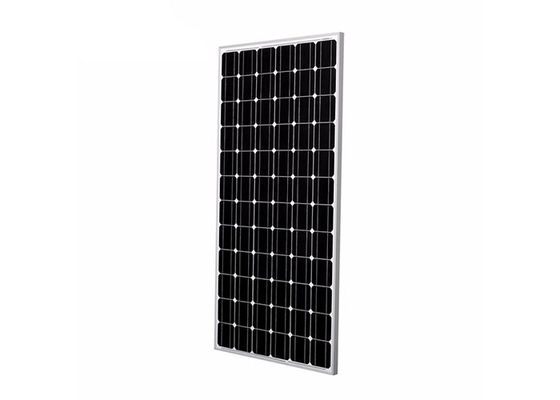

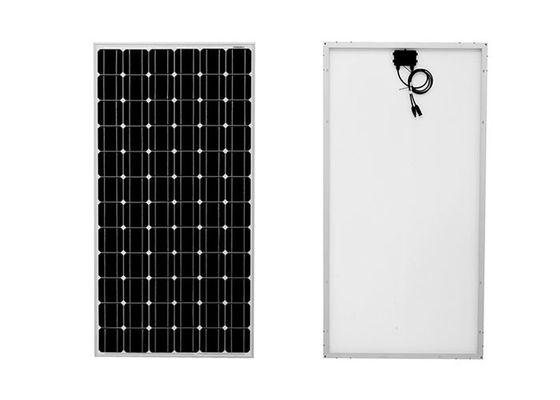

190W-205W-36V Monocrystalline Silicon Solar Panels PV Solar Panels
Description:
The monocrystalline silicon solar panel is a module body in which a single crystal silicon cell is formed in a different string and array. The main advantages of single crystal plates are conversion efficiency and smooth aesthetics. Monocrystalline Solar Panels have been the go-to the choice for many years. They are among the oldest, most efficient and most dependable ways to produce electricity from the sun. Each module is made from a single silicon crystal and it is recognized by their colour, which is typically black or iridescent blue.
Features:
Product Details:
| Model | U190M-12 | U195M-12 | U200M-12 | U205M-12 |
| Peak Power (W) | 190±3% | 195±3% | 200±3% | 205±3% |
| Open circuit voltage (V) | 21.6 | 21.6 | 21.6 | 21.6 |
| Peak Voltage (V) | 18.0 | 18.0 | 18.0 | 18.0 |
| peak current (A) | 10.56 | 10.83 | 11.11 | 11.39 |
| Short-circuit current (A) | 11.40 | 11.70 | 12.00 | 12.30 |
| Cell efficiency | 17.5% | 17.9% | 18.3% | 18.7% |
| Maximum overcurrent (A) | 15A | |||
| Maximum system voltage (V) | 1000V DC | |||
| Rated operating temperature | 48±2°C | |||
| Working temperature range | -40°C- +85°C | |||
| Current temperature coefficient | 0.1%/°C | |||
| Voltage temperature coefficient | -0.37%/°C | |||
| Power Temperature Coefficient | 0.45%/°C | |||
| Solar Cell | 125*125*0.19mm | |||
| Number of cells | 72 pcs | |||
| Size | 1580*808*35mm | |||
| Weight | 16.0 kgs | |||
| Surface Packaging | Low iron tempered glass/3.2mm | |||
| Sealant | Ethylene Vinyl Acetate (EVA) | |||
| Border | Anodized Aluminum/Silver | |||
| Junction Box Waterproof Level | ≥IP65 | |||
| Pre-wind pressure | 2400Pa | |||
| Back wind pressure | 2400Pa | |||
| Maximum hail impact | 25mm/ 23m/s | |||
190W-205W-18V solar panel assembly size chart
Our advantage:
|
|
||
|
Solar Cell High Efficiency PV Cells |
Frame Frame thinkness>18mm Oxidation Film>15Pm TUV&UL standard sillica gel Ability to resist 5400Pa mechanical pressure Good anti-corruption performance in seaside environment |
Solar junction box PPO material, IP67. Heat dissipation Long service life |
|
1. Cell Sorting |
2. Cell Welding |
3. Laminating |
| 4. EL Test | 5. Lamination | 6. Cut Edge |
| 7. Glue the Borders | 8. Framing | 9. Junction Box Fixing |
| 10. Curing | 11. Packaging | 12. Transport |
|
|
|||
|
Solar Wind Hybrid System Street Light |
Solar Wind Hybrid System Monitoring |
Solar Wind Hybrid System Station |
Solar Panels Station |
