Place of Origin: | China |
Brand Name: | URILIC |
Certification: | ISO9001, CE, UL, IEC |
Model Number: | Off Grid Controller |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | Multiple packaging |
Delivery Time: | 5-30 work days |
Payment Terms: | T/T |
Supply Ability: | 500 sets/ month |
Product Name: | Off Grid Solar And Wind Kits | Application: | Power Supply System, Solar Wind Hybrid System |
---|---|---|---|
Power: | 1KW | Voltage: | 12V, 24V, 48V |
Size Of Controller: | 510*360*240 Mm | Weight Of Controller: | 17kg |

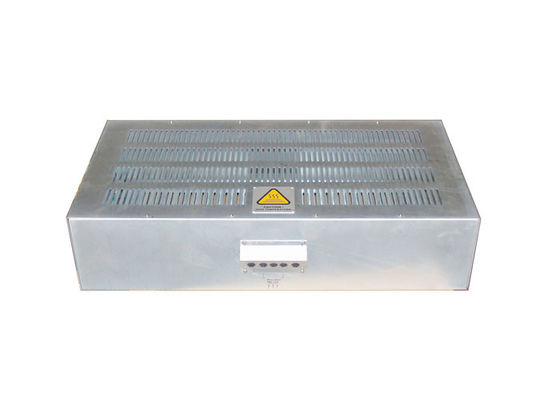

Size Of Dump Load: | 290*250*120 Mm | Weight Of Dump Load: | 5kg |
Highlight: | wind and solar hybrid charge controller,wind solar hybrid system controller |

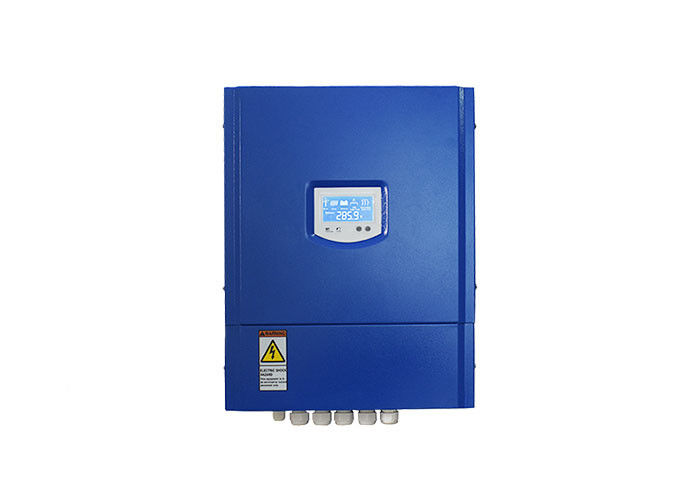

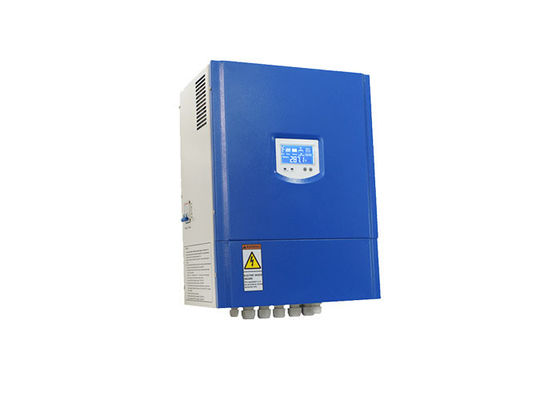

1KW Wind And Solar Charge Controller PWM Solar Charger Controller 12 Volt
1KW PWM Solar Wind Controller product features:
1KW PWM Solar Wind Controller Technical Data:
Type |
1KW-12V |
1KW-24V DC |
1KW-48V DC |
Wind turbine rated power |
1KW |
1KW |
1KW |
Wind turbine max. power |
2kW |
2kW |
2KW |
Solar panel power |
300Wp |
300Wp |
300Wp |
Battery |
12Vdc |
24Vdc |
48Vdc |
Function |
Rectifier, charge, control |
||
Display mode |
LCD |
||
Display content |
Wind turbine voltage, Wind turbine current, Wind turbine power, Solar panel voltage, Solar panel current, Solar panel power, Battery voltage, Charge current |
||
PWM constant pressure voltage |
>14Vdc |
>29Vdc |
>58Vdc |
3-phase load voltage of the wind turbine |
15±1Vdc |
30±1Vdc |
60±1Vdc |
Recovery charging voltage of the wind turbine |
13.5±1Vdc |
27±1Vdc |
54±1Vdc |
Solar controller stop charging voltage |
15±1Vdc |
29±1Vdc |
58±1Vdc |
Solar restore charge voltage |
<14Vdc |
<29Vdc |
<58Vdc |
Low-voltage of the battery |
10±1Vdc |
20±1Vdc |
40±1Vdc |
Self-provided connecting wire of the battery |
>16mm2 |
>8mm2 |
>6mm2 |
PWM fuse |
100A |
63A |
25A |
Solar fuse |
40A |
16A |
10A |
Charging fuse |
125A |
63A |
32A |
Work environment temperature |
-30℃~60℃ |
||
Relative humidity |
<90% No condensation |
||
Noise (1m) |
<40dB |
||
Degree of protection |
IP20(Indoor) |
||
Cooling method |
Forced air cooling |
||
Communication interface (optional) |
RS485/USB/GPRS/Ethernet |
||
Temperature compensation (optional) |
-4mv/℃/2V, -35℃~80℃, Accuracy:±1℃ |
||
Size of the controller (mm) |
510*360*240 |
510*360*240 |
510*360*240 |
Weight of the controller |
17kg |
17kg |
17kg |
Size of the dump load (mm) |
290*250*120 |
290*250*120 |
290*250*120 |
Weight of the dump load |
5kg |
5kg |
5kg |
Controller Application Diagram:
