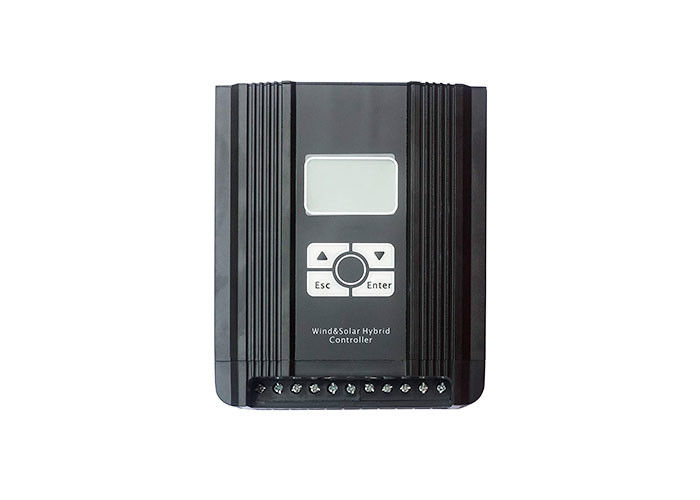

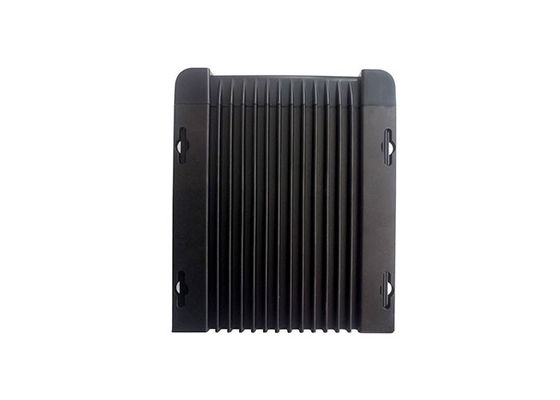

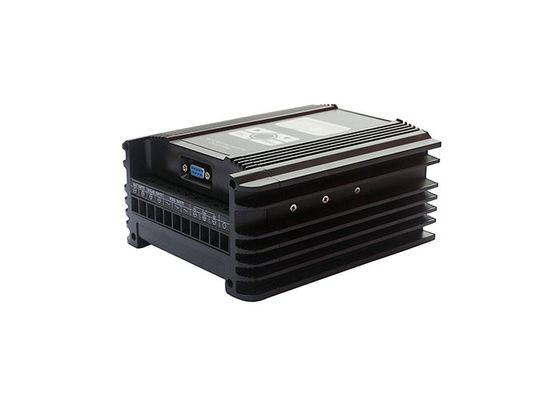

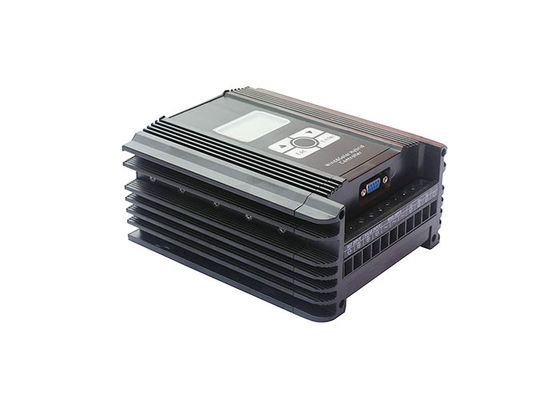

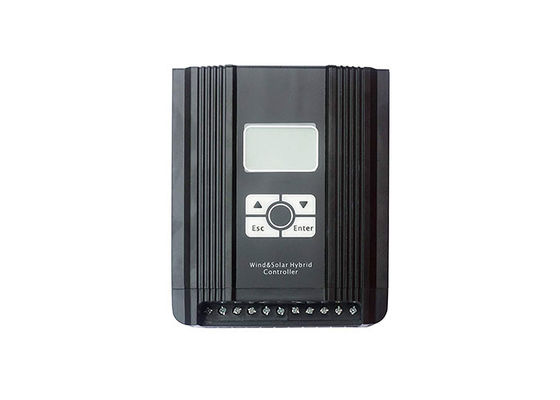

500W Wind And Solar Charge Controller 12V Wind Turbine Mppt Charge Controller

500W Wind And Solar Charge Controller 12V Wind Turbine Mppt Charge Controller

    • 500W  Wind And Solar Charge Controller 12V Wind Turbine Mppt Charge Controller
    • 500W  Wind And Solar Charge Controller 12V Wind Turbine Mppt Charge Controller
    • 500W  Wind And Solar Charge Controller 12V Wind Turbine Mppt Charge Controller
    • 500W  Wind And Solar Charge Controller 12V Wind Turbine Mppt Charge Controller
  • 500W  Wind And Solar Charge Controller 12V Wind Turbine Mppt Charge Controller

    Product Details:

    Place of Origin: China
    Brand Name: URILIC
    Certification: UL,CE,RoHS,ISO9001
    Model Number: 500W

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: Plywood box
    Delivery Time: 5-15 days
    Payment Terms: T/T
    Supply Ability: 1000PCS/week
    Contact Now
    Detailed Product Description
    Product Name: Wind And Solar Hybrid Controller Work Time (h): Could Be Settable
    Size: 175x148x84mm System Voltage: 12V/24V
    Weight: 1.8kg Warranty: 2 Years
    Type: Wind And Solar Charge Controller Application: Solar Wind Hybrid System, Wind And Solar Hybrid Street Light
    High Light:

    wind and solar hybrid charge controller


    wind generator controller

    Wind And Solar Hybrid Controller 500W 12V 24V MPPT Solar Controller Solar Wind System
    The wind and solar hybrid controller has been condensed for many years of application experience (such as waterproof, dustproof, salt spray, operational wiring error, fan wind limit control, energy management, etc.), regardless of the application to charge control, or street light control, each performance is excellent. In order to cooperate with various applications, the controller adopts layering and building block structure. All functions can be combined with different function boards according to the actual application, which is convenient for quick customization and suitable for application.

    Design Features:

    The circuit board has three anti-treatment and layered structure design, even if a small amount of water enters, it will not damage the equipment.


    RS232 Communication
    Standard RS232 communication, easy to monitor with computer software. (RS485, short-range wireless optional), using USB to RS232 components, more convenient to do data communication with the computer (computer with USB interface can be used).


    Easy wiring
    The injection molding process is adopted at the terminal, and the phenomenon of short circuit and wire contact does not occur, making it easier for the customer to operate.


    Battery reversal will automatically alert you
    The battery input end will not be damaged continuously, and there will be a buzzer warning. It avoids damage to the equipment due to wiring errors, fires, and better protects the battery.


    Photovoltaic board reverse connection will automatically alert prompt
    The input end of the photovoltaic panel will not be damaged continuously, and there will be a buzzer warning prompt. Special construction at night will not cause wiring errors (Note: The reverse connection detection at night wiring requires manual button intervention).


    Continuous short-circuit output protection
    The discharge output has continuous short-circuit output protection and over-current protection. Recover yourself after abnormal exclusion. It avoids damage to the equipment due to malfunction of the electrical equipment (especially short circuit) or causes fire.


    Fan steady speed power generation control technology
    The fan steady-speed power generation control method can make the fan not run at super-speed. In strong winds, the fan can control continuous power generation at a set speed to avoid direct braking of the fan due to stall caused by strong wind. Greatly increase the power generation of the fan and keep the fan running normally.


    Wind stall current limiting power generation control technology
    The fan stall limiting current control method can prevent the fan from running under overcurrent and protect the expensive generator from being damaged by the heat generated by the overcurrent.


    Wind turbine input MPPT power generation technology (boost type)
    The wind and solar hybrid controller can provide automatic fan input upper limit power tracking mode, or 5-segment matching curve input configuration mode (input speed vs. input current; or input voltage vs. input current curve), which can greatly reduce the fan’s low wind speed efficiency. Power generation.


    Support for multiple output mode selections
    The controller offers a variety of output modes (light control, time control, morning light, PWM dimming, reverse) for easy application.


    Statistics on cumulative power generation, remaining power, speed, current, temperature, etc.
    The controller screen has conventional fan, photovoltaic, battery, output current, voltage, power display, as well as fan, photovoltaic cumulative power generation display, and battery residual power display, fan speed, unloading current display. The temperature of the controller is displayed.


    The controller wiring terminal is placed with the warning function facing up
    When the controller terminal is placed up, it will be alerted to allow the customer to use it in the correct installation direction, avoiding the use in the open air, or due to weather, the surface of the wire is dew, and the rain directly along the wire, the water is introduced into the controller. The possibility of damaging the controller after a large amount of water has accumulated.


    Product Details:

    Battery parameters

    Applicable battery voltage


    Battery protection method

    Reverse protection (do not burn any parts, have voice prompts);

    Overvoltage protection, undervoltage protection (for streetlight loads)

    Overvoltage protection point voltage


    Overvoltage recovery point voltage


    Undervoltage protection point voltage


    Undervoltage recovery point voltage


    Battery temperature compensation

    5mv/°C/2V (available) (optional)

    Fan input port parameters

    Applicable fan rated power


    Port rated current

    30A dc (after rectification)

    Port maximum input current

    40A dc (after rectification)

    Fan speed limit power generation preset speed

    600 Rpm (can be set)

    Fan current limiting power generation preset current

    30A (can be set)

    Fan protection method

    Overspeed protection, overcurrent protection, inductive lightning protection

    Unloading method

    PWM stepless high frequency soft unloading (built-in)

    MPPT function

    Boost MPPT mode (automatic tracking or 5-band curve tracking)

    MPPT channel input current


    PV input port parameters

    Applicable PV rated power

    270W~550W (standard)

    Port rated input current

    15A (standard)

    Charging voltage drop


    Photovoltaic Protection Method

    Reverse protection (voice reminder)

    Unloading method

    Open unloading

    Discharge output port parameters


    2-way standard output/PWM mode is 1-channel dimming output

    Every output current


    Output protection method

    Overcurrent protection (15A/30 seconds 18A/0.4 seconds), short circuit protection (current > 150A)

    Output control method

    Light control, time control, hold output, reverse output,

    PWM output (250HZ only on the 2nd road)



    Controller internal air temperature monitoring, unloading component temperature monitoring, fan MPPT

    Component temperature monitoring, controller terminal upside down installation inversion monitoring (voice reminder)

    Display mode

    Liquid (LCD) display

    Communication method

    RS232 (5V level), RS485 (standard) / short-range wireless RF (optional)

    Parameters that can be displayed

    Fan input voltage / current / power / power generation / speed / unloading current

    PV input voltage / current / power / power generation
    Battery voltage / charging current / power / total charge / battery status information
    2 output ports output current / power / abnormal information

    Standby power consumption (screen backlight off)

    About 20ma / (12 ~ 24) V system

    How to operate

    3M foil button operation (4 buttons)

    Working temperature and humidity range (environment)

    -40~+80°C/20~85%RH (but no condensation)

    Protection level


    Controller size (length * width * height *)


    Net weight



     Wind and solar hybrid controller 500W 12V
