| Place of Origin: | China |
| Brand Name: | URILIC |
| Certification: | ISO9001,CE,UL |
| Model Number: | 80KW On Grid Solar Power System |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Multiple packaging |
| Delivery Time: | 5-30 work days |
| Payment Terms: | T/T |
| Supply Ability: | 500 sets per month |
| Name: | On Grid Solar Power System | Solar Power: | 80KW |
|---|---|---|---|
| On Grid Inverter: | 30KW (3pcs) | Output Voltage: | 380V |
| Solar Panel: | Monocrystalline 325w-340W Solar Panel | Life: | ≥25 Years |
| Type: | Grid Tied Solar System | Application: | Commercial Solar Power, Building Roof |
| High Light: | on grid and off grid solar system,on grid solar panel kit |
||

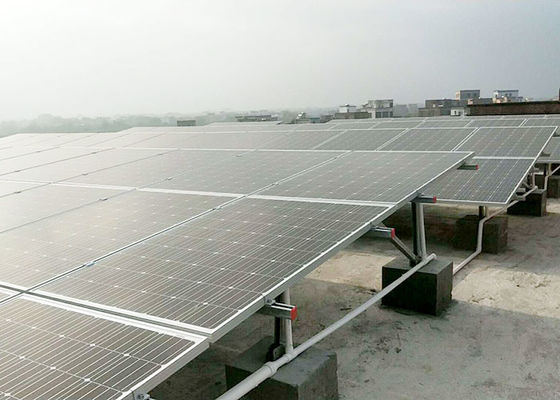

80KW On Grid Solar Power System Public Welfare Poverty Alleviation Project
Description:
On January 22, 2018, the 80KW photovoltaic power generation project of Xuefu Village, Dezhou Town, Gaozhou City was officially put into use after being checked and accepted by the grid. Located in the southwestern part of Guangdong Province, Gaozhou is a subtropical monsoon climate with abundant sunshine and abundant heat. The average annual sunshine is 1945 hours.
The project is jointly funded by the Zhuhai Municipal State Taxation Bureau and the National Poverty Alleviation Fund. It is the first distributed photovoltaic power generation poverty alleviation project in the city of Gaozhou, which is connected to the grid according to the Southern Power Grid policy. It will become the grid of distributed photovoltaic power generation project in Gaozhou City. A model of service.
Boundary towns adhere to the combination of "blood transfusion" and "hematopoietic", to implement the national poverty alleviation policy and precise poverty alleviation as the basic requirements, do a good job in the management of poverty alleviation projects, and ensure that all poor people are lifted out of poverty on schedule.
Since the project was launched, Gaozhou Power Supply Bureau has actively responded to the relevant government and relevant policy requirements, and has opened up a “green channel” for serving solar photovoltaic power generation projects based on the principle of “optimizing grid-connected processes, simplifying grid-connected procedures, and improving service efficiency”.
30KW On Grid Inverter Details:
| Datasheet | 30000TL3-S |
| Input Data | |
| Max recommended PV Power (for module STC) | 37500W |
| Max DC voltage | 1000V |
| Start Voltage | 250V |
| MPPT voltage range | 200V-1000V |
| Nominal voltage | 580V |
| Max. input current | 34A/34A |
| Max. input current per string | 12A |
| Number of MPP trackers / strings per MPP tracker | 2/4 |
| Output (AC) | |
| Rated AC output power | 30kW |
| Max. AC apparent power | 33.3kVA |
| Max. output current | 48.3A |
| AC nominal voltage | 230V/400V |
| AC grid frequency | 50Hz/60Hz |
| Power factor | 0.8 leading - 0.8 lagging |
| THDi | <3% |
| AC grid connection type | 3W+N+PE |
| Efficiency | |
| Max.efficiency | 98.9% |
| Euro - eta | 98.4% |
| MPPT efficiency | 99.5% |
| Protection Devices | |
| DC reverse polarity protection | yes |
| DC Switch | yes |
| DC Surge protection | Type II |
| Ground fault monitoring | yes |
| Output short circuit protection | yes |
| AC Surge protection | Type II |
| String Fuse protection | yes |
| String fault monitoring | yes |
| Anti-PID protection | yes |
| General Data | |
| Dimensions (W / H / D) in mm | 470/754/270 |
| Weight | 48kg |
| Operating temperature range | -25 °C ... +60 °C |
| Noise emission (typical) | C40 dB(A) |
| Altitude | 4000m |
| Self-consumption night | < 1W |
| Topology | Transformerless |
| Cooling concept | Smart cooling |
| Environmental Protection Rating | IP65 |
| Relative humidity | 0~100% |
| Features | |
| Display | Graphic LCD |
| Interfaces: RS232/R485/WiFi/ LAN/GPRS | yes / yes / opt / opt / opt |
| Warranty:5 years / 10 years | yes / opt |
Three Phase Grid Tied Inverter Features:
High Quality Solar Panels Project:
Iron roof, standard factory building, photovoltaic agricultural greenhouse, sun room, canopy, photovoltaic sound insulation wall, solar floor tile.
