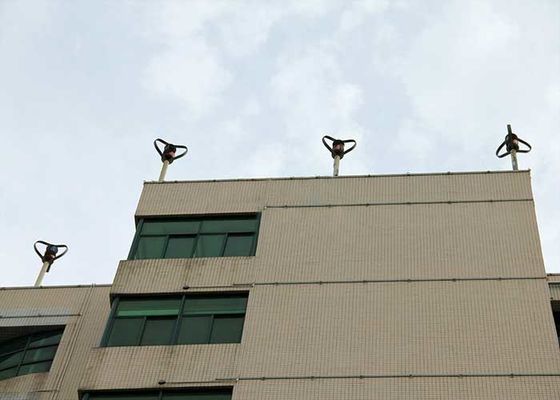

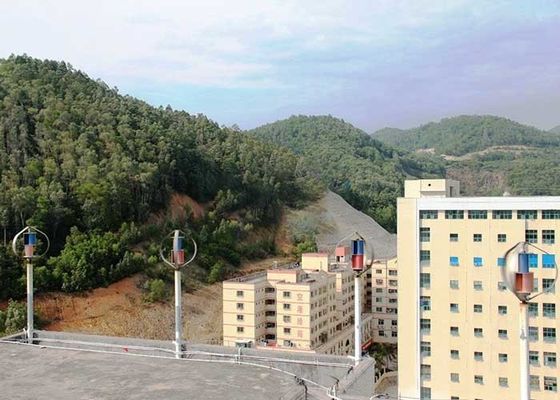

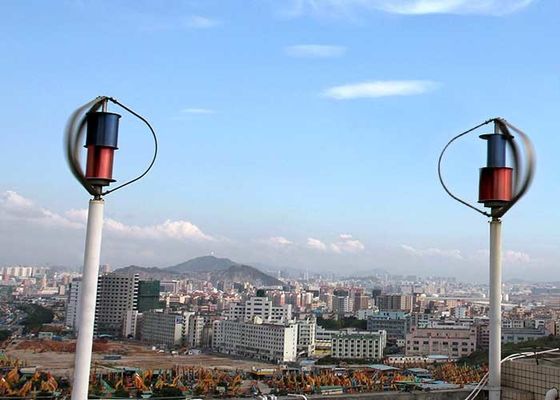

Factory Building Rooftop Wind Turbine And Solar Panel Hybrid System Continuous Power Supply

Factory Building Rooftop Hybrid Solar And Wind Power Generation Electric Systems

System Description:

The factory building rooftop hybrid solar and wind power generation electric systems is especially suitable for house and stable power supply with home equipment with low power load. Since wind energy and solar energy are the most easily available and inexhaustible energy sources, the use of wind and solar hybrid power supply systems in rooftop, urban roads, etc., not only lowers the construction cost than the grid transmission and distribution, but also saves electricity costs. The grid is safer to supply.

Wind-solar complementary independent power supply system is a new type of green renewable power supply. The energy source of wind-solar complementary independent power supply system is solar energy and wind energy in nature. Solar or wind energy systems alone, due to time and geographical constraints, it is difficult to use solar or wind energy resources all day. Solar energy and wind energy have strong complementarity in time and region. When the daytime light is strong, the wind is small, and when the night light is weak, the wind energy is enhanced because of the large variation of surface temperature. The complementarity of solar energy and wind energy in time is the best match of hybrid solar and wind power generation electric systems in resource utilization.

Structural Chart of Hybrid Solar And Wind Power Generation Electric Systems:

1. Wind power generator: using three-phase permanent magnet alternator, high power generation efficiency, low starting wind speed, strong wind self-protection: service life. As long as 15-25 years, usually without maintenance;
2. Photovoltaic module: using single crystal silicon/polycrystalline silicon solar panel A-level sheet, high conversion rate, service life of up to 20-25 years, usually No maintenance required;
3. Wind-Solar Complementary Controller: The controller is one of the core of the whole system. It can stabilize the voltage, control the charge and discharge, protect the overvoltage and undervoltage, etc.
4. Function: Low-voltage charging, automatic control of light-on time;
5. New energy battery: colloid/lead-acid battery, 5-8 years service life, maintenance-free.

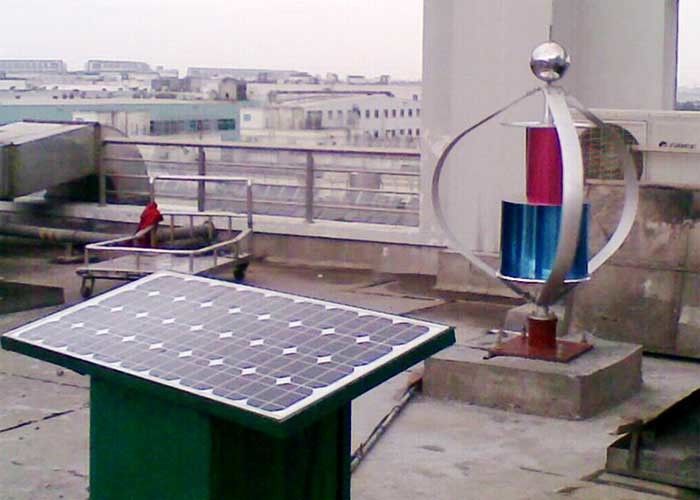

Wind And Solar Hybrid Rooftop Power Supply System Configuration:

Application Notes:

The reasonable configuration of hybrid solar and wind power generation system integrates the respective advantages of wind energy and solar energy, and makes use of hybrid solar and wind power generation system. Wind power is the best matching scheme to realize the two schemes, which can effectively save resources. It can not only ensure the reliability of power supply, but also reduce the cost of power generation system and reduce the cost of power generation. Regardless of the environment and the electricity demand, the hybrid solar and wind power generation system can make the optimal system design scheme to meet the user's requirements. Hybrid solar and wind power generation system has broad application prospects. It has been proved by many years'practical experience in the world that the application direction of hybrid solar and wind power generation system should not be based on grid-connected power generation, but mainly on civil use, such as independent power supply for lighting, communication and monitoring. Lighting will be the development direction of hybrid solar and wind power generation system in urban, rural road lighting system and monitoring system in the future.
