| Place of Origin: | SHENZHEN |
| Brand Name: | URILIC |
| Certification: | ETL, DLC, ENEC, TUV, CE |
| Model Number: | LED Street Light 60W 80W 100W |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton box |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T |
| Supply Ability: | 1000PCS/week |
| Product Name: | LED Street Light | Power: | 60W, 80W, 100W |
|---|---|---|---|
| LEDs Qty.: | 60pcs | Input Voltage: | AC 185-265V |
| Body Material: | Aluminum 6063-T5 | Size: | 520x336x91 Mm |
| Packing Size: | 575x395x150 Mm | Gross Weight: | 5.08 Kg |
| High Light: | high lumen led street light,led street light bulb |
||

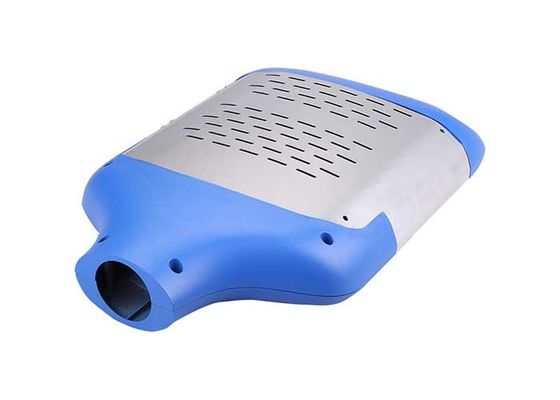

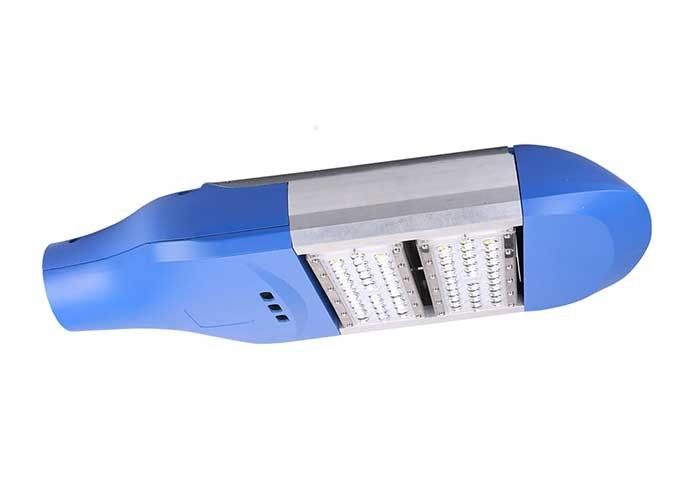

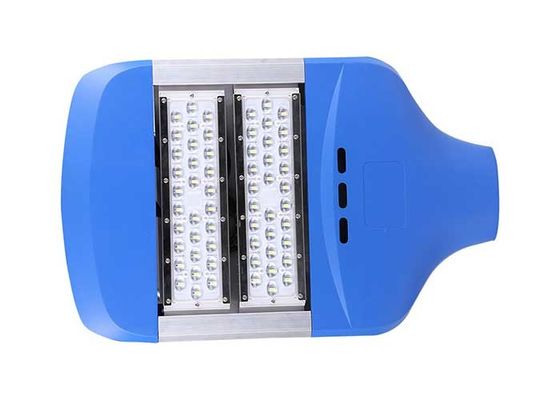

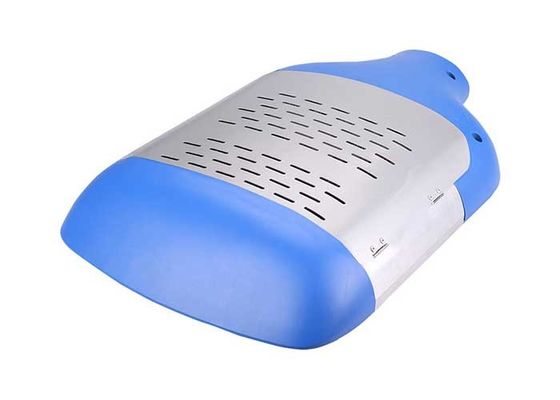

80w LED Street Light Waterproof Led Street Lights for Road Lighting
Description:
LED street light is made of heavy-duty die-cast aluminum with integrated radiator and tempered glass lens. It is made of high-quality materials. The LED street lamp is manufactured in strict accordance with high standards to ensure safe and reliable use. Designed by a professional industrial design team, it can be applied to wind and solar hybrid street lighting systems with high-end, stylish and atmospheric appearance. Automatically judge the weather and reasonably plan the discharge power.
Quick Detail:
Distribution Curve:
Product Details:
| Model | U-L1302-60 | U-L1302-80 | U-L1302-100 |
| Power | 60W | 80W | 100W |
| Light Effects | 132 Lm/W | 126 Lm/W | 120 Lm/W |
| Total luminous flux | 79201 lm | 10080 lm | 12000 lm |
| Color temperature | 5000-5500K | ||
| Color Rendering Index | ≥70 | ||
| Light source brand | Bridgelux | ||
| Number of light sources | 60pcs | ||
| Lighting angle | 150*45°/150*65°/150*70° | ||
| Protection level | IP66 | ||
| Working voltage | 185-265V | ||
| Working environment temperature | -40°C~50°C, 20%~90% H.R | ||
| Storage temperature | -40°C~85°C, 10%~90% H.R. | ||
| Power Efficiency | 93% | ||
| Power factor | >0.95 | ||
| Lighting life | >50000H | ||
| Light pole size | Φ60mm | ||
| Light body material | AL6063-T5 | ||
| Lighting size | 520*336*91 mm (±5mm) | ||
| Package size | 575*395*150 mm (±5mm) | ||
| Light weight of the fixture | 5.08kg (±0.1kg) | ||
Mechanical Drawing:
Installation Diagram:
Applications:
LED Street Light is widely used in urban expressways, highways, trunk roads, secondary roads, access roads, streets, factories, schools, gardens, parks, community, garden plaza and other street lighting.
