| Place of Origin: | China |
| Brand Name: | URILIC |
| Certification: | CQC, TUV, CE, ROHS, ISO9001:2008 |
| Model Number: | 325W, 330W, 335W, 340W |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood box |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T |
| Supply Ability: | 1000PCS/week |
| Product Name: | Monocrystalline Solar Panel | Power: | 325W, 330W, 335W, 340W |
|---|---|---|---|
| Size: | 1956*992*40mm | Solar Cell: | Mono 156*156 Cell |
| Number Of Cells: | 72pcs | Max. Overcurrent: | 15A |
| Type: | Standard Solar Panel | Solar Panel: | Monocrystalline 325w-340W Solar Panel |
| Highlight: | monocrystalline silicon pv panels,mono silicon solar panels |
||

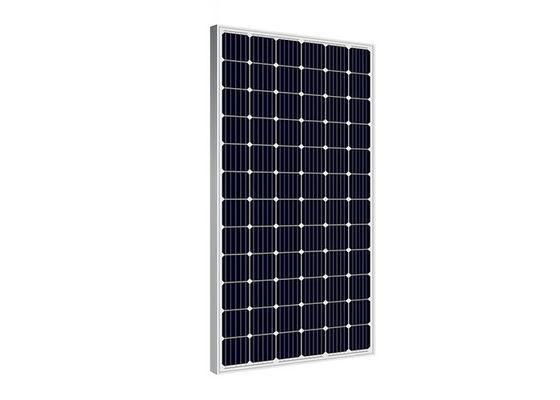

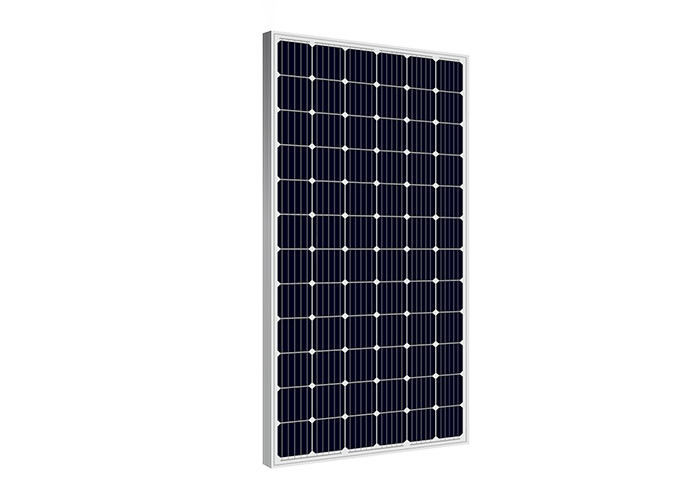

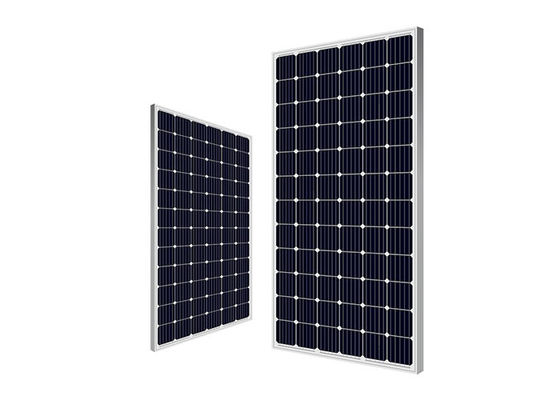

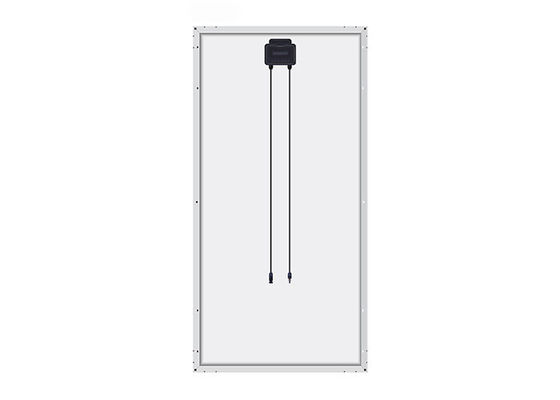

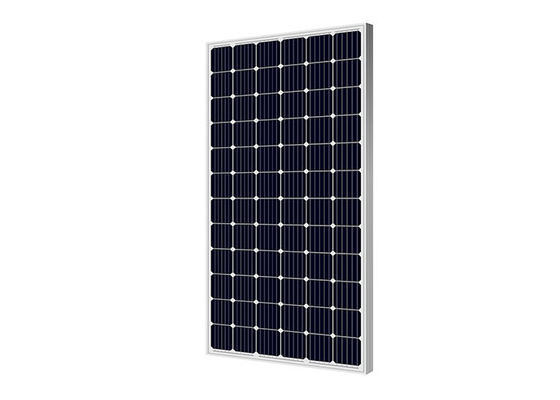

325W-340W-36V Monocrystalline PV Cells High Efficiency Monocrystalline Solar Cells
Description:
The monocrystalline silicon solar panel is a module body in which a single crystal silicon cell is formed in a different string and array. The main advantages of single crystal plates are conversion efficiency and smooth aesthetics. Monocrystalline Solar Panels have been the go-to the choice for many years. They are among the oldest, most efficient and most dependable ways to produce electricity from the sun. Each module is made from a single silicon crystal and it is recognized by their colour, which is typically black or iridescent blue.
Features:
Product Details:
| Model | U325M-24 | U330M-24 | U335M-24 | U340M-24 |
| Peak Power (W) | 325±3% | 330±3% | 335±3% | 340±3% |
| Open circuit voltage (V) | 45.8 | 45.8 | 45.8 | 45.8 |
| Peak Voltage (V) | 37.5 | 37.5 | 37.5 | 37.5 |
| peak current (A) | 8.67 | 8.80 | 8.93 | 9.07 |
| Short-circuit current (A) | 9.27 | 9.41 | 9.56 | 9.70 |
| Cell efficiency | 19.2% | 19.5% | 19.7% | 20.0% |
| Component Efficiency | 16.75% | 17.0% | 17.27% | 17.52% |
| Maximum overcurrent (A) | 15A | |||
| Maximum system voltage (V) | 1000V DC | |||
| Rated operating temperature | 48±2°C | |||
| Working temperature range | -40°C- +85°C | |||
| Current temperature coefficient | 0.1%/°C | |||
| Voltage temperature coefficient | -0.37%/°C | |||
| Power Temperature Coefficient | 0.45%/°C | |||
| Solar Cell | 156*156*0.19mm | |||
| Number of cells | 72 pcs | |||
| Size | 1956*992*40mm | |||
| Weight | 22.5 kgs | |||
| Surface Packaging | Low iron tempered glass/3.2mm | |||
| Sealant | Ethylene Vinyl Acetate (EVA) | |||
| Border | Anodized Aluminum/Silver | |||
| Junction Box Waterproof Level | ≥IP65 | |||
| Pre-wind pressure | 5400Pa | |||
| Back wind pressure | 2400Pa | |||
| Maximum hail impact | 25mm/ 23m/s | |||
325W-340W-36V solar panel assembly size chart
Our advantage:
|
|
||
|
Solar Cell High Efficiency PV Cells |
Frame Frame thinkness>18mm Oxidation Film>15Pm TUV&UL standard sillica gel Ability to resist 5400Pa mechanical pressure Good anti-corruption performance in seaside environment |
Solar junction box PPO material, IP67. Heat dissipation Long service life |
|
1. Cell Sorting |
2. Cell Welding |
3. Laminating |
| 4. EL Test | 5. Lamination | 6. Cut Edge |
| 7. Glue the Borders | 8. Framing | 9. Junction Box Fixing |
| 10. Curing | 11. Packaging | 12. Transport |
|
|
|||
|
Solar Wind Hybrid System Street Light |
Solar Wind Hybrid System Monitoring |
Solar Wind Hybrid System Station |
Solar Panels Station |
