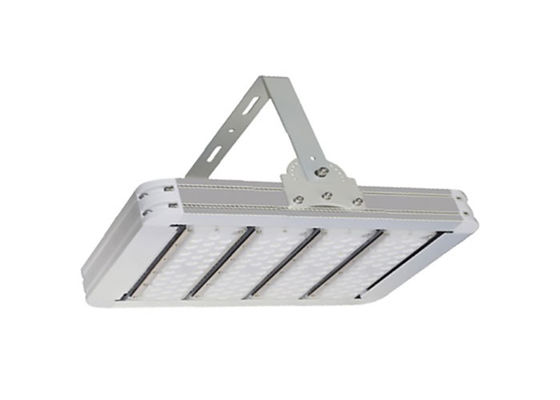

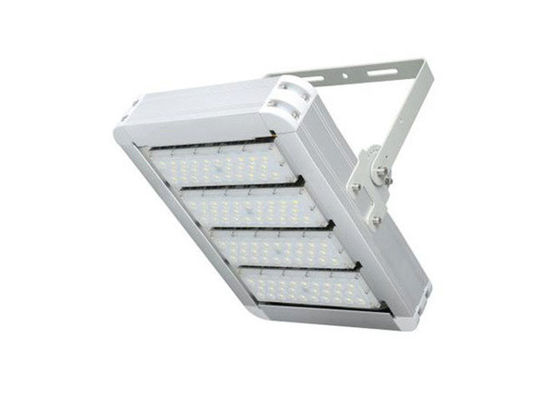

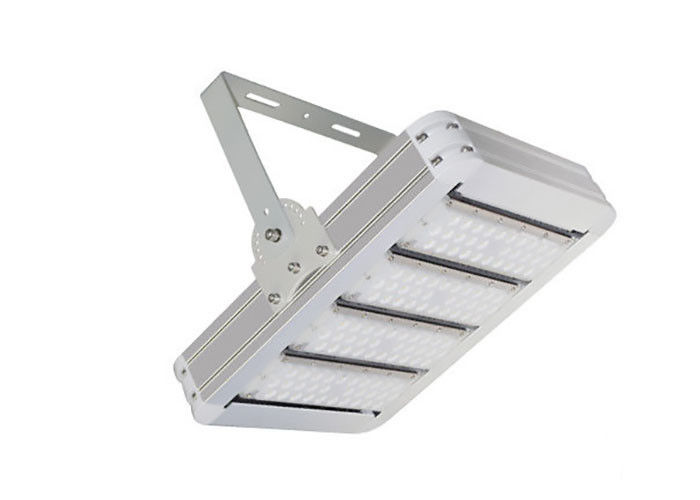

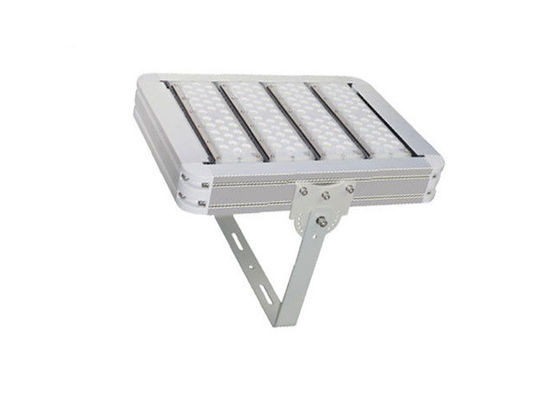

High Lumen Led Sports Arena Lighting 200 W Warm White Tunnel Lamp 31000m

High Lumen Led Sports Arena Lighting 200 W Warm White Tunnel Lamp 31000m

    • High Lumen Led Sports Arena Lighting 200 W Warm White Tunnel Lamp 31000m
    • High Lumen Led Sports Arena Lighting 200 W Warm White Tunnel Lamp 31000m
    • High Lumen Led Sports Arena Lighting 200 W Warm White Tunnel Lamp 31000m
    • High Lumen Led Sports Arena Lighting 200 W Warm White Tunnel Lamp 31000m
  • High Lumen Led Sports Arena Lighting 200 W Warm White Tunnel Lamp 31000m

    Product Details:

    Place of Origin: SHENZHEN
    Brand Name: URILIC
    Certification: ETL, ENEC, TUV, CE, RoHS
    Model Number: FLHB-V4M4-200W

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: Carton box
    Delivery Time: 5-15 days
    Payment Terms: T/T
    Supply Ability: 1000PCS/week
    Contact Now
    Detailed Product Description
    Wattage: 200W Product Type: Outdoor LED Flood Lights
    Light Size: 462*340*144.2mm, ±5mm Net Weight: 9.0kg,±0.1kg
    Leds Qty.: 112pcs Housing Material: AL6063-T5
    Input Voltage: 90V-305V AC Lifespan: 50,000+ Hours
    High Light:

    high power led flood light

    ,

    smd flood light

    200W FLHB-V4M4 High Bay Light Outdoor LED Flood Lights 200W Indoor LED High Bay Light



    Description:

    Use cooling duct design, product overall weight reduction and thermal performance, reduce light decline, and prolong lamp’s lifetime. With popular CHEM modular design, can effectively reduce the maintenance costs later use.Use efficient zero air gap lens technology, achieves zero light loss. It’s 8% higher efficiency than other similar products, and light transmission rate reaches 98%. Durable, long lifetime up to 50,000 hours; No need frequent lamps replacement and regular maintenance. Low-energy, use high efficiency constant current driver, 60% energy-saving; With overcurrent, overvoltage, lightning, high temperature protection to fully guarantee the lifespan and stable performance.



    Mechanical Drawing:

    High Lumen Led Sports Arena Lighting 200 W Warm White Tunnel Lamp 31000m



    Product Details:

    Model

    FLHB-V4M4-200W

    Power

    200W

    CCT

    3000K/4000K/5000K/6000K

    Beam angle

    25°/ 40°/ 60°/ 90°

    Chip brand

    Bridgelux

    Leds qty.

    112pcs

    CRI

    ≥70

    Efficiency

    155-160lm/w

    Lumen

    31000m

    IP IK Rate

    IP66,IK10

    Working voltage

    90-305V

    Working temperature

    -40℃~50℃, 20%~90% H.R

    Storage temperature

    -40℃~85℃, 10%~90% H.R.

    Power efficiency

    93%

    PF

    >0.98

    Lifespan

    50000 Hours

    Housing material

    AL6063-T5

    Light size

    462*340*144.2mm  ±5mm

    Carton size 540*410*225mm ±5mm

    N.W.

    9.0kg  ±0.1kg



    Quick Detail:

    1. Simple and elegant appearance, stylish and classic.
    2. High pressure die cast aluminum alloy housing.
    3. Anti-corrosion with Electrophoresis process.
    4. High performance design with multi-chips Package 5050 LED source and exclusive Lens to stable performance,low light failure and no dead lights.
    5. The light transmittance up to 98%.Luminous efficacy up to 160-170lm/w.
    6. Excellent operating temperature -40°C ~ 50°C
    7. Green product,no UV,IR radiation or mercury pollution Passed IEC62471.
    8. With Excellent housing design reach IP66/IK10 rating.
    9. Installation method is option by wall mounted & pole mounted
    10. 0-10V,DALI system,Microwave motion upon request.
    11. Life-span over 50,000 hours, 5 years warranty.



    Distribution Curve:

    25°,40°,60°,90°,145x100°,150° for option,Uniform light distribution apply to different industrial light project.

    High Lumen Led Sports Arena Lighting 200 W Warm White Tunnel Lamp 31000m



    Applications:

    The 200W FLHB-V4M4 High Bay Light Outdoor LED Flood Lights 200W Indoor LED High Bay Light are suitable for indoor and outdoor applications such as warehouses, tunnel lighting, advertising, gas stations and factory lighting.

    Widely used in bars, clubs, hotels, stages, park, sculpture, square, parking lot, playground, shopping mall, plazas, exhibition hall, commercial buildings facade, mosques, museums, art galleries, historical buildings, factories, gymnasiums, stadium, isles, yard, advertising boards, billboards, buildings, lawns, national green lighting projects.



    High Lumen Led Sports Arena Lighting 200 W Warm White Tunnel Lamp 31000m

    With building facade and public corridor, stair corridor, garden designs and some other indoor and outdoor places where need spot lighting and light decoration,etc
