High Performance Hybrid Solar And Wind Power Generation Household Power Supply

600W Household Power Supply Hybrid Solar And Wind Power Generation System in Italy


Description:

Italy is situated on the northern coast of the Mediterranean Sea in southern Europe. The three seas facing the Mediterranean are the Sea of Adriatic, the Sea of Ionia and the Sea of Tyrannian, and are separated from Tunisia, Malta and Algeria. Most of Italy has a subtropical Mediterranean climate and a plateau-mountainous climate. The climate resources of solar and wind energy are general.

Hybrid solar and wind generation system has strong environmental adaptability. Whether in plateau, mountain area, island or remote area, as long as there is wind and sunlight, and the wind and solar energy resources reach certain conditions, the average annual wind speed is more than 3 meters/second, and the annual solar radiation is 4000MJ/M2. From 5% to 95%, Hybrid solar and wind generation system can be installed to meet users'electricity demand.

Apply to landscape Complementary Street Lighting Areas can be installed on roads, scenic spots and courtyards in urban, suburban and rural areas, hybrid solar and wind power generation street lamp lighting system, hybrid solar and wind power generation heating, hybrid solar and wind power generation charging power supply, hybrid solar and wind power generation camping light and independent power supply.

Design Basis of Power Supply System:

• Utilization of natural energy: Make full use of wind and solar renewable energy to ensure uninterrupted power supply throughout the year.
• Suitable environmental working conditions: temperature - 20 ~50 C, humidity 95%, elevation 10m~5000m;
• Rain and coastal salt fog; total solar radiation 150 kcal/cm 2, annual sunshine 2300 hours.
• Wind power generator: working wind speed 1-30 m/s, safe wind speed: instantaneous limit wind speed 60 m/s;
• Solar photovoltaic panels: wind pressure 60m/s (200kg/m2). Impact Resistance and Hail Resistance
• Lamination of toughened glass for packaging
• The working temperature of the controller is -30 ~50%.
• No EMI: Wind turbines and their charging controllers will not have harmful electromagnetic effects on the surrounding environment (meeting the requirements of 1EC CISRR11).
• Product quality assurance: The design, manufacture and product quality of wind turbines are in accordance with relevant national and industrial standards. The product quality assurance system conforms to GB/T19001-2000 and ISO 9001:2000 standards, and to Q/TM001-2010 standards.
• Solar photovoltaic panels conform to CE and ROSH certification.
• The battery pack meets the requirements of the national standard GB13337.1-91 fixed lead-acid battery, and has passed the test of the testing institution which has obtained the qualification of GB/T15481 certification.
• Stability assurance: It runs smoothly, safely and reliably, and can be used all day without anyone on duty.

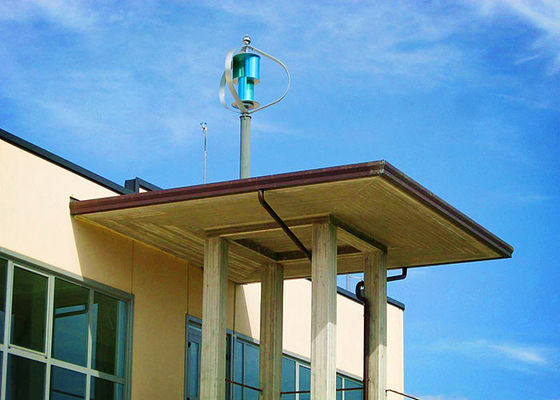

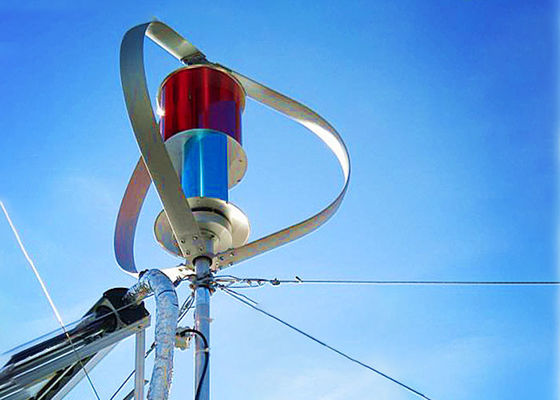

Maglev Vertical Axis Wind Turbine:

Specific requirements of power supply system:

• When the wind and light resources are abundant, the power supply system should ensure uninterrupted power supply for 10 hours (DC12V) all day and night.
• Normal power generation 0.8 KWh-1.3 KWh/24 hours
• In the period of extreme shortage of wind and light resources (including the period of strong wind above 20m/S), the storage battery of the power supply system guarantees the capacity of street lamp for more than 40 hours (more than 4 days) for normal lighting.
