| Place of Origin: | China |
| Brand Name: | URILIC |
| Certification: | ISO9001, CE, UL, IEC |
| Model Number: | Gel Battery Smart Controller |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Multiple packaging |
| Delivery Time: | 5-30 work days |
| Payment Terms: | T/T |
| Supply Ability: | 500 sets/ month |
| Product Name: | Off Grid Solar And Wind Kits | Power Generator: | 600W |
|---|---|---|---|
| GEL Battery: | Lead Acid 100Ah | Smart Controller: | Solar Wind Hybrid Controller |
| LED Lamps: | 20W | Solar Panel: | 80W |
| Safety Class: | Class A | Usage: | Highway Lighting, Riverside |
| High Light: | off grid hybrid power systems,off grid solar wind hybrid system |
||
Gel Battery Smart Controller Off Grid Solar And Wind Kits LED Road Lighting
Description:
Our solar wind hybrid smart controller mainly designed for hybrid street lighting use, the controller can control system operation well. While the Off Grid Solar And Wind Kits installed, you can find it’s a beautiful view for the urban city as well as the following benefits.
DG (Deep Cycle GEL)series is pure GEL battery with 15~20 years floating design life, it is ideal for standby or frequent cyclic discharge applications under extreme environments.By using strong grids, high purity lead and patented Gel electrolyte, the DGseries offers excellent recovery after deep discharge under frequent cyclicdischarge use, and can deliver 400 cycles at 100% DOD. Suitable for solar,CATV, marine, RV and deep discharge UPS,communication , and telecommunication , etc.

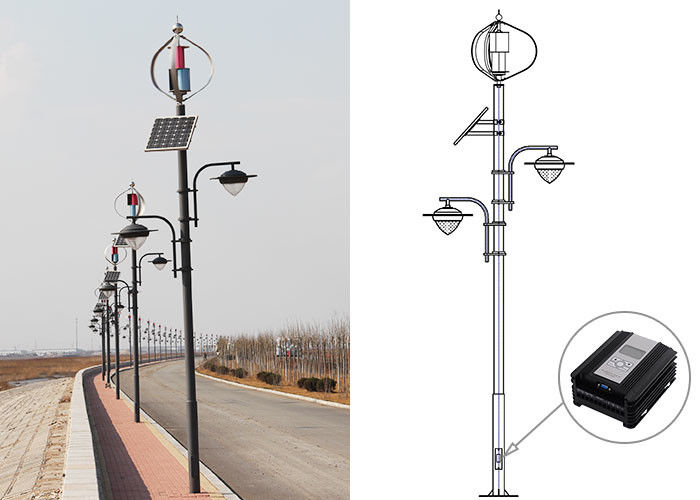

Street Lamp Design Scheme:
12V UDG Gel Battery Parameter:
| Battery Model | Voltage (V) | Capacity (Ah) | Weight (Kg) | Terminals | Dimensions (mm) | Internal resistance | |||
|---|---|---|---|---|---|---|---|---|---|
| Long | wide | High | Total Height | ||||||
| UDG12-26 | 12 | 26 | 8.2 | F3/F13 | 166 | 175 | 125 | 125 | 11 |
| UDG12-30 | 12 | 30 | 10.2 | F7/F11 | 195 | 130 | 159 | 180 | 9.5 |
| UDG12-40 | 12 | 40 | 13.2 | F4/F11 | 198 | 166 | 171 | 171 | 9 |
| UDG12-55 | 12 | 55 | 17.0 | F11/F15 | 229 | 138 | 210 | 235 | 8.6 |
| UDG12-60 | 12 | 60 | 20.5 | F11/F15 | 260 | 169 | 211 | 216 | 8.5 |
| UDG12-65 | 12 | 65 | 21.0 | F15/F11 | 350 | 167 | 180 | 183 | 8 |
| UDG12-70 | 12 | 70 | 22.5 | F5/F11 | 350 | 167 | 180 | 183 | 8 |
| UDG12-70S | 12 | 70 | 21.5 | F5/F11 | 260 | 169 | 211 | 216 | 8 |
| UDG12-75 | 12 | 75 | 23.5 | F11/F15 | 260 | 169 | 211 | 216 | 7 |
| UDG12-75S | 12 | 75 | 22.5 | F5/F11 | 350 | 167 | 180 | 183 | 7 |
| UDG12-80 | 12 | 80 | 25.0 | F11/F15 | 260 | 169 | 211 | 216 | 7 |
| UDG12-85 | 12 | 85 | 26.0 | F11/F15 | 306.5 | 168.5 | 210 | 235 | 6 |
| UDG12-90 | 12 | 90 | 28.5 | F12/F15 | 306.5 | 168.5 | 210 | 235 | 6.5 |
| UDG12-100 | 12 | 100 | 30.0 | F5/F12 | 328 | 172 | 222 | 222 | 7.5 |
| UDG12-120 | 12 | 120 | 35.5 | F5/F12 | 407 | 177 | 225 | 225 | 5.5 |
| UDG12-134 | 12 | 134 | 41.5 | F5/F12 | 340 | 173 | 280 | 285 | 5 |
| UDG12-145 | 12 | 145 | 44.0 | F5/F12 | 340 | 173 | 280 | 285 | 5 |
| UDG12-150 | 12 | 150 | 44.5 | F5/F12 | 483 | 170 | 240 | 240 | 6 |
| UDG12-160 | 12 | 160 | 50.0 | F12/F16 | 530 | 209 | 214 | 219 | 6 |
| UDG12-160S | 12 | 160 | 48.0 | F5/F12 | 483 | 170 | 240 | 240 | 6 |
| UDG12-180 | 12 | 180 | 53.0 | F12/F16 | 530 | 209 | 214 | 219 | 5.5 |
| UDG12-200-F10 | 12 | 200 | 60.0 | F10 | 522 | 240 | 219 | 223 | 5.2 |
| UDG12-200 | 12 | 200 | 60.0 | F16 | 522 | 240 | 219 | 240 | 5.2 |
| UDG12-225 | 12 | 225 | 65.0 | F10 | 522 | 240 | 219 | 223 | 4.8 |
| UDG12-225A | 12 | 225 | 65.0 | F16 | 522 | 240 | 219 | 240 | 4.8 |
| UDG12-230 | 12 | 230 | 67.0 | F12 | 521 | 269 | 204 | 209 | 6 |
| UDG12-260 | 12 | 260 | 74.0 | F14 | 520 | 268 | 203 | 224 | 5 |
| UFT12-55G | 12 | 55 | 18.0 | F11 | 291 | 106 | 230 | 230 | 9 |
| UFT12-90G | 12 | 90 | 26.5 | F6 | 563 | 114 | 188 | 188 | 8.7 |
| UFT12-105G | 12 | 105 | 32.5 | F8/F17 | 508 | 111 | 236 | 236 | 7.5 |
| UFT12-110G | 12 | 110 | 33.0 | F9 | 410 | 109 | 285 | 294 | 7.2 |
| UFT12-150G | 12 | 150 | 43.5 | F9 | 565 | 110 | 288 | 297 | 6 |
| UFT12-160G | 12 | 160 | 49.0 | F9 | 565 | 110 | 288 | 297 | 6 |
| UFT12-180G | 12 | 180 | 52.0 | F19 | 560 | 125 | 316 | 316 | 5 |
|
Battery parameters |
|
|---|---|
|
Applicable battery voltage |
24V |
|
Battery protection method |
Reverse protection (do not burn any parts, have voice prompts);
Overvoltage protection, undervoltage protection (for streetlight loads) |
|
Overvoltage protection point voltage |
29.0V±0.2V |
|
Overvoltage recovery point voltage |
27.5V±0.2V |
|
Undervoltage protection point voltage |
21.0V±0.2V |
|
Undervoltage recovery point voltage |
23.0V±0.2V |
|
Battery temperature compensation |
5mv/°C/2V (available) (optional) |
|
Wind turbine input port parameters |
|
|
Applicable wind turbine rated power |
600W |
|
Port rated current |
30A dc (after rectification) |
|
Port maximum input current |
40A dc (after rectification) |
|
Wind turbine speed limit power generation preset speed |
600 Rpm (can be set) |
|
Wind turbine current limiting power generation preset current |
30A (can be set) |
|
Wind turbine protection method |
Overspeed protection, overcurrent protection, inductive lightning protection |
|
Unloading method |
PWM stepless high frequency soft unloading (built-in) |
|
MPPT function |
Boost MPPT mode (automatic tracking or 5-band curve tracking) |
|
MPPT channel input current |
18A |
|
PV input port parameters |
|
|
Applicable PV rated power |
270W~550W (standard) |
|
Port rated input current |
15A (standard) |
|
Charging voltage drop |
<0.2V |
|
Photovoltaic Protection Method |
Reverse protection (voice reminder) |
|
Unloading method |
Open unloading |
|
Discharge output port parameters |
|
|
Outputs |
2-way standard output/PWM mode is 1-channel dimming output |
|
Every output current |
12A |
|
Output protection method |
Overcurrent protection (15A/30 seconds 18A/0.4 seconds), short circuit protection (current > 150A) |
|
Output control method |
Light control, time control, hold output, reverse output,
PWM output (250HZ only on the 2nd road) |
|
Other |
|
|
Accessibility |
Controller internal air temperature monitoring, unloading component temperature monitoring, fan MPPT
Component temperature monitoring, controller terminal upside down installation inversion monitoring (voice reminder) |
|
Display mode |
Liquid (LCD) display |
|
Communication method |
RS232 (5V level), RS485 (standard) / short-range wireless RF (optional) |
|
Parameters that can be displayed |
Fan input voltage / current / power / power generation / speed / unloading current
PV input voltage / current / power / power generation Battery voltage / charging current / power / total charge / battery status information 2 output ports output current / power / abnormal information |
|
Standby power consumption (screen backlight off) |
About 20ma / (12 ~ 24) V system |
|
How to operate |
3M foil button operation (4 buttons) |
|
Working temperature and humidity range (environment) |
-40~+80°C/20~85%RH (but no condensation) |
|
Protection level |
IP41 |
|
Controller size (length * width * height *) |
175mm*148mm*84mm |
|
Net weight |
1.8KG |

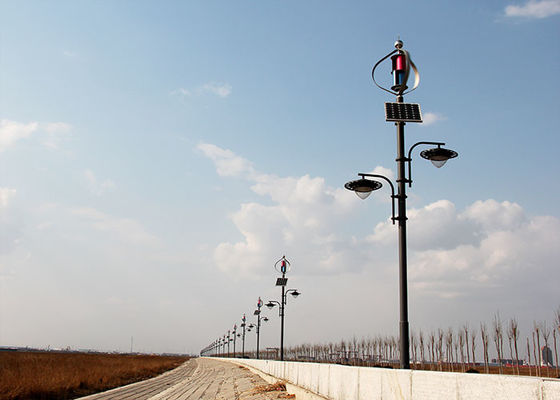

Off Grid Solar And Wind Kits Feature:
Although the investment cost of off grid solar and wind kits LED road lighting is relatively high in the early stage, they do not need to connect electricity to the market, dig cables and slots, and omit the expenditure of frequent replacement of lamps and huge electricity charges. Off grid solar and wind kits LED road lighting is maintenance-free and maintenance-free. The ten-year use price is 38% lower than that of ordinary street lamp, and the longer the use time, the lower the use price. Off grid solar and wind kits LED road lighting provide stable power supply, beautiful shape, add luster to urban roads, is undoubtedly a beautiful landscape. The wide application of off grid solar and wind kits LED road lighting can effectively improve people's awareness of energy conservation and make our life more energy-saving and high-quality.
