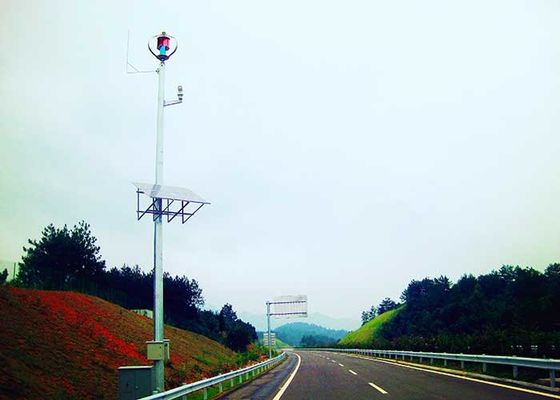

Highway Wind Turbine And Solar Panel Hybrid System Monitoring Power Supply System

Highway Monitoring Power Supply System Solar Wind Hybrid System Hybrid Power System



System Description:

The highway wind and solar hybrid power supply system is especially suitable for remote and stable power supply with monitoring equipment with low power load. Since wind energy and solar energy are the most easily available and inexhaustible energy sources, the use of wind and solar hybrid power supply systems in highways, urban roads, etc., not only lowers the construction cost than the grid transmission and distribution, but also saves electricity costs. The grid is safer to supply.



It is well known that wind and solar energy are the most common natural resources and are inexhaustible renewable energy sources. Solar energy and wind energy are highly complementary in time and geography: when the sun is strongest during the day, the wind is very small. After the sun sets, the light is weak, but the wind energy is strengthened due to the large temperature difference of the surface. In summer, the intensity of the sun is large and the wind is small. In winter, the intensity of the sun is weak and the wind is strong. The complementary solar and wind energy in time makes such a system have the best matching of resources, enabling continuous and stable power generation. Therefore, this is called the wind and solar energy complementary new energy supply system, and it is also the independent independent power supply system with the best resource conditions.





Attention should be paid to the selection of wind and solar hybrid monitoring power supply system:

The choice of wind turbine
The wind turbine is the iconic product of wind and solar hybrid monitoring power supply system. The most important choice for the wind turbine is to make the wind turbine run smoothly.
The pole is a separate pole and is most concerned about the looseness of the fixture of the lampshade and the solar bracket due to vibrations during operation of the wind turbine. Another major factor in choosing a fan is that the shape of the wind turbine is aesthetically pleasing, the weight is light, and the load on the pole is reduced.
The optimal configuration of the power supply system
Guaranteed monitoring time is an important indicator of the monitoring power supply system. As an independent power supply system, wind and solar hybrid monitoring power supply system has an optimal configuration design from the selection of monitoring equipment to the configuration of the capacity of the fan, solar cell and energy storage system. The natural resource conditions of the location to design the optimal capacity configuration of the system.
The strength design of the pole
According to the selected wind and solar cell capacity and installation height requirements, combined with local natural resource conditions, the design of the pole strength should be determined to determine the reasonable pole size and structure.
Selection of monitoring equipment
According to the selected location and the required monitoring range, angle and height, combined with the conditions required, select reasonable monitoring equipment.
Environmental protection and energy conservation are the guarantee for sustainable development of the society. WinPower series of wind and solar hybrid monitoring is a product integrating environmental protection and energy conservation. As the global conventional energy shortage increases, the use of clean and renewable natural energy such as wind and solar energy will It will become popular, and the wind and solar hybrid monitoring system will become the navigation of future road safety.
It is hoped that we can start from the complementary monitoring of wind and solar energy with obvious economic benefits, enhance people's understanding and understanding of new energy, and lay a good foundation for the comprehensive promotion of new energy applications in China.



Wind And Solar Hybrid Monitoring Power Supply System Configuration:

Items	Specification	Quantity (pcs)
Wind Turbine	600W	1
Solar anel	120W12V	2
Wind and Solar Hybrid	600W	1
Lead Acid Batteries	A120Ah 12V	2
Light Pole	Q235	9M
Solar Bracket	Profile Welding Bracket	1
Foundation	Round Steel	1
Battery Buried Box	Adaptation	1
Accessory	Cable	1
