Industrial 48 Volt Wind Turbine Charge Controller / Pwm Mppt Charge Controller

Industrial 48 Volt Wind Turbine Charge Controller / Pwm Mppt Charge Controller

    • Industrial 48 Volt Wind Turbine Charge Controller / Pwm Mppt Charge Controller
    • Industrial 48 Volt Wind Turbine Charge Controller / Pwm Mppt Charge Controller
    • Industrial 48 Volt Wind Turbine Charge Controller / Pwm Mppt Charge Controller
  • Industrial 48 Volt Wind Turbine Charge Controller / Pwm Mppt Charge Controller

    Product Details:

    Place of Origin: China
    Brand Name: URILIC
    Certification: ISO9001, CE, UL, IEC
    Model Number: 3KW 24V, 48V, 96V, 120V, 220V

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Multiple packaging
    Delivery Time: 5-30 work days
    Payment Terms: T/T
    Supply Ability: 500 sets/ month
    Contact Now
    Detailed Product Description
    Product Name: Off Grid Solar And Wind Kits Application: Power Supply System, Solar Wind Hybrid System
    Power: 3KW Voltage: 24V, 48V, 96V, 120V, 220V
    Size Of Controller: 580*400*240mm (24V); 510*360*240 Mm(48-220V,) Size Of Dump Load: 400*410*250 Mm
    Weight Of Controller: 17kg-23kg Weight Of Dump Load: 13kg
    High Light:

    wind and solar hybrid charge controller


    wind generator controller

    3KW Wind And Solar Charge Controller PWM Solar Charger Controller 48 Volt



    3KW PWM Solar Wind Controller product features:

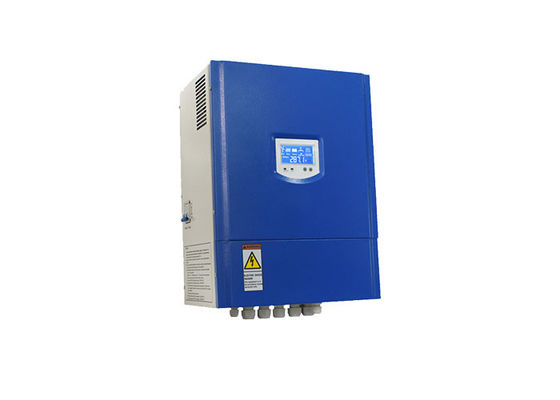

    1. LCD display, the image visually shows the working status. Various data display: real-time fan power, voltage, current; solar panel power, voltage, current; battery voltage, charging current. Historical data can be saved for 30 days in the event of a power outage.
    2. Two sets of control systems: PWM constant voltage system and three-phase load rejection system.
    3. PWM constant voltage control is 120% of the rated power of wind turbines. If the capacity of the PWM is exceeded, the three-phase dump load will start automatically immediately to ensure safe operation of the entire wind turbine system.
    4. Perform PWM control under strong wind or super strong wind conditions to ensure that the wind turbine charges the battery with constant voltage and current.
    5. When the battery is disconnected or damaged, the three-phase self-unloading load will be automatically started to avoid the wind turbine idling and out of control accidents.
    6. Battery protection function: polarity reverse connection, disconnection and damage protection.
    7. battery overcharge protection: When the battery is full (the battery voltage reaches 125% of the rated voltage), the controller will automatically carry out the three-phase self-unloading load to stop charging the battery.
    8. battery automatic charging: When the battery voltage drops to 108% of the rated voltage, stop the three-phase self-unloading load, and automatically charge the battery.

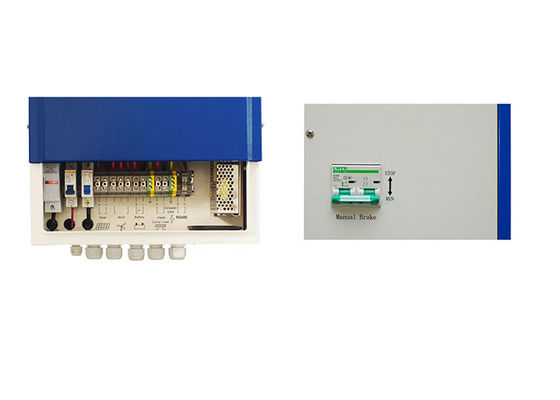

    9. The controller is equipped with a manual three-phase self-unloading load switch. In order to use this switch, the wind turbine will enforce a three-phase dump load.
    10. The controller is equipped with a scalpel holder. The overvoltage is controlled in the wind turbine at a tolerable voltage of the device or system. On the other hand, strong lightning current should be transmitted directly to the ground to avoid damage to the equipment.
    11. The product is produced according to JB / T6939.1-2004 industrial standard and GB / T19115.1-2003 national standard, and has user technical requirements.

    Industrial 48 Volt Wind Turbine Charge Controller / Pwm Mppt Charge Controller

    • The solar panel control system is optional. According to customer requirements.
    • Optional generator port to automatically control the start and stop of the generator.
    •  Adopt Modbus communication protocol. Convenient for secondary development.
    • The technical specifications can be adjusted through RS485 to facilitate professional customers to adjust different fans.
    • For different wind turbines, the controller can be equipped with mechanical yaw, rotary tail control, tail retraction, mechanical brake, hydraulic brake, electromagnetic brake and other braking functions.



    3KW PWM Solar Wind Controller Technical Data:

    Type 3KW-24Vdc 3KW-48Vdc 3KW-96Vdc 3KW-120Vdc 3KW-220Vdc
    Wind turbine rated power 3KW 3KW 3KW 3KW 3KW
    Wind turbine max. power 6KW 6KW 6KW 6KW 6KW
    *Solar panel power 900Wp 900Wp 900Wp 900Wp 900Wp
    Battery 24Vdc 48Vdc 96Vdc 120Vdc 220Vdc
    Function Rectifier,charge, control, *DC output
    Automatic protection function Over voltage protection, constant voltage charge, arrester
    Manual function Manual brake
    Display mode LCD+LED
    Display content Wind turbine voltage, current, power; solar panel voltage, current, power; battery voltage, charge current
    PWM constant pressure voltage >29Vdc >58Vdc >116Vdc >145Vdc >260Vdc
    Wind turbine 3-phase dump load voltage 30±1Vdc 60±1Vdc 120±2Vdc 150±2Vdc 270±2Vdc
    Wind turbine recharge voltage 27±1Vdc 54±1Vdc 108±2Vdc 138±2Vdc 245±2Vdc
    *Solar control stop charging voltage 30±1Vdc 60±1Vdc 120±2Vdc 150±2Vdc 265±2Vdc
    *Solar control recharge voltage 27±1Vdc 54±1Vdc 108±2Vdc 138±2Vdc 245±2Vdc
    *Diesel generator starting voltage 20±1Vdc 40±1Vdc 80±2Vdc 100±2Vdc 180±2Vdc
    *Diesel generator off voltage 27±1Vdc 54±1Vdc 108±2Vdc 135±2Vdc 245±2Vdc
    Self-provided battery connecting wire >30mm2 >12mm2 >6mm2 >4mm2 >2.5mm2
    PWM fuse 160A 80A 40A 32A 16A
    *Solar fuse 50A 25A 12A 10A 6A
    Charging fuse 190 A 125A 63A 50A 25A
    Work environment temperature -30-60°C
    Relative humidity <90% No condensation
    Noise (1m) <40dB
    Degree of protection IP20 (Indoor) IP65 (Outdoors)
    Cooling method Forced air cooling
    *Extral Control function (optional) Yawing variable pitch, mechanical brake, hydraulic brake, electromagnetism brake
    *Com mun icatio n in terface (optional) RS485/USB/GPRS/WIFI/Ethernet
    *Temperature compensation (optional) -4mv/°C/2V,-35oC-+80oC,Accuracy:±1°C
    Controller Size (mm) 580*400*240 510*360*240 510*360*240 510*360*240 510*360*240
    Controller Size (mm) Weight (kg) 23Kg 18Kg 17Kg 17Kg 17Kg

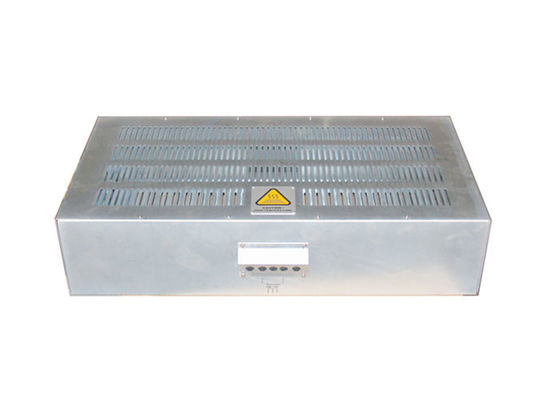

    Dump load Size (mm) 400*410*250 400*410*250 400*410*250 400*410*250 400*410*250
    Dump load Size (mm) Weight (kg) 13Kg 13Kg 13Kg 13Kg 13Kg

    *Above parameter only for reference. Could be custom made to user specifications.
