Industrial Safety Hybrid Solar Wind Power Generation System Wind Turbine Generator Vertical Axis

Industrial Part Street Lamp Hybrid Solar And Wind Power Generation Highway Lighting

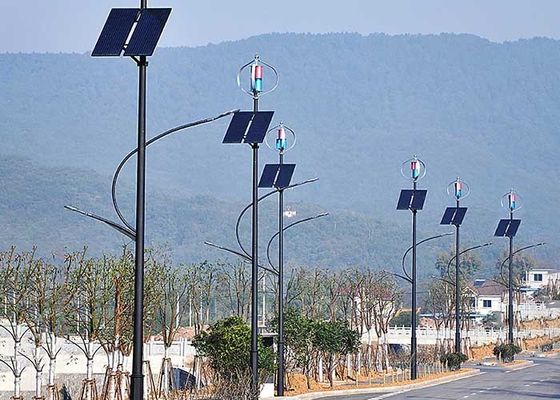

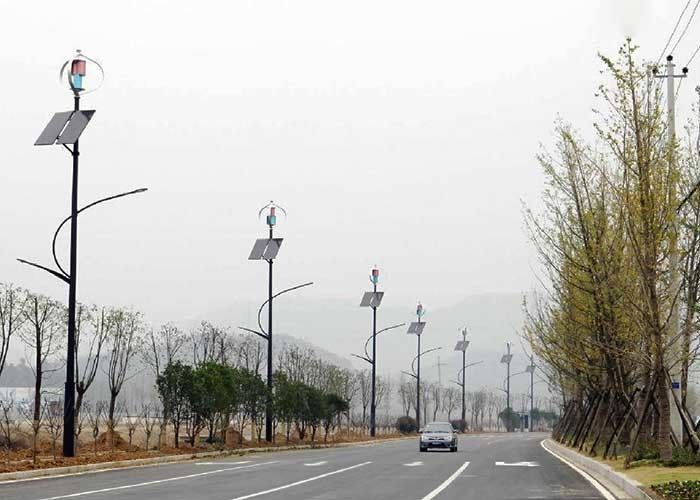

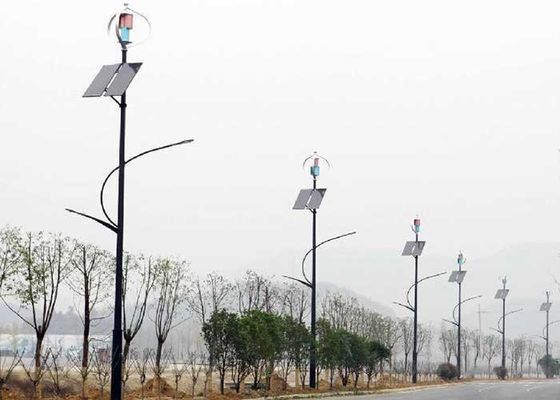

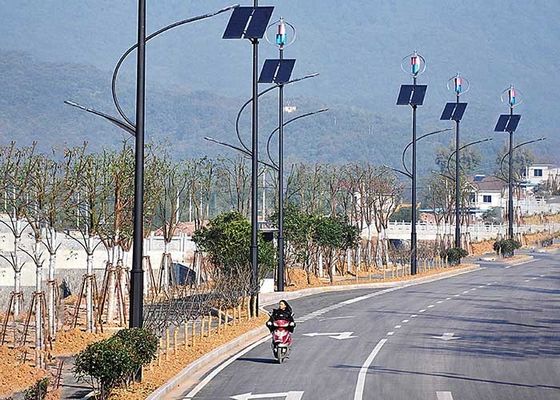

The Street Lamp Hybrid Solar And Wind Power Generation system consists of small wind turbines, solar photovoltaic panels, wind and solar hybrid controller, maintenance-free colloidal batteries, lighting fixtures and outdoor off-grid road power supply and lighting systems for installation and fixing of lamp poles, lamp arms and installation accessories. Where the average annual wind speed exceeds 3.0 m/s, the total solar radiation is not less than 3200. MJ/Landscape Complementary Street Lighting Areas can be installed on roads, scenic spots and courtyards in urban, suburban and rural areas.

Such as hybrid solar and wind power generation street lamp lighting system, hybrid solar and wind power generation heating, hybrid solar and wind power generation charging power supply, hybrid solar and wind power generation camping light and independent power supply, among which the hybrid solar and wind power generation lighting system does not need to dig trenches and bury wires, does not need power transmission and transformation equipment, does not consume municipal electricity, installs arbitrarily, has low maintenance costs, low voltage without electric shock danger, uses is. Clean and renewable energy should represent the future development direction of urban and rural road lighting.

Design Basis of Power Supply System:

1. Utilization of natural energy: Make full use of wind and solar renewable energy to ensure uninterrupted power supply throughout the year.
2. Suitable environmental working conditions: temperature - 20 ~50 C, humidity 95%, elevation 10m~5000m;
3. Rain and coastal salt fog; total solar radiation 150 kcal/cm 2, annual sunshine 2300 hours.
4. Wind power generator: working wind speed 1-30 m/s, safe wind speed: instantaneous limit wind speed 60 m/s;
5. Solar photovoltaic panels: wind pressure 60m/s (200kg/m2)
6. Impact Resistance and Hail Resistance
7. Lamination of toughened glass for packaging
8. The working temperature of the controller is -30 ~50%.
9. Stability assurance: It runs smoothly, safely and reliably, and can be used all day without anyone on duty.
10. No EMI: Wind turbines and their charging controllers will not have harmful electromagnetic effects on the surrounding environment (meeting the requirements of 1EC CISRR11).
11. Product quality assurance:
12. The design, manufacture and product quality of wind turbines are in accordance with relevant national and industrial standards. The product quality assurance system conforms to GB/T19001-2000 and ISO 9001:2000 standards, and to Q/TM001-2010 standards.
13. Solar photovoltaic panels conform to CE and ROSH certification.
14. The battery pack meets the requirements of the national standard GB13337.1-91 fixed lead-acid battery, and has passed the test of the testing institution which has obtained the qualification of GB/T15481 certification.

Maglev Vertical Axis Wind Turbine:

Vertical Axis Wind turbine:

1. The application of magnetic suspension technology makes the fan turn smoothly and efficiently without any mechanical friction.
2. The blade is made of high strength light aluminium alloy with hollow drawing, streamlined design, smooth rotation and no noise.
3. Low starting wind speed, good typhoon resistance, anti-corrosion and sand resistance.
4. Vertical axis design, beautiful shape, soft color, easy identification of birds.
5. The spherical lightning protection equipment can effectively prevent natural lightning. The lightning protection standard meets the National Lightning Protection Standard of China GB50057-94.
6. Low voltage 12V DC output, no electric shock danger.
7. The service life exceeds 20 years.
