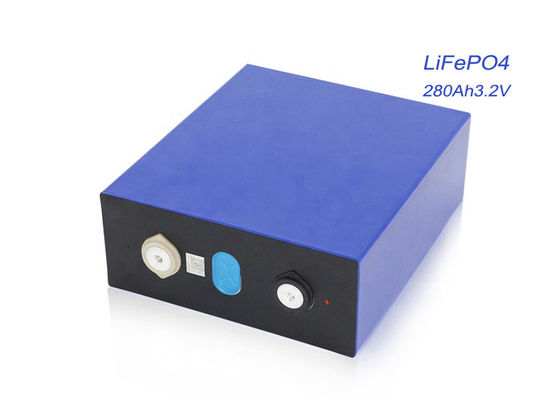

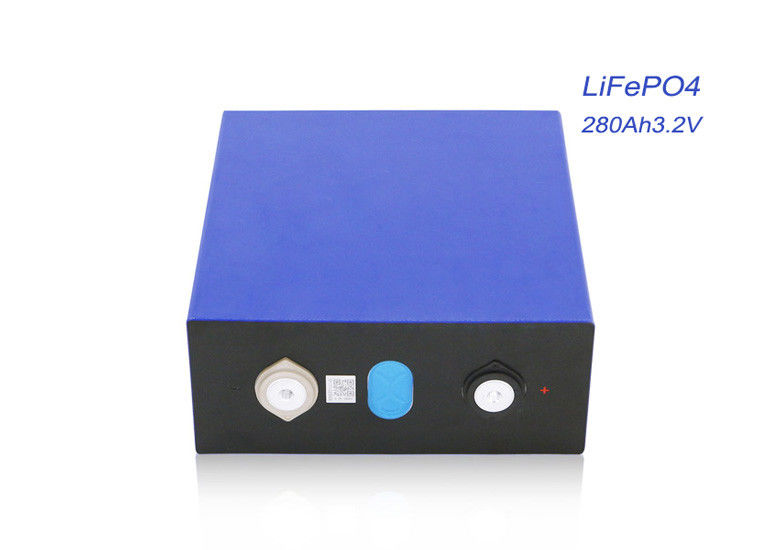

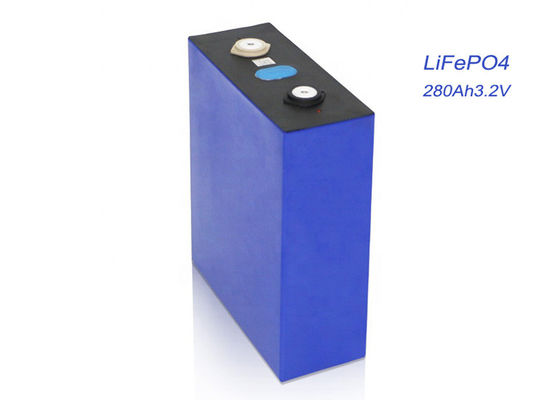

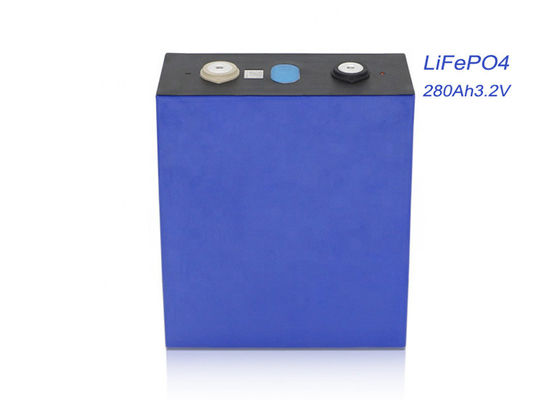

LiFePO4 Battery Cells 280Ah 3.2V Rechargeable Batteries for Electric Vehicles

LiFePO4 Battery Cells 280Ah 3.2V Rechargeable Batteries for Electric Vehicles

    • LiFePO4 Battery Cells 280Ah 3.2V Rechargeable Batteries for Electric Vehicles
    • LiFePO4 Battery Cells 280Ah 3.2V Rechargeable Batteries for Electric Vehicles
    • LiFePO4 Battery Cells 280Ah 3.2V Rechargeable Batteries for Electric Vehicles
    • LiFePO4 Battery Cells 280Ah 3.2V Rechargeable Batteries for Electric Vehicles
  • LiFePO4 Battery Cells 280Ah 3.2V Rechargeable Batteries for Electric Vehicles

    Product Details:

    Place of Origin: China
    Brand Name: URILIC
    Certification: CE/RoHS/UN38.3/MSDS/UL
    Model Number: LiFePO4-280Ah3.2V

    Payment & Shipping Terms:

    Minimum Order Quantity: 50 pcs
    Price: Negotiation
    Packaging Details: Plywood box
    Delivery Time: 5-10 days
    Payment Terms: T/T
    Supply Ability: 100000 PCS/day
    Contact Now
    Detailed Product Description
    Product Name: LiFePO4 Battery Name: LiFePO4-280Ah3.2V
    Nominal Capacity: 280 Ah Nominal Voltage: 3.2V
    Size: 200(195)*173*72 Mm Weight: 5.22 Kg
    Cycle Life: 3500 Times Charging Time: Fast Charge

    LiFePO4 Battery Cells 280Ah 3.2V Rechargeable Batteries for Electric Vehicles



    High-power LiFePO4 (lithium iron phosphate) batteries for electric vehicles and energy storage systems, with the capacity of LiFePO4 batteries, with excellent performance, high stability and long life. The battery can be widely used in energy storage systems, EV, UPS, etc.



    3.2V 280Ah continuous 3C discharge The square lithium iron phosphate battery is an aluminum shell battery with good heat dissipation performance, which is a good choice for equipment with temperature control system. 3.2V 280Ah continuous 3C discharge The positive and negative poles of the square lithium iron phosphate battery are designed with screw holes, which is very convenient for assembly and disassembly, eliminating many inconveniences in assembly and disassembly, improving efficiency and saving time.



    Dimensions:

    LiFePO4 Battery Cells 280Ah 3.2V Rechargeable Batteries for Electric Vehicles



    Parameters:



    Typical Capacity
    280Ah
    Typical Voltage
    3.2V
    AC Impedance Resistance
    ≤0.25mΩ
    Standard charge and discharge Charge/Discharge Current
    0.5C/0.5C
    Standard charge and discharge Charge/Discharge Cut-off Voltage
    3.65V/2.5V
    Continuous Charge/Discharge Current
    1C/1C
    Pulse Charge/Discharge Ccurrent(30s)
    2C/2C
    Recommended SOC window
    10%~90%
    Charging Working Temperature
    0℃~55℃
    Discharging Working Temperature
    -20℃~55℃



    Battery packing diagram:

    LiFePO4 Battery Cells 280Ah 3.2V Rechargeable Batteries for Electric Vehicles



    Key Features:

    1. The battery pack is safe, high temperature resistant, and has a long cycle life.
    2. Intelligent factory design, high performance consistency;
    3. Square aluminum shell structure, and high-precision explosion-proof valve, high safety performance;
    4. Low internal resistance, high discharge rate and stable discharge platform;
    5. Design and customize according to customer requirements;
    6. Long cycle life, the capacity retention ratio exceeds 80% after 3500 cycle at 1C/1C;
    7. Green, the product conforms to GB, UN and ROHS directive.



    Applications:

    Electric Vehicle, Communications, Telecom Tower Energy storage, Intelligent network ,ESS

    LiFePO4 Battery Cells 280Ah 3.2V Rechargeable Batteries for Electric Vehicles



    Transportation:
    Battery for shipping should be packed in boxes with the condition of half charged (30%~50%SOC). The Violent vibration, impact extrusion, sun and rain should be prevented during shipping. The battery is suitable for cars, trains, ships, aircraft and other transportation vehicles.



    Precautions:

    1. When charging and discharging the battery, ensure that the battery voltage, current and temperature are monitored and protected.
    2. Keep the battery away from heat sources, fire sources, and other corrosive environments such as heat and strong acids and alkalis.
    3. Do not short the battery or install it with incorrect polarity at any time
    4. Do not mix batteries of different models or different manufacturers.
    5. Do not use external force to drop, impact or puncture the battery, do not disassemble the battery or change the external structure
    6. When the battery is not used for a long time, please keep the battery charge at 30% ~ 50% SOC, and avoid direct sunlight or high temperature and high humidity environment.
    7. When operating the battery, you need to wear protective equipment such as rubber gloves
    8. If the battery leaks, smokes or is damaged, please stop using it immediately and contact us.
