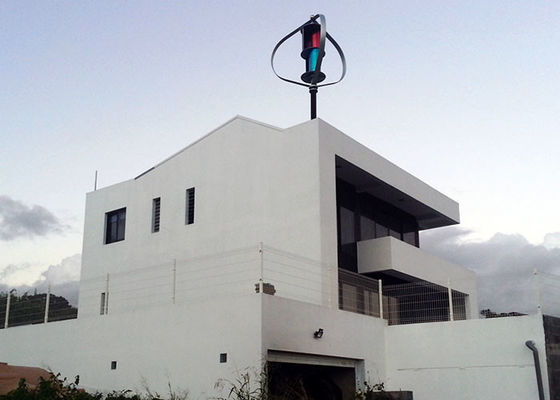

Residential Power Supply Solar Wind Hybrid System Hybrid Solar PV System In Reunion

System Description:

The residential power supply solar wind hybrid system is especially suitable for house and stable power supply with home equipment with low power load. Since wind energy and solar energy are the most easily available and inexhaustible energy sources, the use of wind and solar hybrid power supply systems in rooftop, urban roads, etc., not only lowers the construction cost than the grid transmission and distribution, but also saves electricity costs.

Due to the strong complementarity between solar energy and wind energy, solar wind hybrid system power supply system makes up for the discontinuous unbalance and instability between wind energy and solar energy independent system. The system capacity can be reasonably configured according to the user's electricity load and resource conditions. It can not only guarantee the power supply reliability of wind-solar complementary system, but also reduce the cost of power generation system.

Design philosophy and direction:

1. Use renewable wind and light energy complementary systems to generate electricity.
2. Distributed low-voltage mains grid-connected power generation mode is adopted, no transformer is installed.
3. 100% energy saving rate.
4. Zero carbon emission.
5. The system can combat the effects of tropical cyclones (typhoons).

6. Completely using wind and solar energy to generate electricity without external power supply.

7. With night and day complementary, seasonal complementary characteristics, the system is stable and reliable, cost-effective.

8. Independent power supply, in the event of natural disasters will not affect the power consumption of all users.

9. Low voltage power supply, safe operation, simple maintenance.

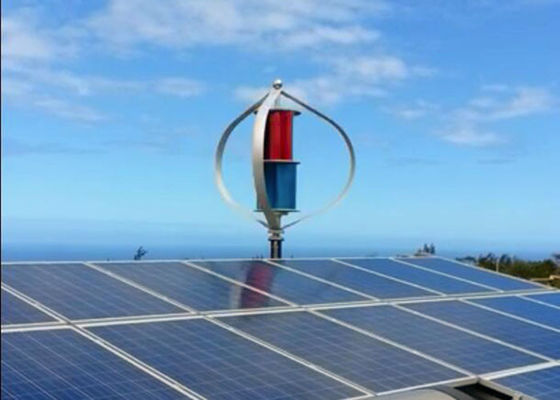

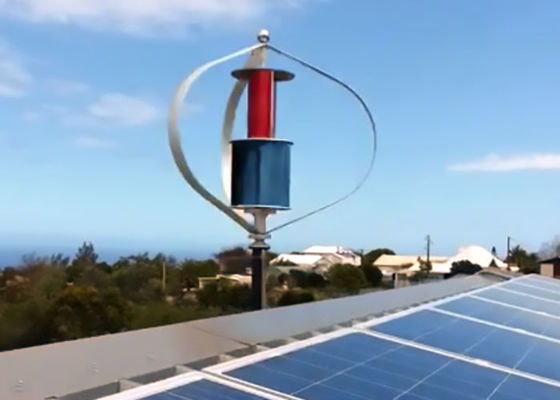

Wind Turbine of Hybrid Residential Power Supply System Configuration:

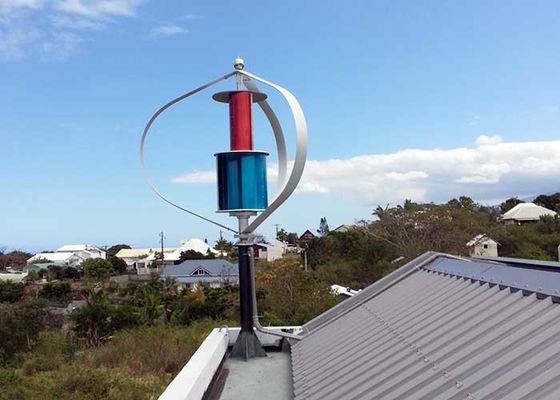

Maglev Vertical Axis Wind Turbine:

Maglev Vertical Axis Wind Turbine is a breakthrough in wind power technology. It's URILIC apply maglev technology used in wind turbine. This creates a milestone and fulfills important breakthrough in the history of small and medium wind turbine development. The maglev technology improves the efficiency of wind power 35% compared to traditional horizontal axis wind turbine.

Solar panel

High efficiency monocrystalline solar power panel. Outstanding low-light performance. High transmission tempered glass ensure high quaility solar panel. Solar cells solar panel with durable anodized aluminum frame. Efficient protection from frame deformation and water accumulation. Rugged design to withstand high wind pressure and snow load, easy installation.


Wind And Solar Hybrid Controller:

Intelligent control system has automatic protective functions to lower rotational speed in case of so strong wind as hurricane. Real-time remote monitoring system can monitor and acquire data and equipment performance.
