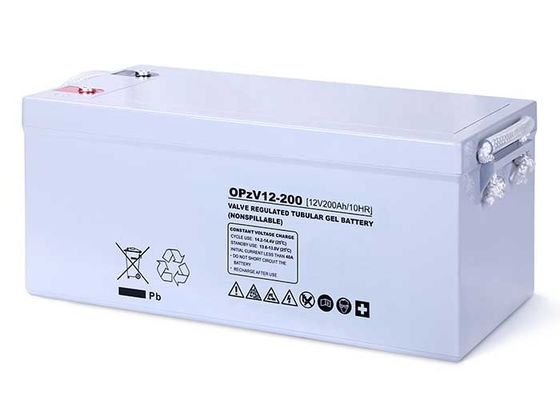

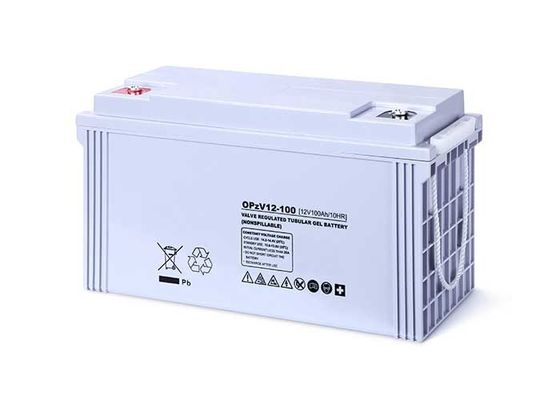

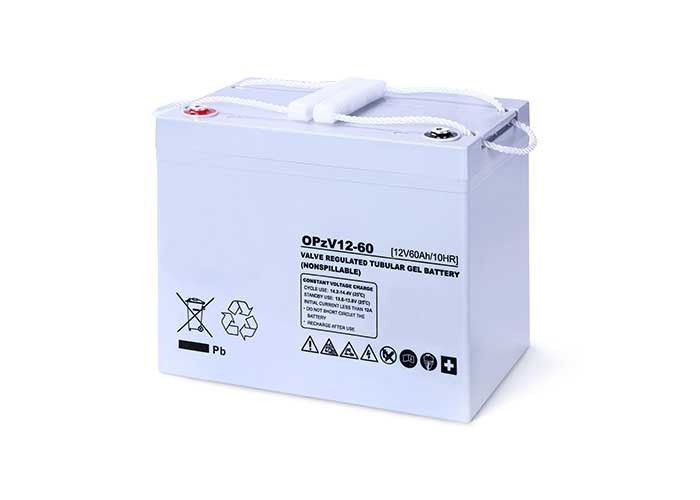

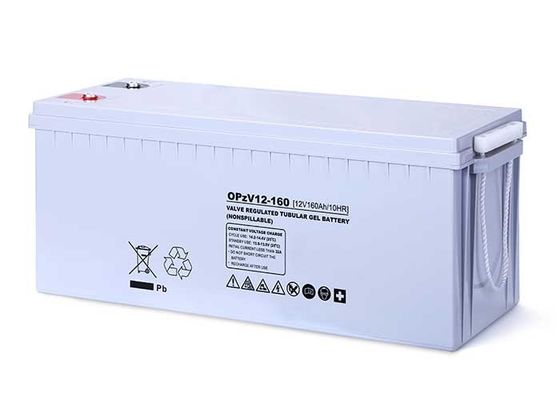

OPzV Tubular GEL Lead Acid Battery 12v 45Ah - 200Ah Low Self - Discharge

OPzV Tubular GEL Lead Acid Battery 12v 45Ah - 200Ah Low Self - Discharge

    • OPzV Tubular GEL Lead Acid Battery 12v 45Ah - 200Ah  Low Self - Discharge
    • OPzV Tubular GEL Lead Acid Battery 12v 45Ah - 200Ah  Low Self - Discharge
    • OPzV Tubular GEL Lead Acid Battery 12v 45Ah - 200Ah  Low Self - Discharge
    • OPzV Tubular GEL Lead Acid Battery 12v 45Ah - 200Ah  Low Self - Discharge
  • OPzV Tubular GEL Lead Acid Battery 12v 45Ah - 200Ah  Low Self - Discharge

    Product Details:

    Place of Origin: China
    Brand Name: URILIC
    Certification: CE,UL
    Model Number: OPzV-12V (45Ah-200Ah)

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiation
    Packaging Details: Plywood box
    Delivery Time: 5-15 days
    Payment Terms: T/T
    Supply Ability: 1000PCS/week
    Contact Now
    Detailed Product Description
    Product Name: Lead Acid Battery Capacity: 45Ah-200Ah
    Voltage: 12V Brand NameType: URILIC
    Long Life: Low Self-discharge Battery Type: OPzV Tubular GEL Lead Acid Battery
    High Light:

    valve regulated lead acid battery

    ,

    deep cycle lead acid battery

    12V 45Ah-200Ah OPzV Tubular GEL Lead Acid Battery Lead Acid Rechargeable Battery 12v

    Description:
    OPzV series is a Valve Regulated Lead Acid battery that adopts immobilized GEL and Tubular Plate technology to offer high reliability and performance. The Battery is designed and manufactured according to DIN standards and with die-casting positive grid and patent formula of active material. OPzV series exceeds DIN standard values with more than 20 years floating design life at 25℃ and is even more suitable for cyclic use under extreme operating conditions.

    Technical Features:
    Positive plate: The powerful tube plate is made of lead-calcium-tin alloy, which is optimized for high corrosion resistance, providing an extremely high cycle life;
    The negative electrode grid structure comprises: a lead calcium alloy;
    Separator: microporous and powerful polyvinyl chloride silica separator, aligned positive and negative plates and optimized for low internal resistance;
    Container: ABS (ul94-hb) combustion performance, ul94-v1 available on request;
    Terminal poles: easy and safe assembly and maintenance with excellent electrical conductivity and free connection;
    Valve: Releases the gas-protected atmosphere in the case of overpressure, reasonable opening and closing valve pressure, high performance and reliability.



    Product Details:

    Battery Model Voltage (V) Capacity (Ah) Weight (Kg) Terminals Dimensions (mm) Internal resistance
    Long wide High Total Height
    OPzV12-45 12 45 18.0 F11 260 169 211 216 19
    OPzV12-60 12 60 23.0 F11 260 169 211 216 15
    OPzV12-80 12 80 30.0 F12 328 172 222 222 10.0
    OPzV12-100 12 100 36.0 F12 407 177 225 225 8
    OPzV12-120 12 120 45.9 F12 483 170 240 240 7.5
    OPzV12-140 12 140 53.5 F12 530 209 214 219 7
    OPzV12-160 12 160 57.0 F12 530 209 214 219 6.5
    OPzV12-180 12 180 66.5 F10 522 240 219 240 6
    OPzV12-200 12 200 73.0 F14 520 268 220 225 5


    Lead Acid Battery Terminal Size Chart (PDF)


    Design Features

    • Designed especially for frequent cyclic discharges.
    • Special grid alloy.
    • Excellent plate formula.
    • Achieve more than 300 cycles under 100% DOD conditions.
    • Applicable to wind and solar hybrid systems, solar systems, wind energy systems, UPS, electric vehicles, golf carts, electricity.
    • communications, etc.


    Applications:
    Solar wind hybrid system, UPS battery backup, Wind and solar energy system, Signal system , emergency lighting system, security system, Telecommunication Equipment, Power station and plant room.

    OPzV Tubular GEL Lead Acid Battery 12V

    Our advantage:

    1. No memory, no need to discharge battery use, suitable for circuit design;
    2. By high partition, adsorption and strong;
    3. The battery is full of power when it's out of factory, no need to use liquid charge;
    4. Comply with environmental requirements, ease of use;
    5. Easy storage, less maintenance;
    6. Using ABS plastic shell and valve technology for safe use;
    7. The use of lead-calcium alloys, battery self-discharge is very low;
    8. We possess our own lead grid production technology and production line, which effective help you with quality and cost control.
