| Place of Origin: | SHENZHEN |
| Brand Name: | URILIC |
| Certification: | ETL, DLC, ENEC, TUV, CE |
| Model Number: | U-SL2602-100W |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton box |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T |
| Supply Ability: | 1000PCS/week |
| Product Name: | LED Street Light | Power: | 100W |
|---|---|---|---|
| LEDs Qty.: | 56 Pcs | Input Voltage: | 90-305V/249-528V AC,50-60Hz |
| Housing Material: | Aluminium 6063-T5 | Net Weight: | 5.7kg |
| Light Size: | 710x340x151mm | Packing Size: | 785x390x185mm |
| High Light: | high lumen led street light,led street light bulb |
||

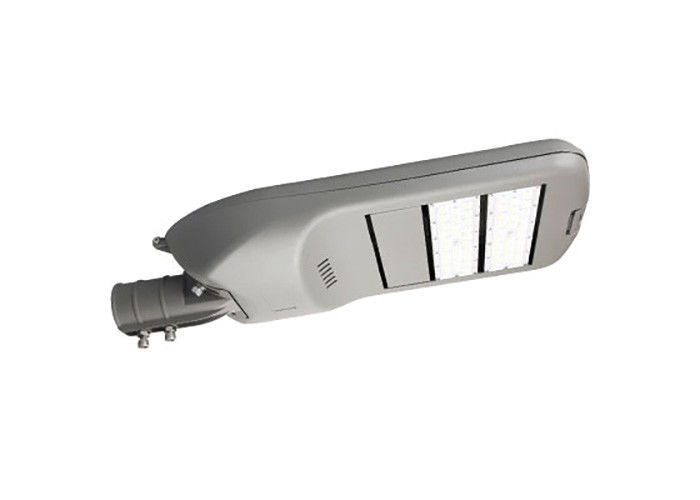

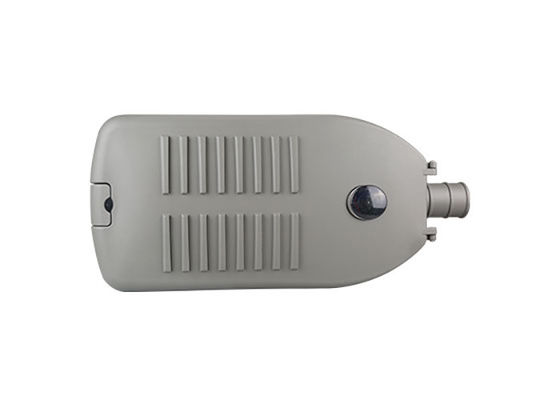

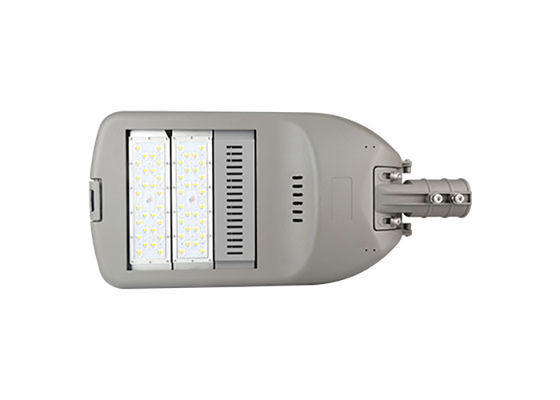

High Power Outdoor Led Lamp Aluminum IP66 Waterproof 100 Watt Led Street Light
Description:
LED street lights are different from conventional street lights in that LED lights have the unique advantages of high efficiency, safety, energy saving, environmental protection, long life, fast response speed, and high color rendering index．
LED is an energy-saving street light, and the efficiency of the driving power supply must be high. It is particularly important for the structure in which the power supply is installed in the street light fixture. Because the luminous efficiency of LED street lights decreases as the temperature of LED street lights increases, the heat dissipation of LEDs is very important. The efficiency of the power supply is high, its power consumption is small, the heat generation in the lamp is small, and the temperature rise of the street lamp is reduced. It is beneficial to delay the light decay of LED street lights.
Quick Detail:
High pressure die cast aluminum alloy housing.
Anti-corrosion with electrophoresis process.
High performance design with multi-chips Package 5050 LED source and exclusive Lens.Stable performance,low light failure and no dead light.
The light transmittance up to 95%,Luminous efficacy up to 150-170lm/w.
Type I,II,III lens optional. Uniform light distribution apply to different street light project.
Excellent operating temperature -40℃~50℃.
Replaceable and upgradable modular design easy assembly,easy installation and easy maintenance.
Green product,No UV,IR radiation or mercury pollution.
With excellent housing design reach IP66/IK20 rating.
Vibration resistant and surge protection 10KV/20KV.
Easy replacement of the netire LED module and electronic system by removing the tope cover.
Distribution Curve:
Product Details:
| Model | U-SL2602-100W |
| Power | 100W |
| Luminous efficiency | 155-160 Lm/W |
| Luminous Flux | 15500 lm |
| CCT | 3000K/4000K/5000K/5500K |
| CRI | ≥70 |
| Power supply | MOSO/MEANWELL/SOSEN |
| LEDs | 5050 LED |
| LEDs Qty. | 56 pcs |
| Beam angle | Type I,II,III |
| IP/IK rate | IP66,IK10 |
| Working voltage | 90-305V/249-528V AC,50-60Hz |
| Working temperature | -40°C~50°C, 20%~90% H.R. |
| Storage temperature | -40°C~85°C, 10%~90% H.R. |
| Power Efficiency | 90% |
| PF | >0.95 |
| Lifespan | >50000H |
| Light pole size | Φ60mm |
| Housing material | Aluminium 6063-T5 |
| Lamp size | 710*340*151 mm (±5mm) |
| Package size | 785*390*185 mm (±5mm) |
| Net weight | 5.7 kg (±0.1kg) |
| Inclination angle | Horiziontal & Vertical ±15° |
Mechanical Drawing:
Installation Diagram:
Applications:
LED street lights are mainly used for road lighting such as main roads, secondary roads, branch roads, factories, schools, gardens, city squares, and courtyards.
