Professional Hybrid Solar And Wind Power Generation 600w Maglev Wind Turbine

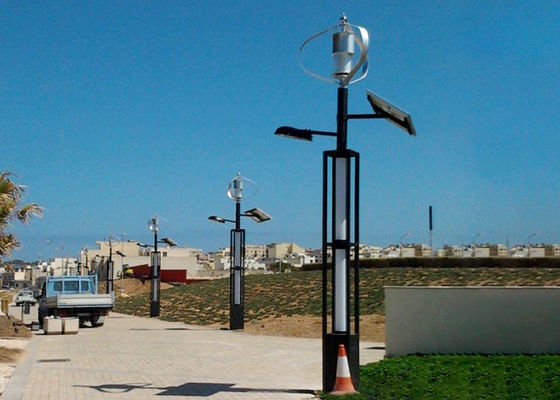

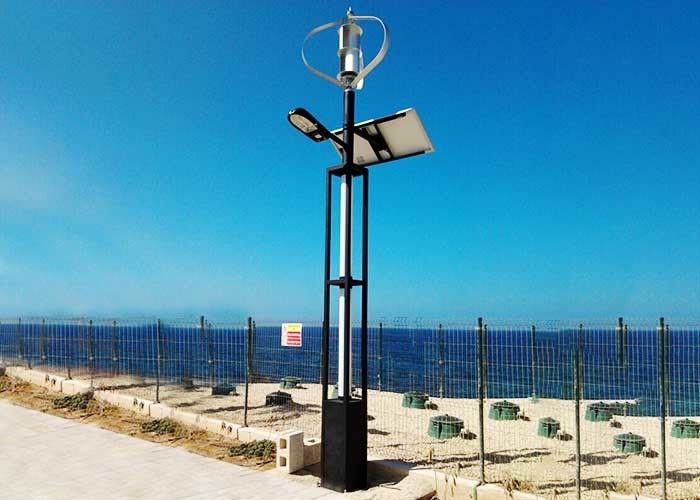

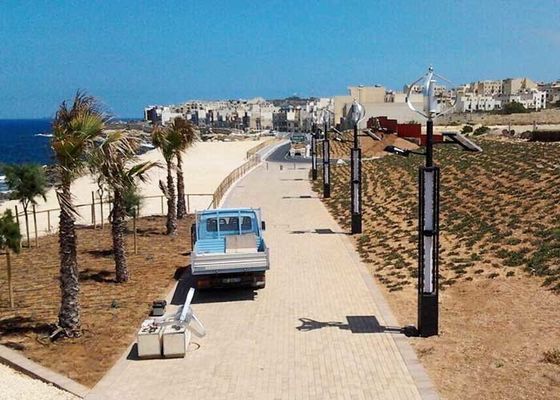

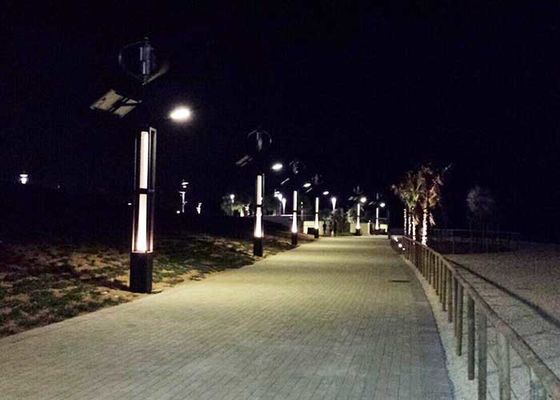

Malta Wind Solar Hybrid off Grid System Street Light Solar Wind Hybrid System

Description:

Malta is a tiny republic in southern Europe. It is an island country located in the center of the Mediterranean Sea, known as "the heart of the Mediterranean Sea" and "the village of Europe". Malta has a subtropical Mediterranean climate with rainy winters and hot and dry summers. Abundant solar and wind energy resources.

The islands, rich in wind and solar energy, are ideal for installing maglev vertical axis wind turbines and solar panels for street lighting and home power. Clean and green energy is worth promoting and developing.

The instability of wind and light resources has an impact on the power generation of wind turbines and solar photovoltaic panels. At the same time, the microscopic environment of each pole is different, and the wind and light resources have different degrees of difference. Therefore, wind turbines and photovoltaics The amount of power generated by the board varies from time to time. Wind turbines, solar photovoltaic panels, and pole fixtures must be of the right type. Or formulate a suitable plan based on the actual situation of the site survey.

Maglev vertical axis wind turbine
Maglev technology personnel was our company integrating appearance design, practical design, mechanical, electrical engineering, power, wind tunnel test of atmospheric air, maglev technology, computer simulation fraction disciplines such as integrated, using maglev technology theory, without any mechanical friction in motor under the condition of wind loads, in turn, make fan motor startup, high grade 1 wind power generation, smooth operation.

LED Lamp
Self-research and design, use CREE brand chip, high-strength tempered glass with better light transmission and UV resistance. Power efficiency was higher than 93%, 50000 hours life span with intelligent dimming function.


Solar Panel
Generally we use MONO silicon solar panel that it transform efficiency can be get 18% above. How customers need can also be thin film solar panels.

Wind and Solar hybrid intelligent controller
The intelligent controller has three main functions: Prevent battery overcharge and over discharge. Change AC into DC. Can be set time, RPM and light control with time control to street light.

Lead Acid Battery
Used lead-acid or GEL batteries, usage time between 3 to 5 years. Wanted more battery usage time please use lithium iron phosphate battery.

Light Pole
Used Q235 high-quality steel, the thickness of up to 9mm around, and after DACROMET technical treatment, can be anti-rust anti-acid, alkali.


Installation:

• Easy Installation: System can be assembled within one hour.
• No welding.
• Single or multiple unit connection for bigger power production.
• Easy connection with PV systems.

Design Concept

1. No transformer is installed;
2. No need to connect to the power grid;
3. Power supply by wind-solar complementary system;
4. The energy saving rate is 100%;
5. Space-saving, aerodynamic airframe.
6. Zero carbon emissions;
7. Special weather, such as rainy weather can last more than 5 days of normal lighting. (Currently used in the industry)
8. Fighting the effects of tropical cyclones (typhoons).
9. Store the controller at the bottom of the pole, using the latest design of the anti-theft lock.
10. The lightning complementary street lamp system is equipped with lightning protection device.
11. Heavy duty, industrial quality construction.
12. Floating magnet design: reduces rotational resistance to enhance electricity generation and extend turbine life.
13. No cogging torque for cutting-in at low wind speed.

Comparison of scenery complementary street lights and ordinary street lights:

Solar Wind Hybrid System Street Light Power Supply Applications:
The wind solar hybrid system can be applied to many places, Street lighting, High way lighting, Park lighting, Park lot lighting, Square lighting, Landscape lighting, Tourist site lighting.
