Place of Origin: | China |
Brand Name: | URILIC |
Certification: | ISO9001,CE,UL,IEC |
Model Number: | Exhibition Hall Monitoring |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | Multiple packaging |
Delivery Time: | 5-30 work days |
Payment Terms: | T/T |
Supply Ability: | 500 sets/ month |
Product Name: | Hybrid Solar And Wind Power Generation | Solar Panel: | 90W-600W |
---|---|---|---|
Wind Turbine: | 600W, 1000W | Working Voltage: | 24V, 48V |
Design Life: | At Least 20 Years | Application: | Off Grid, Power Supply System |
System Type: | Exhibition Hall Monitoring, Road Monitoring | Power Supply: | Continuous Power Supply |
High Light: | wind turbine and solar panel hybrid system,wind turbine solar panels hybrid system |

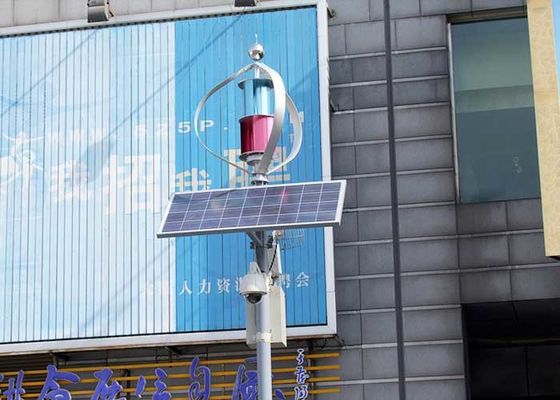

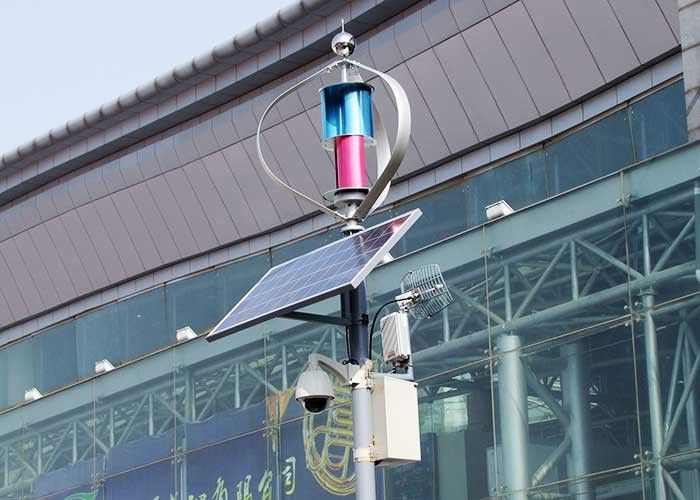

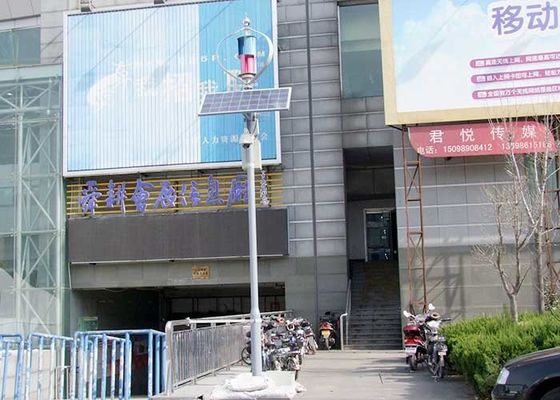

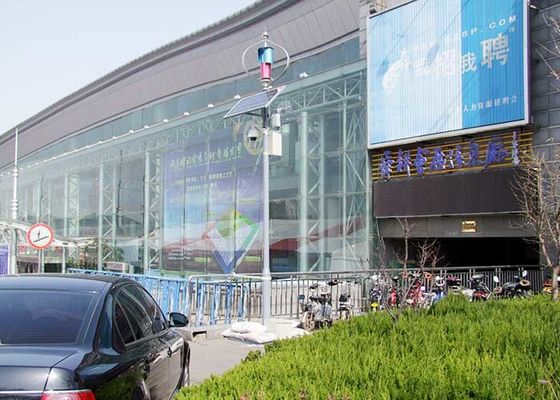

Exhibition Hall Monitoring Hybrid Solar And Wind Power Generation Road Monitoring
System Description:
Digital highway video surveillance system is an integral part of safety prevention system, and it is a comprehensive system with strong defense ability. As an application of combining traditional video technology with modern communication technology, video surveillance system is widely used in highway and other occasions because of its intuitive, convenient and rich information content. With the rapid improvement of network bandwidth, computer processing capacity and storage capacity, as well as the emergence of various video information processing technologies, the advantages of full-range digital and networked video surveillance system are becoming more and more obvious. The original analog surveillance system highlights many shortcomings. With the large-scale construction of highway and the emergence of highway network. Perfect, monitoring and management of highway toll collection and section has become an important part of highway management. Especially in order to strengthen the dynamic control and management of highway pavement, video surveillance system will play a more important role.
In the monitoring system, Hybrid solar and wind power generation new energy independent power supply monitoring system has been widely used. The following will introduce the situation of wind-solar complementary new energy monitoring system from the following aspects.
Hybrid solar and wind power generation monitoring system is a new energy source, which is especially suitable for providing stable and reliable power supply for equipment far away from the grid and with little power load. Because wind energy and solar energy are the most easily available and inexhaustible sources of energy, the use of Hybrid solar and wind power generation power supply system in highway, urban road and other projects not only reduces the cost of construction compared with the use of power grid transmission and distribution, saves electricity costs, but also is safer than power grid supply.
Functional Description:
Charging: The battery is charged by the combination of wind turbine and solar energy through the control center.
Work: It can be switched on and off manually or automatically.
Time: Working hours, like ordinary monitoring, are 24 hours uninterrupted!
Battery power supply time: When the windless and sunless season comes, you can work for more than five nights. As long as there is wind or sunshine in the five days and you can charge the battery, you can work continuously in the evening.
Monitoring equipment: synchronous 360-degree panoramic photography, complete image capture within visual range, built-in high-speed processor and scroll bar.
Function: can monitor panoramic images from different angles, can directly through the computer screen or television, display photographic pictures!
Reliability and stability: The new energy system is made up of imported microprocessor chips (CPUs) for wind turbines. Solar cells
Automatic control is carried out by board, battery, lamp source controller, etc. So the system is stable and reliable.
Automatic control: the opening and closing of equipment, monitoring angle can be automatically adjusted according to user settings!
After-sales service: 1-3 years paid maintenance
Wind And Solar Hybrid Monitoring Power Supply System Configuration:
Items |
Specification |
Quantity (pcs) |
Wind Turbine |
600W |
1 |
Solar anel |
120W12V |
2 |
Wind and Solar Hybrid |
600W |
1 |
Lead Acid Batteries |
A120Ah 12V |
2 |
Light Pole |
Q235 |
9M |
Solar Bracket | Profile Welding Bracket | 1 |
Foundation |
Round Steel |
1 |
Battery Buried Box |
Adaptation |
1 |
Accessory |
Cable |
1 |
