| Product Name: | Single Phase Multi-function Remote Control Energy Meter | Measuring Current Range: | 100A |
|---|---|---|---|
| Measuring Voltage Range: | 230 /110V | Dimensions: | 210*290*90 Mm |
| Weight: | 320g | Function: | Remote Control Turn On/off |
| Communication: | Modbus RTU | ||
| High Light: | energy accessories,power accessories |
||

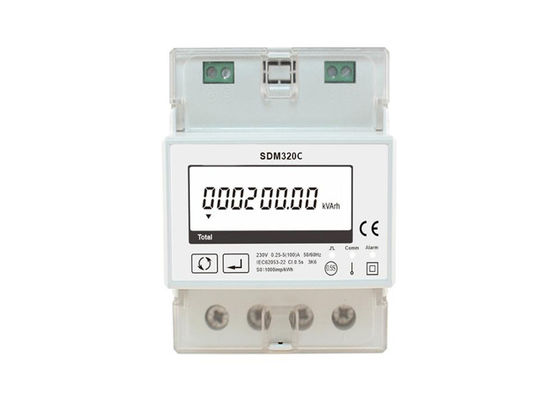

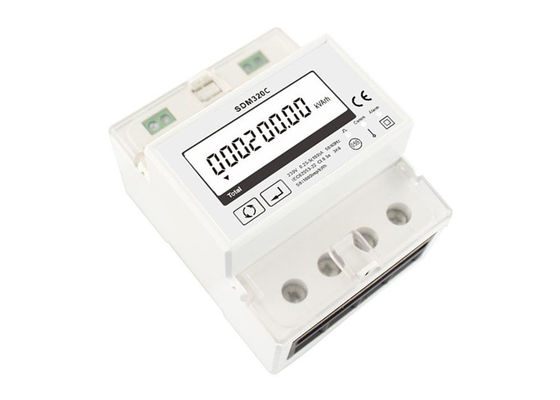

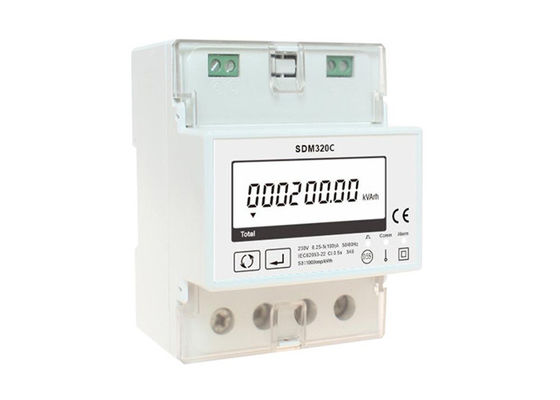

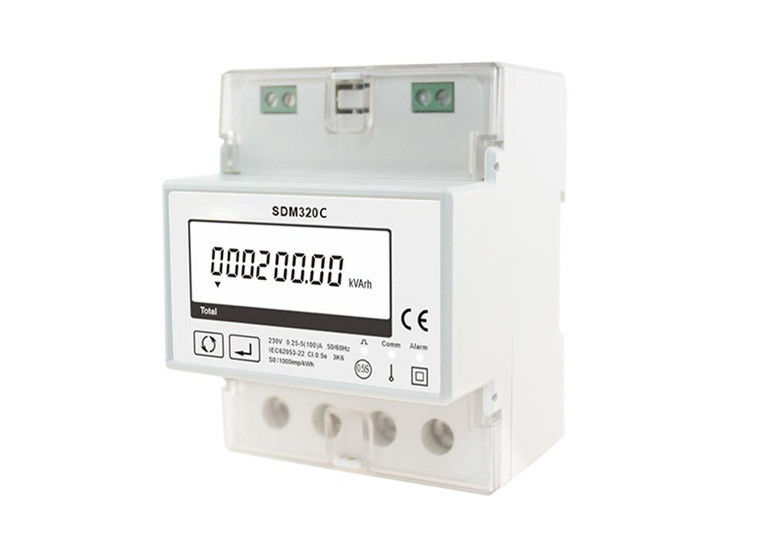

SDM320C Single Phase Multi-function Remote Control Energy Meter for Energy System
Description:
The SDM320C is a single phase multifunction remote control direct connect meter. It has a built-in relay, you can remote control turn on or off when you work in front of computer. Besides, it has alarm system, the relay will open automatically when the parameter reachs the alarm value. There are 26 types alarm object and alarm value you can set by rs485. SDM320C measures and displays the characteristics of single phase two wires (1p2w) supplies, including voltage, current, frequency, power, active and reactive energy, imported and exported. Energy is measured in terms of kWh, kvarh. In order to measure energy, the unit requires voltage and current inputs in addition to the supply required to power the product.
SDM320C supports max. 100A direct connection, saves the cost and avoid the trouble to connect external CTs, giving the unit a cost-effective and easy operation. Built-in interfaces provides pulse and RS485 Modbus RTU outputs. Configuration is password protected.
Features:
Unit Characteristics
The Unit can measure and display:
The unit has password-protected set-up screens for:
Product Details:
|
Electrical characteristics
|
|||
|
Type of measurement
|
RMS including harmonics on three phase AC system ( 3P+N)
|
||
|
Measurement accuracy
|
Power
|
IEC 61557-12 Class 0.5
|
|
|
Active Energy
|
IEC 62053-22 Class 0.5S, IEC 61557-12 Class 0.5
|
||
|
Reactive Energy
|
IEC62053-23 Class 2, IEC 61557-12 Class 2
|
||
|
Frequency
|
±0.1%
|
||
|
Current
|
±0.2%
|
||
|
Voltage
|
±0.2%
|
||
|
Power Factor
|
±0.01
|
||
|
Data Update Rate
|
1 second nominal
|
||
|
Power Consumption Per Phase
|
≤2W/10VA
|
||
|
Max Reading
|
999999.99kwh/kvarh
|
||
|
Input-Voltage
|
Operational Voltage
|
176-276VAC
|
|
|
Un
|
230/400VAC
|
||
|
Impedance
|
1M Ω
|
||
|
Frequency Range
|
50/60H
|
||
|
Input- Current
|
Basic Current
|
5(100)A
|
|
|
Operational Current Range
|
0.4%Ib~Imax
|
||
|
Over Current Withstand
|
30Imax for 0.01S
|
||
|
Impedance
|
<1 mΩ
|
||
|
Mechanical Characteristics
|
|||
|
IP Degree of Protection (IEC 60529)
|
IP51 front display
|
||
|
Dimensions (WxHxD)
|
76x96.5x76.5
|
||
|
Mounting Type
|
35mm Standard DIN Rail mounting
|
||
|
Material of meter case
|
Self-extinguishing UL 94 V-0
|
||
|
Mechanical environment
|
M1
|
||
|
Communications
|
|||
|
Interface standard and protocol
|
RS485 and MODBUS RTU
|
||
|
Communication address
|
1~247
|
||
|
Transmission mode
|
Half duplex
|
||
|
Data type
|
Floating point
|
||
|
Transmission distance
|
1000m Maximum
|
||
|
Transmission speed
|
1200bps~9600bps
|
||
|
Parity
|
None (default), Odd, Even
|
||
|
Stop bits
|
1 or 2
|
||
|
Response time
|
<100 mS
|
||
|
Environmental Characteristics
|
|||
|
Operating Temperature
|
-25 to 55°C
|
||
|
Storage Temperature
|
-40 to 70°C
|
||
|
Humidity Rating
|
<95% RH at 50 °C (non-condensing)
|
||
|
Pollution Degree
|
2
|
||
|
Altitude
|
2000m
|
||
|
Electromagnetic Compatibility
|
|||
|
Electrostatic Discharge
|
IEC 61000-4-2
|
||
|
Immunity to Radiated Fields
|
IEC 61000-4-3
|
||
|
Immunity to Fast Transients
|
IEC 61000-4-4
|
||
|
Immunity to Impulse Waves
|
IEC 61000-4-5
|
||
|
Conducted Immunity
|
IEC 61000-4-6
|
||
|
Immunity to Magnetic Fields
|
IEC 61000-4-8
|
||
|
Immunity to Voltage Dips
|
IEC 61000-4-11
|
||
|
Radiated Emissions
|
EN55011 Class A
|
||
|
Conducted Emissions
|
EN55011 Class A
|
||
|
Harmonics
|
IEC 61000-3-2
|
||
|
Safety
|
|||
|
Measurement Category
|
Per IEC61010-1 CAT III |
||
|
Current Inputs
|
Require external Current Transformer for Insulation
|
||
|
Over voltage Category
|
CAT III
|
||
|
Dielectric Withstand
|
As per IEC 61010-1 Double Insulated front panel display
|
||
|
Protective Class
|
II
|
||
