Residential Hybrid Solar Wind Power Generation System 600W 1000W Wind Turbines

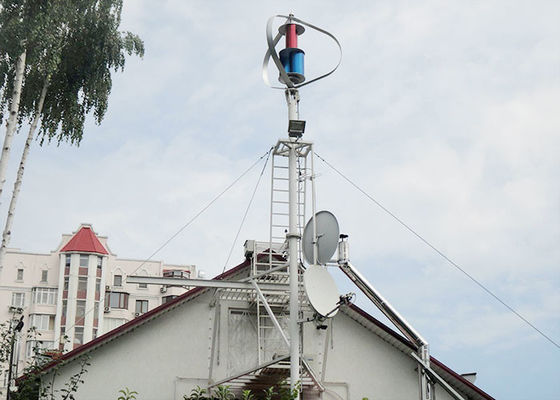

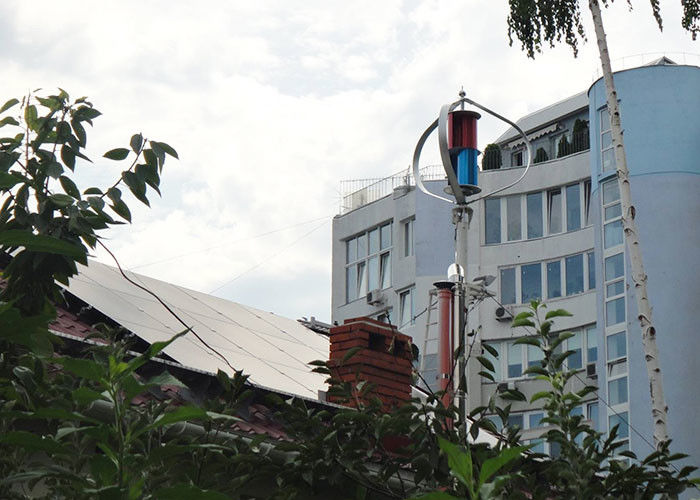

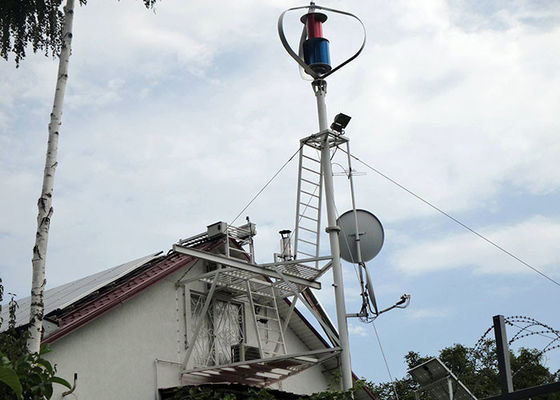

Residential Solar And Wind Power Systems Solar Wind Hybrid System in Ukraine

Environmental overview:

The environmental conditions of this program are recommended to be annual average wind speed over 4 m / s, annual average solar radiation is 5500 MJ / M2, design annual average peak sunshine peak time is 3 hours / day. The installation environment temperature is 8 ° C -50 ° C, the relative humidity is 5% - 90%.

Typical Configuration:

• 1KW/48V wind turbine, designed and installed with a height of 7 meters;
• The specifications of solar photovoltaic panels are 320W/36V, 2 strings of 10 and a total of 20 pieces, and the solar panel is designed for removable structure;
• One wind and solar hybrid controller, input AC15—200V, output DC48V DC power;
• 1 solar charging controller, power 3000W;
• Battery configuration specifications are 200AH/12V, 4 series 4 and a total of 16 pieces, designed to have a discharge depth of 80%, and the designed space number is one and a half days (no wind and no sun).
• One inverter, the power is 4500W, and the design full-power inverter efficiency is 90%.

►Specific configuration can be designed according to local climate resources.

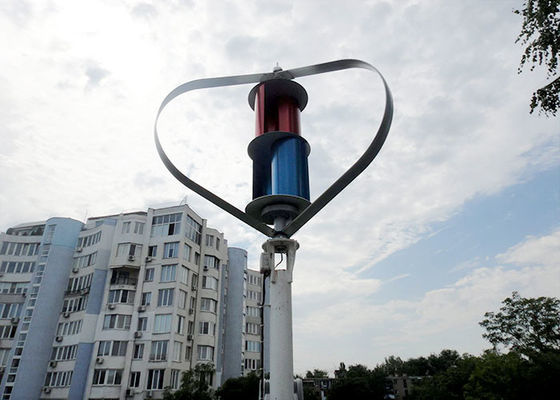

Hot-selling Maglev Vertical Axis Wind Turbine:

System Features:

In short, it is believed that with the reduction of equipment material costs, the development of science and technology, and the introduction of government support policies, the clean, green and environmentally friendly new energy power generation system will be more widely used.
