Place of Origin: | China |
Brand Name: | URILIC |
Certification: | UL,CE,RoHS,ISO9001 |
Model Number: | 600W |
Minimum Order Quantity: | Negotiation |
---|---|
Price: | Negotiation |
Packaging Details: | Plywood box |
Delivery Time: | 5-15 days |
Payment Terms: | T/T |
Supply Ability: | 1000PCS/week |
Name: | Wind And Solar Hybrid Controller | Communication: | RS232(5V Electrical Level)/RS485 (standard) |
---|---|---|---|
Weight: | 2.5kg | Size: | 235x148x84mm |
System Voltage: | 48V | Warranty: | 2 Years |
Application: | Solar Wind Hybrid System, Wind And Solar Hybrid Street Light | Controller Type: | Wind And Solar Charge Controller |
Highlight: | wind and solar hybrid charge controller,wind generator controller |

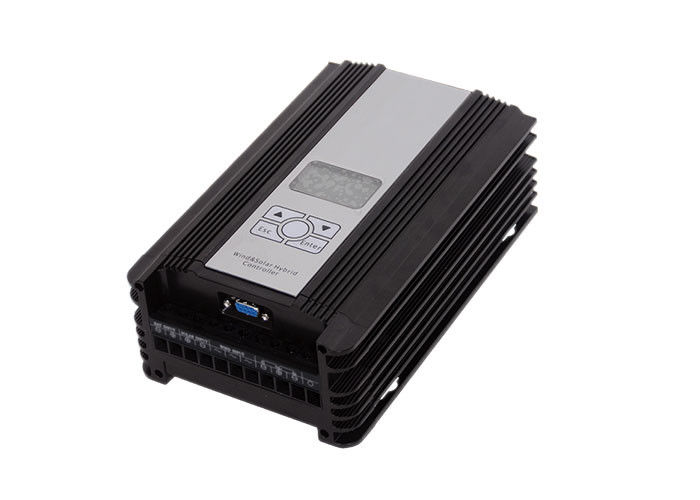

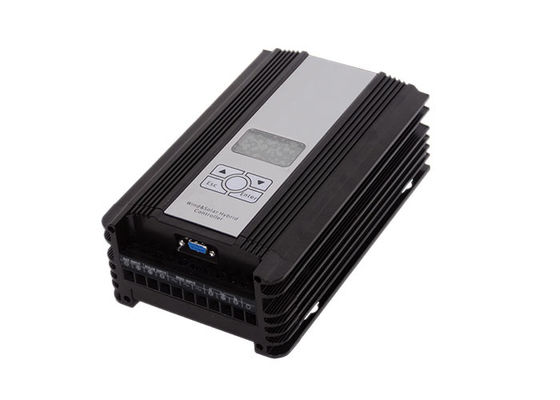

Wind And Solar Hybrid Controller 600W 48V Battery Charge Controller Smart
Description:
The wind and solar hybrid controller 600W 48V has been condensed for many years of application experience (such as waterproof, dustproof, salt spray, operational wiring error, fan wind limit control, energy management, etc.), regardless of the application to charge control, or street light control, each performance is excellent. In order to cooperate with various applications, the controller adopts layering and building block structure. All functions can be combined with different function boards according to the actual application, which is convenient for quick customization and suitable for application.
Design Features:
Waterproof
The circuit board has three anti-treatment and layered structure design, even if a small amount of water enters, it will not damage the equipment.

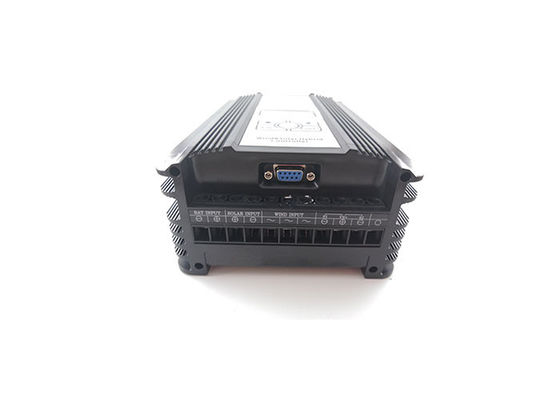

Easy wiring
The injection molding process is adopted at the terminal, and the phenomenon of short circuit and wire contact does not occur, making it easier for the customer to operate.
Photovoltaic board reverse connection will automatically alert prompt
The input end of the photovoltaic panel will not be damaged continuously, and there will be a buzzer warning prompt. Special construction at night will not cause wiring errors (Note: The reverse connection detection at night wiring requires manual button intervention).
Fan steady speed power generation control technology
The fan steady-speed power generation control method can make the fan not run at super-speed. In strong winds, the fan can control continuous power generation at a set speed to avoid direct braking of the fan due to stall caused by strong wind. Greatly increase the power generation of the fan and keep the fan running normally.
Fan input MPPT power generation technology (boost type)
The wind and solar hybrid controller can provide automatic fan input upper limit power tracking mode, or 5-segment matching curve input configuration mode (input speed vs. input current; or input voltage vs. input current curve), which can greatly reduce the fan’s low wind speed efficiency. Power generation.
Statistics on cumulative power generation, remaining power, speed, current, temperature, etc.

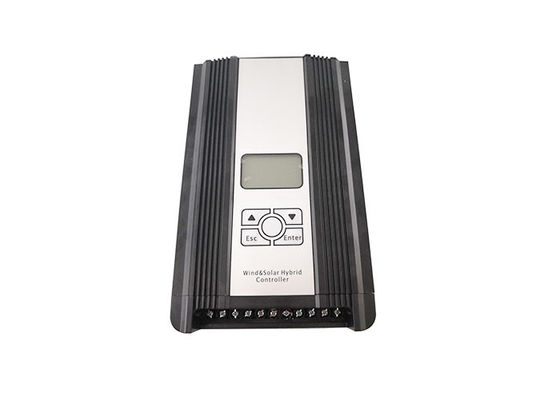

The controller screen has conventional fan, photovoltaic, battery, output current, voltage, power display, as well as fan, photovoltaic cumulative power generation display, and battery residual power display, fan speed, unloading current display. The temperature of the controller is displayed.
Product Details:
Battery parameters |
|
---|---|
Applicable battery voltage |
48V |
Battery protection method |
Reverse connection protection (do not burn any components, with voice prompt); over voltage protection, under voltage protection (for street light and such kind of load) |
Overvoltage protection point voltage |
58.0V±0.3V |
Overvoltage recovery point voltage |
55.0V±0.3V |
Undervoltage protection point voltage |
42.0V±0.3V |
Undervoltage recovery point voltage |
46.0V±0.2V |
Battery temperature compensation |
5mv/°C/2V (available) (optional) |
Wind turbines input port parameters |
|
Applicable wind turbine rated power |
600W |
Port rated current |
15A dc (after rectification) |
Port maximum input current |
20A dc (after rectification) |
Wind turbine speed limit power generation preset speed |
500 Rpm (can be set) |
Wind turbine current limiting power generation preset current |
15A (can be set) |
Wind turbine protection method |
Overspeed protection, overcurrent protection, inductive lightning protection |
Unloading method |
PWM stepless high frequency soft unloading (built-in) |
MPPT function |
Boost MPPT mode (automatic tracking or 5-band curve tracking) |
MPPT channel input current |
12A |
PV input port parameters |
|
Applicable PV rated power |
720W/48V (standard) |
Port rated input current |
15A (standard) 30A (optional) |
Charging voltage drop |
<0.2V |
Photovoltaic Protection Method |
Reverse protection (voice reminder) |
Unloading method |
Open unloading |
Discharge output port parameters |
|
Outputs |
2-way standard output/PWM mode is 1-channel dimming output |
Every output current |
12A |
Output protection method |
Overcurrent protection (15A/30 seconds 18A/0.4 seconds), short circuit protection (current > 150A) |
Output control method |
Light control, time control, hold output, reverse output,
PWM output (250HZ only on the 2nd road) |
Other |
|
Accessibility |
Controller internal air temperature monitoring, unloading component temperature monitoring, fan MPPT
Component temperature monitoring, controller terminal upside down installation inversion monitoring (voice reminder) |
Display mode |
Liquid (LCD) display |
Communication method |
RS232 (5V level), RS485 (standard) / short-range wireless RF (optional) |
Parameters that can be displayed |
Fan input voltage / current / power / power generation / speed / unloading current
PV input voltage / current / power / power generation Battery voltage / charging current / power / total charge / battery status information 2 output ports output current / power / abnormal information |
Standby power consumption (screen backlight off) |
About 20ma / (12 ~ 24) V system |
How to operate |
3M foil button operation (4 buttons) |
Working temperature and humidity range (environment) |
-40~+80°C/20~85%RH (but no condensation) |
Protection level |
IP41 |
Controller size (length * width * height *) |
235mm*148mm*84mm |
Net weight |
2.5KG |

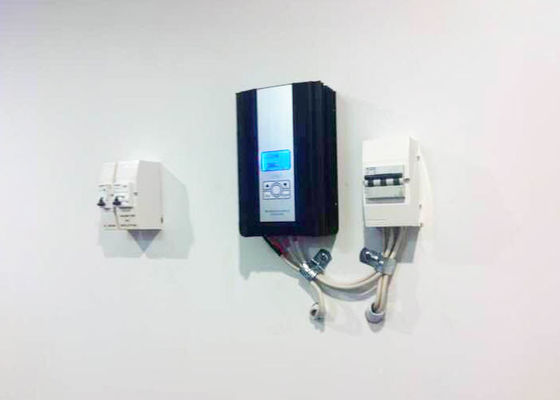

Application:
