Detailed Product Description

Name:	Wind And Solar Hybrid Controller	Current:	10A,20A,30A,40A
Support Battery Type:	Lead-acid And Lithium-ion Batteries	Communication Protocol:	Standard Modbus Communication Protocol With RS485 Interface
Function:	Real-time Energy Statistics Function	Material:	Aluminum Alloy Casing
High Light:	wind and solar hybrid charge controller , wind solar hybrid system controller

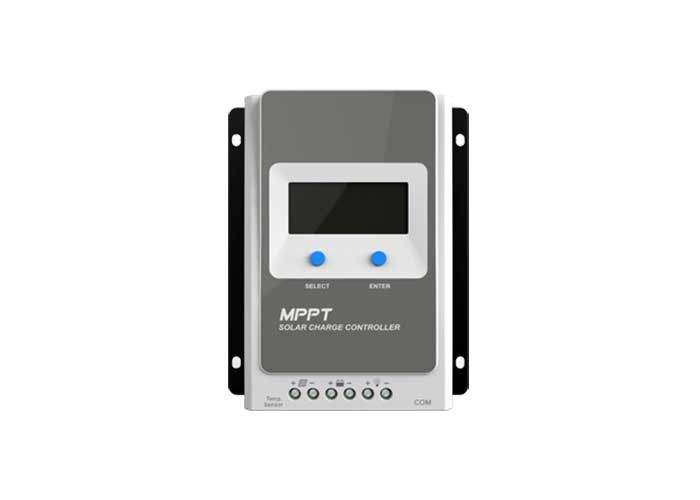

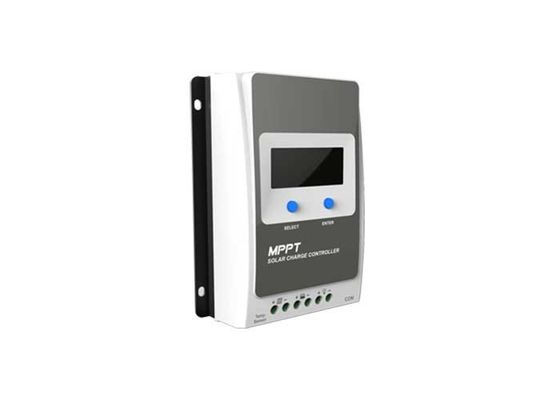

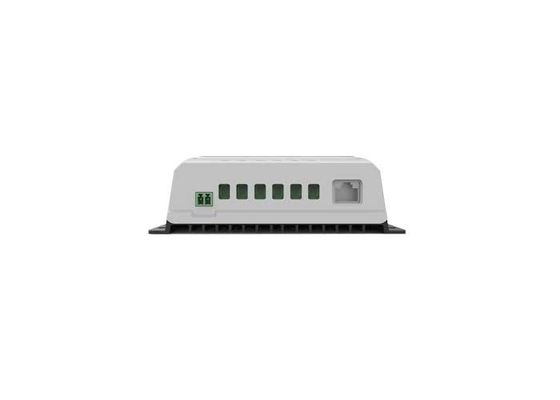

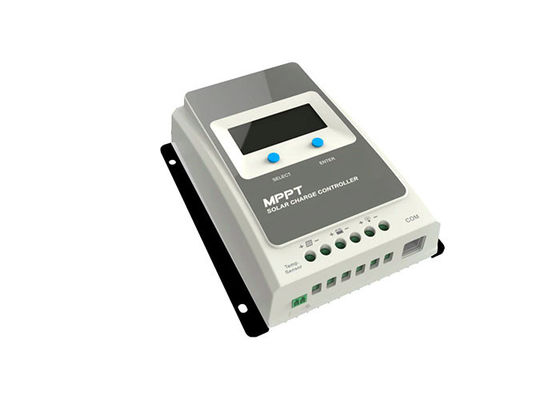

Solar Off grid Controller MPPT-TR-AN Series 10A 20A 30A 40A Aluminum Alloy Casing

Design Features:

MPPT upper power point tracking technology.
High-end power point tracking speed, while ensuring tracking efficiency.
Further optimize the MPPT control algorithm to ensure the upper power point loss rate and short loss time.
Accurate identification and tracking of multi-peak upper limit power points.
Improve system performance with high quality components.
Rated charging current and charging power automatic adjustment function.
Wide PV array upper limit power point operating voltage range.
Supports a variety of battery types for lead-acid batteries and lithium-ion batteries.
With battery temperature compensation.
Real-time electricity statistics recording function.
High temperature charging automatic power reduction function.
Variety of load control modes.
It can be operated without derating at full load within the working temperature range.
Standard Modbus communication protocol based on RS485 communication bus, communication distance is longer.
The communication interface uses a dedicated power protection chip, which can provide 5VDC/100mA power supply and has overcurrent short circuit protection.
Monitor and set parameters via mobile app and PC monitoring setup software.
Complete electronic protection function.

Product Details:

Model	MPPT-TR-1206-AN	MPPT-TR-2206-AN	MPPT-TR-1210-AN	MPPT-TR-2210-AN	MPPT-TR-3210-AN	MPPT-TR-4210-AN
System Rated Voltage	12/24VDC★ Automatic Identification
Rated Charging Current	10A	20A	10A	20A	30A	40A
rated discharge current	10A	20A	10A	20A	30A	40A
Controller Operating Voltage Range	8~32V
Max PV open circuit voltage	60V (minimum temperature) 46V (25°C)		100V (minimum temperature) 92V (25°C)
Maximum power point operating voltage range	(battery voltage +2V)~36V		(battery voltage +2V)~72V
Maximum PV input power	130W/12V	260W/12V	130W/12V	260W/12V	390W/12V	520W/12V
Maximum PV input power	260W/24V	520W/24V	260W/24V	520W/24V	780W/24V	1040W/24V
Static Loss	≤12mA
Discharge loop voltage drop	≤0.23V
Temperature Compensation Factor ◆	-3mV/°C/2V (default)
Ground Type	Negative grounding
RS485 communication interface	5VDC/100mA
LCD backlight time	60S (default)
Working temperature range	-25°C～+50°C (full load operation)
Storage temperature range	-20°C～+70°C
Relative Humidity	≤95%, no condensation
Protection level	IP30

★When the battery type is “Lithium Ion Battery”, the system voltage cannot be recognized automatically. Please confirm the system voltage before use.
◆When the battery type is “Lithium Ion Battery”, the temperature compensation coefficient is 0, which cannot be changed.

※ It can be fully loaded within the working environment temperature range. When the internal temperature exceeds 81 °C, the charging power reduction mode is turned on.

Model	MPPT-TR-1206-AN MPPT-TR-1210-AN	MPPT-TR-2206-AN MPPT-TR-2210-AN	MPPT-TR-3210-AN	MPPT-TR-4210-AN
Dimensions	172x139x44mm	220x154x52mm	228x164x55mm	252x180x63mm
Installation size	130x130mm	170x145mm	170x164mm	210x171mm
Installation hole size	Φ5mm
terminals	12AWG(4mm2)	6AWG(16mm2)	6AWG(16mm2)	6AWG(16mm2)
Recommended wiring diameter	12AWG(4mm2)	10AWG(6mm2)	8AWG(10mm2)	6AWG(16mm2)
Net weight	0.57kg	0.94kg	1.26kg	1.65kg
