Place of Origin: | China |
Brand Name: | URILIC |
Certification: | ISO9001,CE,UL |
Model Number: | 250KW On Grid Solar Power System |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Multiple packaging |
Delivery Time: | 5-30 work days |
Payment Terms: | T/T |
Supply Ability: | 500 sets per month |
Name: | On Grid Solar Power System | Solar Power: | 250KW |
---|---|---|---|
Application Class: | Class A | Life: | ≥25 Years |
Type: | Grid Tied Solar System | Application: | Commercial Solar Power, Building Roof |
High Light: | on grid and off grid solar system,on grid solar panel kit |
High Quality Solar Panels For 250KW On Grid Solar Power System Building Roof
Description:

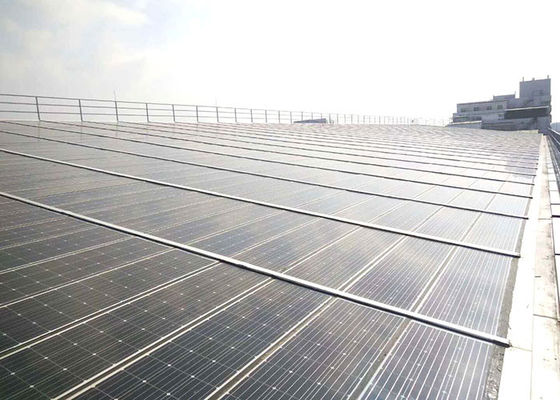

The project is installed in the Shantou area. Most of the territory of Shantou is subtropical, between the equatorial low pressure zone and the subtropical high pressure zone, on the southern edge of the northeast trade wind belt. The annual sunshine of Shantou is 2,000 to 2,500 hours.
The customer has a large amount of self-use electricity and high electricity prices. After installing the photovoltaic power station, it can save high electricity bills and save energy and reduce emissions. At the same time, because the project uses the latest U-shaped solar panels developed by our company, we use them in the design and installation process. With a full waterproof structure, the project provides customers with more than 2,000 square feet of high-end office space.
U-shaped Solar Panel Details:
Model | U160M-12 | U165M-12 | U170M-12 | |
Peak Power (W) | 160±3% | 165±3% | 170±3% | |
Open circuit voltage (V) | 22.6 | 22.6 | 22.6 | |
Peak Voltage (V) | 18.5 | 18.5 | 18.5 | |
peak current (A) | 8.64 | 8.91 | 9.19 | |
Short-circuit current (A) | 9.34 | 9.54 | 9.83 | |
Cell efficiency | 19.5% | 20.0% | 21.0% | |
Maximum overcurrent (A) | 15A | |||
Maximum system voltage (V) | 1000V DC | |||
Rated operating temperature | 48±2°C | |||
Working temperature range | -40°C- +85°C | |||
Current temperature coefficient | 0.1%/°C | |||
Voltage temperature coefficient | -0.37%/°C | |||
Power Temperature Coefficient | 0.45%/°C | |||
Solar Cell | 156*156*0.19mm | |||
Number of cells | 36 pcs | |||
Size | 2000*520*50mm | |||
Weight | 15 kg | |||
Surface Packaging | Semi-tempered glass/5.0mm | |||
Pre-wind pressure | 2400Pa | |||
Back wind pressure | 2400Pa | |||
Maximum hail impact | 25mm/ 23m/s |
Advantage of U-shaped Solar Modules:
High Quality Solar Panels Project:
Iron roof, standard factory building, photovoltaic agricultural greenhouse, sun room, canopy, photovoltaic sound insulation wall, solar floor tile.
