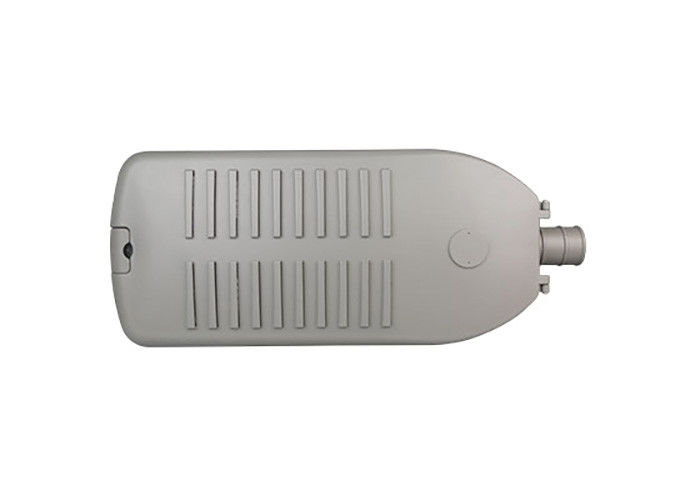

Waterproof High Power Led Street Light Outdoor SMD 200W High Lumen 31000lm

High Lumen 31000lm Waterproof Outdoor SMD 200W High Power Led Street Light

Description:

Using high bright SMD 3030 or SMD 5050. Adopts integrated design of heat sink and lamp housing. The LED is directly connected to the outer casing, and the heat dissipation fins transfer the light source heat out fast, which fully ensure the lifetime 50,000 hours of the LED street light. The lamp housing is made of die-casting aluminum, and the reasonable structure design ensure the effective heat dissipation performance, waterproof and dustproof. The luminaire surface is with UV-resistant and anti-corrosive treatment, and the overall luminaire meets the IP66 standard.

LED is an energy-saving street light, and the efficiency of the driving power supply must be high. It is particularly important for the structure in which the power supply is installed in the street light fixture. Because the luminous efficiency of LED street lights decreases as the temperature of LED street lights increases, the heat dissipation of LEDs is very important. The efficiency of the power supply is high, its power consumption is small, the heat generation in the lamp is small, and the temperature rise of the street lamp is reduced. It is beneficial to delay the light decay of LED street lights.

Quick Detail:

1. For -10~15° angle adjustable and applicable different mounting arm.

2. With excellent housing design reach IP66/IK20 rating.

3. Vibration resistant and surge protection 10KV/20KV.

4. Easy replacement of the netire LED module and electronic system by removing the tope cover.

5. Double Clip on closure,"Plug and Play" system suitable for SKD.

6. Dimming and smart lighting system available upon request.

7. Life-span over 50,000 hours,5 years warranty.

8. High pressure die cast aluminum alloy housing.

9. Anti-corrosion with electrophoresis process.

10. High performance design with multi-chips Package 5050 LED source and exclusive Lens.Stable performance,low light failure and no dead light.

11. The light transmittance up to 95%,Luminous efficacy up to 150-170lm/w.

Mechanical Drawing:

Distribution Curve:



Installation Diagram:

1. Correctly connect the lamp's own cable and engineering cable (connect the blue input line of the lamp power supply to the zero line of the city power line; connect the brown line to the mains power line; connect the yellow-green line to the ground line), and plug the wire Into the light pole.
2. Insert the lamp vertically or horizontally into the light pole pick arm, depending on the light pole. Suitable for light pole pick arm φ60mm;
3. After ensuring that the light fixture is stable, tighten the M10 hex socket head screw of the light fixture pressure plate to make the light fixture firmly on the light pole pick arm.
