Wind Turbine Controller 1KW-7KW 12V-120V Contains Unloading Load Box

Wind Turbine Controller 1KW-7KW 12V-120V Contains Unloading Load Box

    • Wind Turbine Controller 1KW-7KW 12V-120V Contains Unloading Load Box
    • Wind Turbine Controller 1KW-7KW 12V-120V Contains Unloading Load Box
  • Wind Turbine Controller 1KW-7KW 12V-120V Contains Unloading Load Box

    Product Details:

    Place of Origin: China
    Brand Name: URILIC
    Certification: UL,CE,RoHS,ISO9001
    Model Number: 1000W

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: Plywood box
    Delivery Time: 5-15 days
    Payment Terms: T/T
    Supply Ability: 1000PCS/week
    Contact Now
    Detailed Product Description
    Name: Wind Turbine Controller Controller Size: 420x310x155mm
    Usage: Wind Turbine Power System Unloading Box Size: 620x350x165mm
    Wind Turbine Power: 1KW-7KW Controller Net Weight: 10kg
    System Voltage: 12V-120V Unloading Net Weight: 7kg
    High Light:

    wind generator controller

    ,

    wind solar hybrid system controller

    Wind Turbine Controller 1KW-7KW 12V-120V Contains Unloading Load Box

    Description:
    Wind turbine controllers have been condensed for many years of application experience (such as waterproof, dustproof, salt spray, operational wiring errors, fan wind limit control, energy management, etc.) Applied to charging control, or street light control, each performance is excellent. In order to cooperate with various applications, the controller adopts layering and building block structure. All functions can be combined with different function boards according to the actual application, which is convenient for quick customization and suitable for application.


    Design Features:


    Waterproof
    The circuit board has three anti-treatment and layered structure design, even if a small amount of water enters, it will not damage the equipment.

    RS485 Communication
    Standard RS485 communication, short-range wireless RF optional.

    Easy wiring
    The injection molding process is adopted at the terminal, and the phenomenon of short circuit and wire contact does not occur, making it easier for the customer to operate.

    Battery reversal will automatically alert you
    The battery input end will not be damaged continuously, and there will be a buzzer warning. It avoids damage to the equipment due to wiring errors, fires, and better protects the battery.

    Continuous short-circuit output protection
    The discharge output has continuous short-circuit output protection and over-current protection. Recover yourself after abnormal exclusion. It avoids damage to the equipment due to malfunction of the electrical equipment (especially short circuit) or causes fire.

    Fan speed steady power generation control technology
    The fan steady-speed power generation control method can make the fan not run at super-speed. In strong winds, the fan can control continuous power generation at a set speed to avoid direct braking of the fan due to stall caused by strong wind. Greatly increase the power generation of the fan and keep the fan running normally.

    Wind stall current limiting power generation control technology
    The fan stall limiting current control method can prevent the fan from running under overcurrent and protect the expensive generator from being damaged by the heat generated by the overcurrent.

    Wind Turbine Input MPPT Power Generation Technology (Buck)
    The wind-solar complementary controller can provide a 15-segment matching curve input configuration mode (input speed vs. input current; or input voltage vs. input current curve), which can greatly reduce the wind turbine’s low wind speed and generate electricity efficiently.

    Support for multiple output mode selections
    The controller offers a variety of output modes (light control, time control, morning light, PWM dimming, reverse) for easy application.

    Statistics on cumulative power generation, remaining power, speed, current, temperature, etc.
    The controller screen has conventional wind turbines, unloading, current, voltage and power display at the output, as well as the cumulative power generation display of the wind turbine, power display, wind turbine speed and unloading current display. The temperature of the controller is displayed.

    The controller wiring terminal is placed with the warning function facing up
    When the wind turbine controller terminal is placed upwards, it will be pre-warned to allow the customer to use it in the correct installation direction, avoiding the use in the open air, or due to weather, the surface of the wire is dew, and the rain directly along the wire, the water is introduced into Inside the controller, the possibility of damaging the controller after a large amount of water accumulates.





    Product Details:

    Battery parameters

    Applicable battery voltage

    12V-120V battery pack

    Battery protection method

    Reverse protection (with buzzer);



    Voltage limiting charging protection, overcurrent charging protection

    Overvoltage protection point voltage

    58.0V±0.3V can be set,



    Set according to different battery pack parameters

    Wind turbine input port parameters

    Applicable wind turbine rated power

    1KW~7KW (depending on the battery pack voltage level, refer to Appendix III)

    Port rated current

    35A dc (after rectification)

    Port maximum input current

    45A dc (after rectification)

    Port maximum input voltage

    420V dc (after rectification), optional 850V dc

    Wind turbine speed limit power generation preset speed

    300 Rpm (can be set)

    Wind turbine protection method

    Over speed protection, over current limit protection, inductive lightning protection

    Unloading method

    PWM stepless high frequency soft unloading (external unloading box)

    MPPT function

    Buck MPPT mode (15-segment power curve tracking)

    MPPT channel input current

    12A

    Output port parameters

    Battery port maximum output voltage

    Overvoltage protection point voltage (depending on this parameter set)

    Battery port maximum output current

    65A (continuous) 80A (30 minutes)

    65A (continuous) 80A (30 minutes)

    65A (continuous) 80A (30 minutes)

    Other

    Display mode

    128*64 dot matrix liquid crystal (LCD) display

    Communication method

    RS485 (standard) Short-range wireless RF (optional)

    Parameters that can be displayed

    Fan input voltage / current / power / power generation / speed / wind speed (with anemometer) /



    Battery voltage / charging current / power / total charge / battery status information

    3 years of daily power generation / monthly power generation / annual power generation

    Standby power consumption (screen backlight off)

    about 2.5w

    How to operate

    3M foil button operation (4 buttons)

    Working temperature and humidity range (environment)

    -40~+80°C/20~85%RH (but no condensation)

    Protection level

    IP41

    Controller size (length * width * height *)

    420mm*310mm*155mm

    Controller net weight

    10KG

    Unloading box size (length * width * height *)

    620mm*350mm*165mm

    Unloading net weight

    7KG

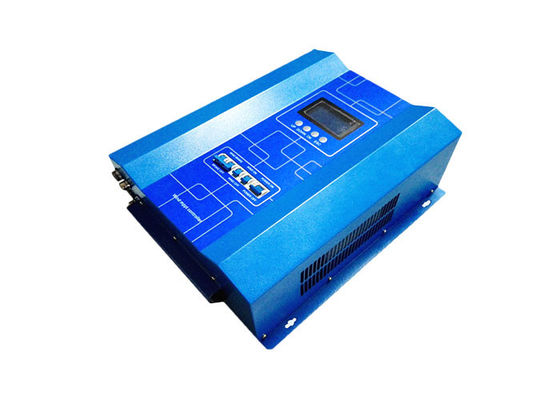

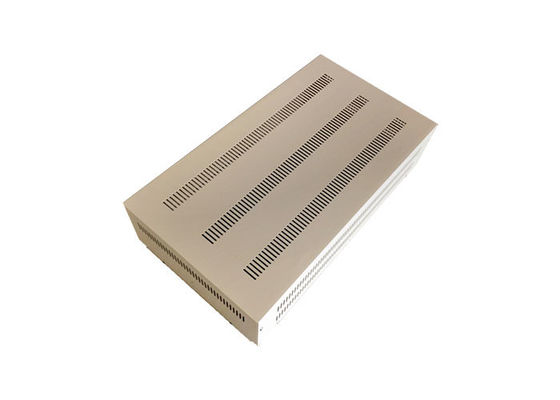

    Wind turbine controller contains unloading load box:
     Wind turbine controller contains unloading load box
