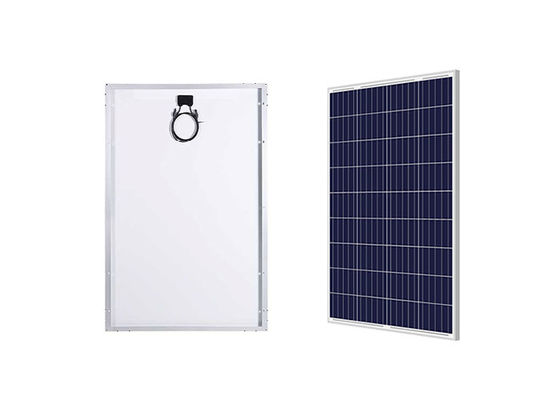

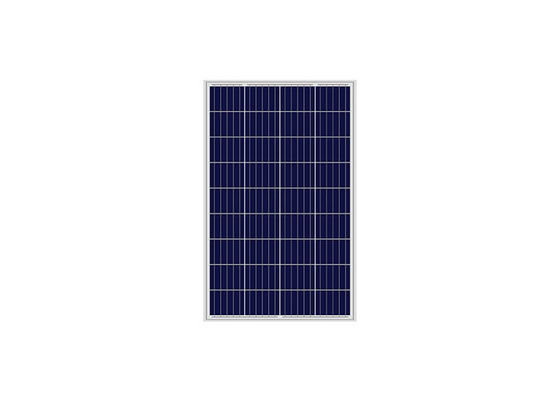

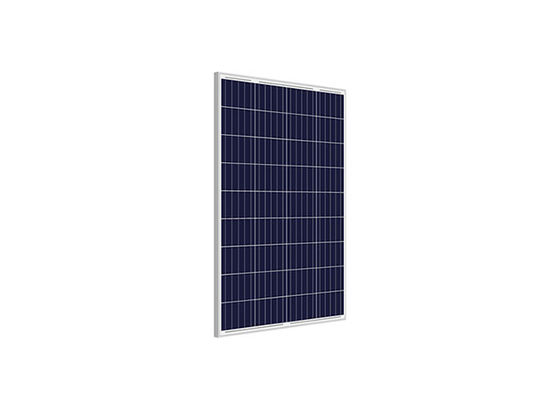

100 Watt Polycrystalline Solar Panel 1050*666*30 Mm High Ammonia And Salt Mist Resistance

100 Watt Polycrystalline Solar Panel 1050*666*30 Mm High Ammonia And Salt Mist Resistance

    • 100 Watt Polycrystalline Solar Panel 1050*666*30 Mm High Ammonia And Salt Mist Resistance
    • 100 Watt Polycrystalline Solar Panel 1050*666*30 Mm High Ammonia And Salt Mist Resistance
    • 100 Watt Polycrystalline Solar Panel 1050*666*30 Mm High Ammonia And Salt Mist Resistance
    • 100 Watt Polycrystalline Solar Panel 1050*666*30 Mm High Ammonia And Salt Mist Resistance
  • 100 Watt Polycrystalline Solar Panel 1050*666*30 Mm High Ammonia And Salt Mist Resistance

    Product Details:

    Place of Origin: China
    Brand Name: URILIC
    Certification: CQC, TUV, CE, UL, ROHS
    Model Number: 90W, 95W, 100W

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: Plywood box
    Delivery Time: 5-15 days
    Payment Terms: T/T
    Supply Ability: 1000PCS/week
    Contact Now
    Detailed Product Description
    Product Name: Polycrystalline Solar Panel Peak Power: 90W, 95W, 100W
    Weight: 10.0kg Size: 1050*666*30mm
    Solar Cell: Poly 156*109 Cell Number Of Cells: 36pcs
    Application Type: Class A Material Of Frame: Anodized Aluminum Alloy
    High Light:

    mono versus poly solar panels

    ,

    multicrystalline silicon solar cells

    90W-100W-18V Polycrystalline Solar Panel Polycrystalline silicon solar panels

    Product Description:

    Polycrystalline solar panels generally have lower efficiencies than monocrystalline options, but their advantage is a lower price point. In addition, polycrystalline solar panels tend to have a blue hue instead of the black hue of monocrystalline panels.



    We has developed various types of polycrystalline solar modules. Polycrystalline Solar Panel have an advantage over monocrystalline silicon solar prices, but are less efficient.



    Polycrystalline solar panels are made from similar silicon material hence instead of going through the slow and more expensive process of creating a single crystal, molten silicon is just put into a cast and cooled with a seed crystal. By using the casting method, the crystal surrounding the seed isn’t uniform and branches into many, smaller crystals, thus the term “polycrystalline”. The surface has a jumbled look with many variations of blue colour.


    Key Features:

    1. High module conversion efficiency up to 17% through advanced manufacturing technology.
    2. Low degradation and excellent performance under high temperature and low light conditions.
    3. Robust aluminum frame ensures the modules to withstand wind loads up to 2400Pa and snow loads up to 5400Pa.
    4. Positive power tolerance of 0 ~ + 3 %.
    5. High ammonia and salt mist resistance.
    6. Efficient protection from frame deformation and water accumulation.
    7. Rugged design to withstand high wind pressure and snow load, easy installation.
    8. Professional system services and technical guidance.
    9. Junction box protection degree IP65.



    Mechanical drawing:
    100 Watt Polycrystalline Solar Panel 1050*666*30 Mm High Ammonia And Salt Mist Resistance



    Product Details:

    Model U90P-12 U95P-12 U100P-12
    Peak Power (W) 90±3% 90±3% 100±3%
    Open circuit voltage (V) 21.6 21.6 21.6
    Peak Voltage (V) 18.0 18.0 18.0
    peak current (A) 5.00 5.28 5.56
    Short-circuit current (A) 5.45 5.75 6.05
    Maximum overcurrent (A) 10A
    Maximum system voltage (V) 1000V DC
    Rated operating temperature 48±2°C
    Working temperature range -40°C- +85°C
    Current temperature coefficient 0.1%/°C
    Voltage temperature coefficient -0.37%/°C
    Power Temperature Coefficient -0.45%/°C
    Solar Cell 156*109*0.19mm
    Number of cells 36 pcs
    Size 1050*666*30mm
    Weight 10.0 kgs
    Surface Packaging Low iron tempered glass/3.2mm
    Sealant Ethylene Vinyl Acetate (EVA)
    Border Anodized Aluminum/Silver
    Junction Box Waterproof Level ≥IP65
    Pre-wind pressure 5400Pa
    Back wind pressure 2400Pa
    Maximum hail impact 25mm/ 23m/s



    Our advantage:

    • High quality products and affordable prices.
    • Energy saving, environmental-friendly, Safty, No pollution.
    • Advanced technology, strict quality control system.
    • Easy installation, safe operation, free maintenance.
    • 10-year product warranty,12-year warranty at 90% power output,25-year warranty at 80% power output.
    • Quality in priority, clients the upmost.
    • Application class A.



    Polycrystalline Solar Panel Application:

    100 Watt Polycrystalline Solar Panel 1050*666*30 Mm High Ammonia And Salt Mist Resistance
