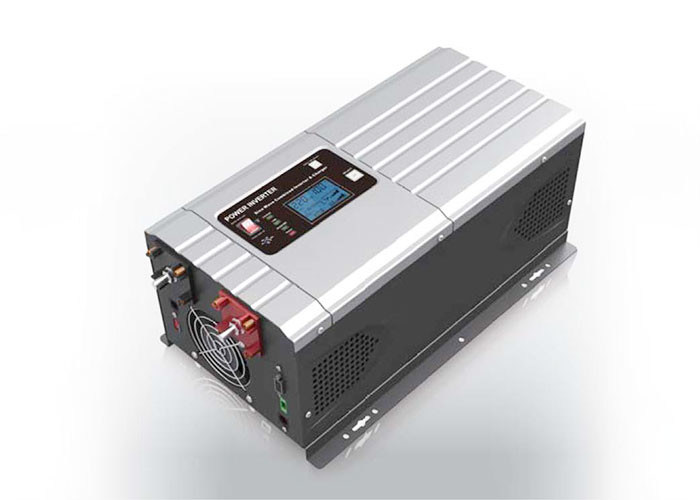

Commercial Low Frequency Power Inverter 1KW - 6KW With RS232 Communication Port

Commercial Low Frequency Power Inverter 1KW - 6KW With RS232 Communication Port

    • Commercial  Low Frequency Power Inverter 1KW - 6KW With RS232 Communication Port
    • Commercial  Low Frequency Power Inverter 1KW - 6KW With RS232 Communication Port
    • Commercial  Low Frequency Power Inverter 1KW - 6KW With RS232 Communication Port
    • Commercial  Low Frequency Power Inverter 1KW - 6KW With RS232 Communication Port
  • Commercial  Low Frequency Power Inverter 1KW - 6KW With RS232 Communication Port

    Product Details:

    Place of Origin: China
    Brand Name: URILIC
    Certification: CE,UL,ISO9001
    Model Number: 1KW, 1.5KW, 2KW, 3KW, 4KW, 5KW, 6KW

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Plywood
    Delivery Time: 7 working days after received payment
    Payment Terms: T/T
    Supply Ability: 1000 sets/ month
    Contact Now
    Detailed Product Description
    Product Name: Solar Wind Inverter Rated Power: 1KW, 1.5KW, 2KW, 3KW, 4KW, 5KW, 6KW
    Battery Voltage: 12V, 24V, 48V AC Outpu: 90V-140V/180V-260V
    Size Of 1KW To 3KW: 426*206*178 Mm Size Of 4KW To 6KW: 601*206*178 Mm
    Output Frequency: 50/60Hz Application: Off Grid System, Charge Inverter
    High Light:

    wind power inverter

    ,

    low frequency power inverter

    1KW to 6KW Low Frequency Power Inverter Solar Wind Inverter Pure Sine Wave Inverter

    Description:

    The 1KW to 6KW series is very economical pure sine wave inverter , AC charger inbuilt , from 35A to 70A ; Solar /AC priority is configurable, When setting solar priority , solar will charge batteries as first priority , and AC can also charge batteries when solar charge current too lower , in this way system charge is optimazed best . With pure copper transformer , it enables inverter to operate with all kinds of home appliances .



    Low Frequency Power Inverter Features:

    • LCD display , easy to read how inverter operates on LCD screen.

    • Compatible to generator.

    • 5-levels DIP switch , offering customized performance.

    • 9-levels battery selector , Enable to charge Li-thium , Gel , lead-acid battery.

    • DC(Solar)/AC prority optional.

    • 4 levels charge current adjustable.

    • With RS232 communication port.

    • With BTS & GTS , optimazing battery performance & start generator automatically.

    • Power saver Switch , Enable to minimize standby consumption.

     Commercial  Low Frequency Power Inverter 1KW - 6KW With RS232 Communication Port

    1. Switch(Reference form)

    2. Charge current adjustable

    3. AC Charge Indicator

    4. AC power Indicator

    5. Inverter Indicator

    6. Check inverter

    7. Battery type selector

    8. Charger Input Protection

    9. Inverter Output Protection

    10. AC I/O Connection

    11. AC Output 10A MAX

    12. Battery input

    13. Remote control

    14. DIP Switch (SW1-SW5)

    15. Fan

    16. RS232 communication port

    17. BTS

    18. AGS


    Product Details:

    MODEL 1KW 1.5KW 2KW 3KW
    Default Battery System Voltage 12VDC 24VDC 12VDC 24VDC 12VDC 24VDC 12VDC 24VDC 48VDC
    INVERTER OUTPUT
    Reted Power 1.0KW 1.5KW 2KW 3KW
    Surge Rating (20ms) 3.0KVA 4.5KVA 6.0KVA 9.0KVA
    Capable Of Starting Electric Motor 1HP 1HP 1HP 2HP
    Waveform Pure sine wave/ same as input (bypass mode)
    Nominal Output Voltage RMS 100V/110V/120VAC  220V/230V/240VAC(±10% RMS)
    Output Frequency 5OHz/60Hz±0.3 Hz
    Inverter Efficiency(Peak) >88%
    Line Mode Efficiency >95%
    Power Factor 1.0
    Typical Transfer Time 10ms(max) 10ms(max)
    AC INPUT
    Voltage 230VAC
    Selectable Voltage Range 96~132VAC  155~280VAC(For Personal Computers)
    Frequency Range 50Hz/60Hz (Auto sensing) 40~80Hz
    BATTERY
    Minimum Start Voltage 10.0VDC /10.5VDC for12VDC mode (*2 for 24VDC, )
    Low Battery Alarm 10.5VDC±0.3V for12VDC mode (*2 for 24VDC, )
    Low Battery Cutoff 10.0VDC±0.3V for12VDC mode (*2 for 24VDC, )
    High Voltage Alarm 16.0VDC±0.3V for12VDC mode (*2 for 24VDC, )
    High Battery Voltage Recover 15.5VDC±0.3V for12VDC mode (*2 for 24VDC, )
    Idle Consumption-Search Mode <25W when power saver on
    CHARGER
    Output Voltage Depends on battery tvpe
    Charger AC Input Breaker Rrating 10A 30A 30A 30A
    Overcharge Protection S.D. 15.7VDC for 12VDC mode (*2 for 24VDC mode)
    Maximum Charge Current 35A 20A 45A 25A 65A 35A 75A 45A 30A
    BYPASS & PROTECTION
    Input Voltage Waveform Sine wave (grid or generator)
    Nominal Input Frequency 50Hz or 60Hz
    Overload Protection (SMPS Load) Circuit breaker
    Output Short Circuit Protection Circuit breaker
    Bypass Breaker Rating 10A 30A 30A 30A 30A
    Max Bypass Current 30Amp
    MECHANICAL SPECIFICATIONS
    Mounting Wall mount
    Dimensions (W*H*D) 426*206*178 mm
    Net Weight (Solar CHG) kg 16.5 17 21.1 20 26 24.5 24.8
    Shipping Dimensions(W*H*D) 570*335*300mm
    Shipping Weight (Solar CHG) kg 19.3 20 24.1 22.8 29.1 27.5 27.5
    OTHER
    Operation   Temperature  Range 0°C to 40°C
    Storage   Temperature -15°C to 60°C
    Audible   Noise 60dB MAX
    Display LED+LCD
    Standard Warranty 1 year,2 or 3 years optional(IP20)


    Product Details:



    MODEL 4KW 5KW 6KW
    Default Battery System Voltage 24VDC 48VDC 24VDC 48VDC 24VDC 48VDC
    INVERTER OUTPUT
    Reted Power 4KW 5KW 6KW
    Surge Rating (20ms) 12KVA 15KVA 18KVA
    Capable Of Starting Electric Motor 2HP 3HP
    Waveform Pure sine wave/ same as input (bypass mode)
    Nominal Output Voltage RMS 100V/110V/120VAC  220V/230V/240VAC(±10% RMS) 220V/230V/240VAC(±10% RMS)
    Output Frequency 5OHz/60Hz±0.3 Hz
    Inverter Efficiency(Peak) >88%
    Line Mode Efficiency >95%
    Power Factor 1.0
    Typical Transfer Time 10ms(max) 10ms(max)
    AC INPUT
    Voltage 230VAC
    Selectable Voltage Range 96~132VAC  155~280VAC(For Personal Computers)
    Frequency Range 50Hz/60Hz (Auto sensing) 40~80Hz
    BATTERY
    Minimum Start Voltage 10.0VDC /10.5VDC for12VDC mode (*2 for 24VDC, )
    Low Battery Alarm 10.5VDC±0.3V for12VDC mode (*2 for 24VDC, )
    Low Battery Cutoff 10.0VDC±0.3V for12VDC mode (*2 for 24VDC, )
    High Voltage Alarm 16.0VDC±0.3V for12VDC mode (*2 for 24VDC, )
    High Battery Voltage Recover 15.5VDC±0.3V for12VDC mode (*2 for 24VDC, )
    Idle Consumption-Search Mode <25W when power saver on
    CHARGER
    Output Voltage Depends on battery tvpe
    Charger AC Input Breaker Rrating 40A
    Overcharge Protection S.D. 15.7VDC for 12VDC mode (*2 for 24VDC mode)
    Maximum Charge Current 65A 35A 70A 40A 75A 50A
    BYPASS & PROTECTION
    Input Voltage Waveform Sine wave (grid or generator)
    Nominal Input Frequency 50Hz or 60Hz
    Overload Protection (SMPS Load) Circuit breaker
    Output Short Circuit Protection Circuit breaker
    Bypass Breaker Rating 40A
    Max Bypass Current 30Amp
    MECHANICAL SPECIFICATIONS
    Mounting Wall mount
    Dimensions (W*H*D) 601*206*178
    Net Weight (Solar CHG) kg 38.2 35.8 45.2 45 45.2 45
    Shipping Dimensions(W*H*D) 750*335*300mm
    Shipping Weight (Solar CHG) kg 42.3 40 49.5 49.3 49.5 49.3
    OTHER
    Operation   Temperature  Range 0°C to 40°C
    Storage   Temperature -15°C to 60°C
    Audible   Noise 60dB MAX
    Display LED+LCD
    Standard Warranty 1 year,2 or 3 years optional(IP20)



    Solar Wind System Connection:

    Commercial  Low Frequency Power Inverter 1KW - 6KW With RS232 Communication Port
