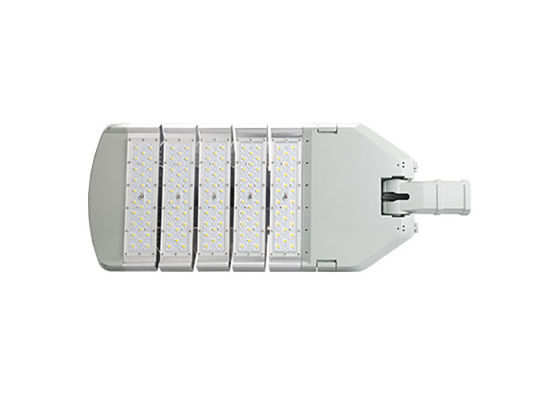

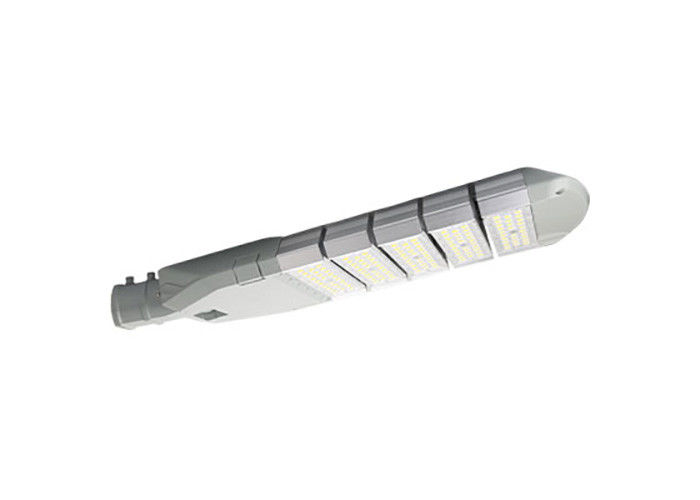

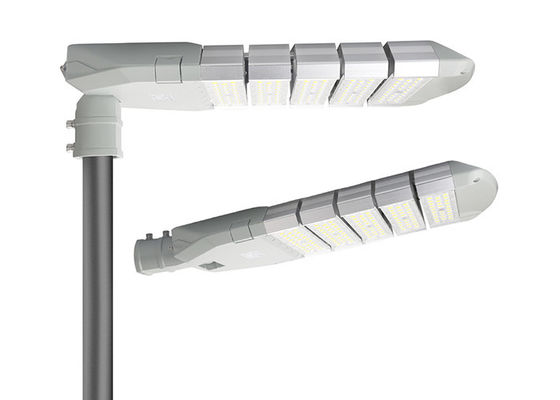

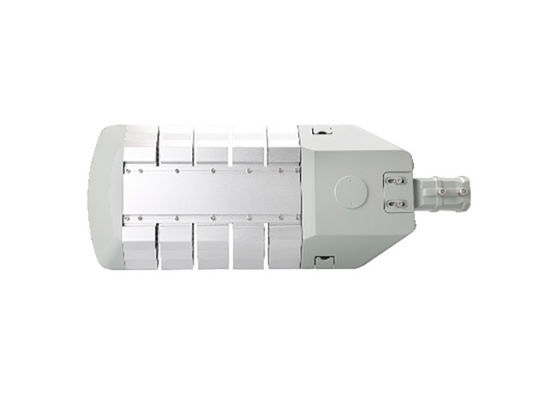

Outdoor High Power LED Street Light 240w AC 90-305V With Integrated Radiator

Product Details:

Place of Origin:	SHENZHEN
Brand Name:	URILIC
Certification:	CE,Rohs,CB/IP66,IK10,LM79,LM80
Model Number:	U-SL1605-240W

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Carton box
Delivery Time:	5-15 days
Payment Terms:	T/T
Supply Ability:	1000PCS/week

Contact Now

All Products

Solar Wind Hybrid System (20)

Hybrid Solar And Wind Power Generation (15)

Off Grid Solar And Wind Kits (10)

Maglev Vertical Axis Wind Turbine (9)

High Efficiency Solar Panels (11)

Monocrystalline Solar Module (16)

Polycrystalline Solar Panel (12)

Lead Acid Battery (13)

Off Grid Lithium Battery (13)

UFO LED High Bay Light (9)

Outdoor LED Flood Lights (36)

Wind And Solar Charge Controller (16)

Solar Wind Inverter (25)

Wind And Solar Hybrid Street Light System (22)

Off Grid Solar Power Systems (7)

On Grid Solar Power System (4)

High Power LED Street Light (36)

Light Pole Foundation (12)

Electrical Power Accessories (10)

Detailed Product Description

Product Name:	LED Street Light	Power:	240W
LEDs Qty.:	140pcs	Input Voltage:	AC 90-305V
Size Of Lamp:	839x328x90mm	Carton:	870x380x150mm
Gross Weight:	8.4kg	Size Of Light Pole:	Φ60mm
High Light:	high lumen led street light , led street light bulb

240w LED Street Light LED Street Light Manufacturers Outdoor Led Street Lights

Description:

LED street light is made of heavy-duty die-cast aluminum with integrated radiator and tempered glass lens. It is made of high-quality materials. Good heat dissipation to ensure that street lights work normally for a long time. The LED street lamp is manufactured in strict accordance with high standards to ensure safe and reliable use. Designed by a professional industrial design team, it can be applied to wind and solar hybrid street lighting systems with high-end, stylish and atmospheric appearance. Good products illuminate our beautiful life. Welcome to order.

Outdoor High Power LED Street Light 240w AC 90-305V With Integrated Radiator

Mechanical Drawing:

Product Details:

Model	U-SL1605
Power	240W
Power efficiency	90%
PF	>0.95
Power supply	Bridgelux/MOSO/MEANWELL/SOSEN
Working voltage	90-305V/249-528V AC,50-60Hz
LEDs	5050 LED
CRI	Ra>70
Luminous efficiency	155-160lm/w
LEDs qty	140 pcs
Luminous Flux	36791 lm
CCT	3000K/4000K/5000K/6000K
Beam angle	Type I,II,III
IP/IK rate	IP66,IK10
Lifespan	>50,000H
Inclination angle	Horiziontal & Vertical ±15°
Housing Material	Aluminium 6063-T5
Working Temperature	-40℃~50℃, 20%~90% H.R.
Storage Temperature	-40℃~85℃, 10%~90% H.R.
Size of Lamp	83932890 (±5mm)
Carton	870380150 (±5mm)
N.W.	8.4 kg (±0.1kg)
Size of Light Pole	Φ60 mm

Quick Detail:

Its own characteristics-one-way light, no light diffusion, to ensure lighting efficiency.
The LED has reached 130-160lm / W, and there is still a lot of room for development. The theoretical value is 360lm / W. The luminous efficiency of high-pressure sodium lamps increases with power. Therefore, the overall luminous efficacy of LED street lights is stronger than that of high-pressure sodium lamps; (This overall luminous efficiency is theoretical. Actually, the luminous efficiency of high-pressure sodium lamps above 250W is higher than that of LED lamps. ).
The light decay is small, the light decay is less than 3% in one year, and it still meets the road requirements after 10 years of use, while the high-pressure sodium light decays, and it has dropped by more than 30% in about one year. Therefore, the LED street lights are designed in terms of power. Can be lower than HPS.
Long life: can be used for more than 50,000 hours, providing three years of quality assurance. The disadvantage is that the life of the power supply is not guaranteed.
Easy installation: no need to bury cables or rectifiers, directly connect to the lamp pole or nest the light source into the original lamp housing.
Reliable quality: All circuit power supplies use high-quality components, and each LED has separate overcurrent protection, so there is no need to worry about damage.
LED does not contain harmful metal mercury, which will not cause harm to the environment when it is scrapped.

Outdoor High Power LED Street Light 240w AC 90-305V With Integrated Radiator

Distribution Curve:

Outdoor High Power LED Street Light 240w AC 90-305V With Integrated Radiator

Installation Diagram:

Outdoor High Power LED Street Light 240w AC 90-305V With Integrated Radiator

Open the back board and back cover;
Connect the light wires and grid wires;
Insert the lamp pole into the light, lamp pole dia φ60mm;
Make sure the light is steady, lock the push board M10 Hexagon socket head cap screws, fix the light
tightly onto the pole arm;
Close the back board, then back cover. Done;
Connect light power supply wire and grid wire according to above picture, blue to N, brown to L,
yellow&green to E;

Applications:

LED Street Light is widely used in urban expressways, highways, trunk roads, secondary roads, access roads, streets, factories, schools, gardens, parks, community, garden plaza and other street lighting.
