| Place of Origin: | China |
| Brand Name: | URILIC |
| Certification: | CE,UL,ISO9001 |
| Model Number: | 1500W |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood |
| Delivery Time: | 7 working days after received payment |
| Payment Terms: | T/T |
| Supply Ability: | 500 sets/ month |
| Product Name: | Wind Turbine Grid Tie Inverter | Rated Power: | 2000W |
|---|---|---|---|
| DC Input: | 46V-90V，for 48V/96V Wind Turbine | AC Outpu: | 90V-140V/180V-260V |
| Size: | 433*196*88 Mm | Weight: | 7.6kg |
| Output Frequency: | 50/60Hz | Application: | On Grid System |
| High Light: | wind power inverter,low frequency power inverter |
||
Wind Turbine Grid Tie Inverter 2000W Solar Wind Inverter Pure Sine Wave Inverter
Description:
This grid-connected fan inverter has a built-in bridge rectifier and unloading controller that maintains the speed of the wind turbine so that the wind turbine’s voltage is always within the rated operating voltage range of the inverter. It also has a high voltage protection function. When the wind is too large, the unloading control system cannot maintain the output voltage of the wind turbine, and the controller will disconnect the wind turbine.
The wind energy grid-connected inverter can directly convert the wind energy of the connected fan into electric energy and upload it to the home grid without accessing additional equipment. The inverter output can be directly connected to any socket in the home to complete the connection of the entire system. The inverter controls the energy generated by the fan, adjusts the voltage frequency and voltage phase, and the pure sine wave of its output is successfully integrated into the grid.
Product Details:
|
Product parameters |
|
|---|---|
|
Wind Energy Grid Inverter Model |
2000W |
|
rated AC output power |
2000W |
|
DC voltage range (this test point is on the rectifier bridge) |
45‐90V |
|
Maximum output power factor |
99% |
|
Back Pressure Protection |
Fuse |
|
AC standard voltage range |
90～160VAC/180～260VAC |
|
AC frequency range |
46Hz~65Hz |
|
phase difference |
<1% |
|
Island Effect Protection |
Yes |
|
Output short circuit protection |
Limited flow |
|
Show |
LED |
|
Cooling |
Fan |
|
Night feature |
<1W |
|
Environmental temperature range |
‐10°C～45°C |
|
Waterproof |
Indoor installation |
|
Unloading resistance parameter |
R=V2/P=54*54/600=4.9(ohm) |
|
Electromagnetic compatibility |
EN50081.part1 EN50082.part1 |
|
Grid disturbance |
EN6100‐3‐2 EN60950‐1 |
|
Charging voltage drop |
<0.2V |
|
Grid Detection |
DIN VDE 126 |
|
Package Specifications |
|
|
Net weight |
7.0kg |
|
Gross weight |
7.6kg |
|
Size (L*W*H)mm |
433*196*88 mm |
|
Package size (L*W*H)mm |
535*325*360 mm (2pcs) |
|
Package gross weight |
15.8kg |
Product appearance:

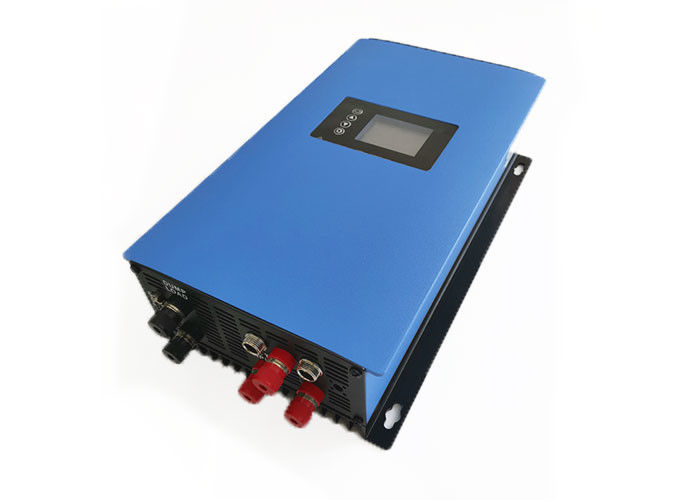

The left end of the inverter has five terminals, three red terminals are used to connect the three-phase power of the fan, and two black terminals are connected to the unloading resistor. There are also 4 indicators, 3 green indicators and 1 red indicator. When a grid access is detected, the three green lights begin to cycle. This indicates that the inverter is operating under normal conditions. The blinking speed of the indicator light is calculated based on the output power. The higher the output power, the faster the speed. If the grid input is not detected, the red indicator light will be on, and the inverter will not output power. This is called “island protection”. When all household load power is greater than the inverter's output power, all loads will preferentially use the power generated by the inverter, which is insufficient to be replenished by the grid. When all the household load power is less than the inverter's output power, the power from the remaining inverters will be automatically uploaded to the grid, causing the meter to reverse. (It is recommended to install a separate meter). If it is necessary to connect multiple inverters to the grid, you can choose to connect in parallel with the first inverter and then connect to the grid.
Recommendation: When installing the first inverter to the grid, it is recommended to operate by a licensed electrician.
Design Features:
Direct connection to AC output wind turbines
Unique Follow-up MPPT
Built-in rectifier
Multiple intelligent protection to ensure safe use.
Directly connect to three phase wind turbine, without regulator
Internal unloading controller
Built-in wind protection device
Easy to install and easy to operate.
Wind turbine on grid inverter connected to the grid
