| Place of Origin: | China |
| Brand Name: | URILIC |
| Certification: | CE,UL,ISO9001 |
| Model Number: | 2.5KW, 3KW, 3.6KW, 4.2KW, 5KW, 5.5KW, 6KW |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood |
| Delivery Time: | 7 working days after received payment |
| Payment Terms: | T/T |
| Supply Ability: | 1000 sets/ month |
| Product Name: | Solar Wind Inverter | Rated Power: | 2.5KW, 3KW, 3.6KW, 4.2KW, 5KW, 5.5KW, 6KW |
|---|---|---|---|
| Display: | LCD | AC Outpu: | 220V/230V/240VAC |
| Size: | 271*359*141 Mm (2.5KW-3KW) | Weight: | 6.4 Kg (0.75KW-2KW), 9.1 Kg (2.5KW-3KW) |
| Warranty: | 5 Years / 10 Years | Application: | PV Grid-connected Inverter System |
| AC Connection: | Single Phase | Type: | Residential Inverter |
| High Light: | wind power inverter,3 phase grid tie solar inverter |
||

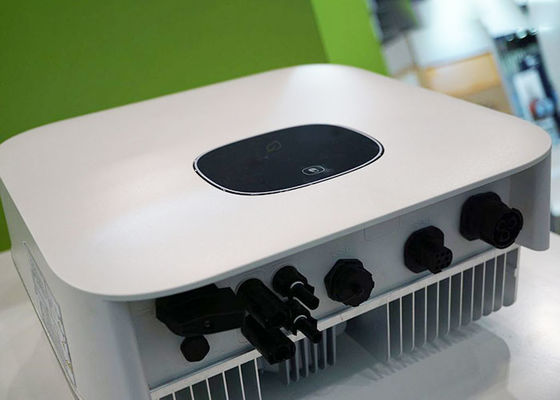

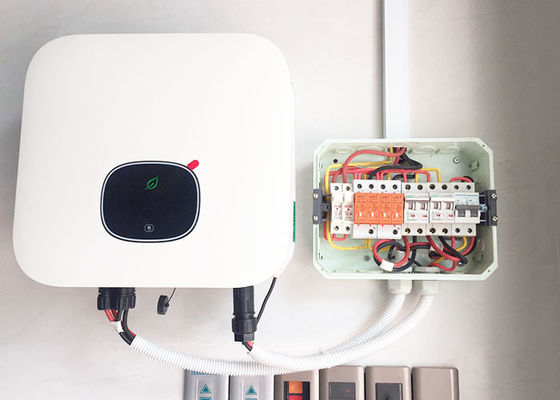

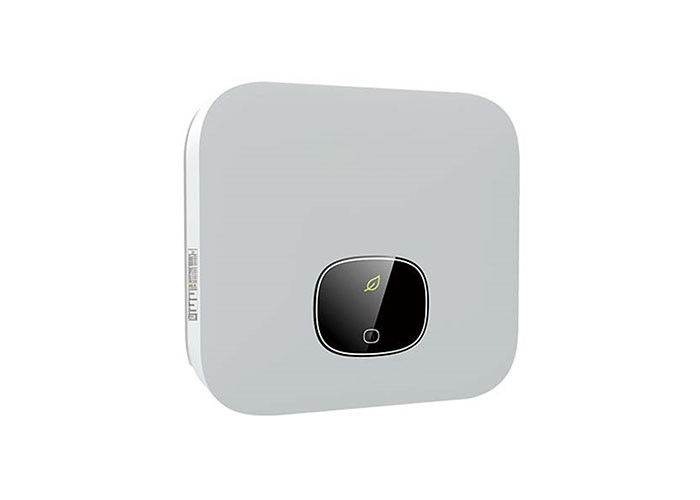

2.5KW to 6KW Single Phase Grid Tied Inverter Solar Wind Inverter Residential Inverters
Description:
Leading edge technology. Double MPPT Tracker, MPPT tracking accuracy more than 99.5%. Max. Efficiency 97.9%, European Efficiency 97.4%. Integrated DC switch for added safety protection. Transformerless design and high power density, offer lighter and more convenient installation. Power factor continuously adjustable. Flexible communication connection, support RF, WiFi, Ethernet. Comply with European, Asia-Pacific safety regulations.
Single Phase Grid Tied Inverter Features:
Product Details (2.5KW to 3.6KW):
| Datasheet | MIN2500TL-X | MIN3000TL-X | MIN3600TL-X |
| Input Data | |||
| Max. recommended PV power (for module STC) | 3500W | 4200W | 5040W |
| Max. DC voltage | 500V | 500V | 550V |
| Start voltage | 100V | ||
| MPPT voltage range/ nominal voltage | 80V-500V /360V | 80V-500V /360V | 80V-550V /360V |
| Max. input current | 12.5A/12.5A | ||
| Max. short-circuit current | 16A/16A | ||
| Number of independent MPP trackers / strings per MPP tracker | 2/1 | ||
| Output (AC) | |||
| Rated AC output power | 2500W | 3000W | 3600W |
| Max. AC apparent power | 2500VA | 3000VA | 3600VA |
| Max. output current | 11.3A | 13.6A | 16A |
| AC nominal voltage | 230V(160V-300V) | ||
| AC grid frequency | 50Hz/60Hz,±5Hz | ||
| Adjustable power factor | 0.8leading… | ||
| 0.8lagging | |||
| THDi | <3% | ||
| AC connection | Single phase | ||
| Effiency | |||
| Max.efficiency | 98.2% | 98.2% | 98.2% |
| Euro weighted efficiency | 97.1% | 97.1% | 97.2% |
| MPPT efficiency | 99.9% | ||
| Protection Devices | |||
| DC reverse polarity protection | yes | ||
| DC switch | yes | ||
| DC surge protection | Type II | ||
| Output over current protection | yes | ||
| AC surge protection-varistor | yes | ||
| Ground fault monitoring | yes | ||
| Grid monitoring | yes | ||
| Integrated all - pole sensitive leakage current monitoring unit | yes | ||
| General Data | |||
| Dimensions (W / H / D) in mm | 375/350/160 | ||
| Weight | 10.8KG | ||
| Operating temperature range | -25°C ... +60°C | ||
| Noise emission (typical) | <35 dB(A) | ||
| Altitude | 4000m | ||
| Self-Consumption night | < 1W | ||
| Topology | Transformerless | ||
| Cooling concept | Nature Convection | ||
| Environmental Protection Rating | IP65 | ||
| Relative humidity | 100% | ||
| Features | |||

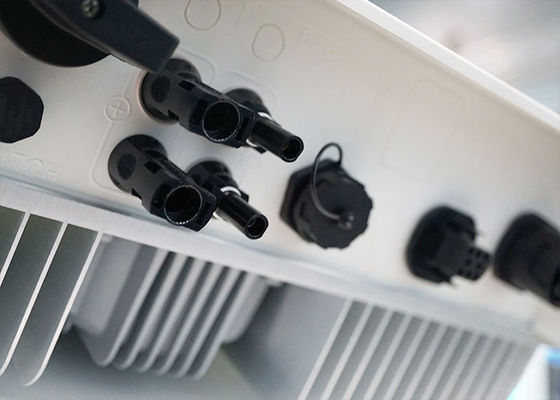

| DC connection | H4/MC4(opt) | ||
| AC connection | Connector | ||
| Display | OLED+LED | ||
| Interfaces: RS485 / USB / | yes / yes / | ||
| Wi-Fi/ 4G / RF | opt / opt / opt | ||
| Warranty: 5 years / 10 years | yes / opt | ||
Product Details (4.2KW to 6KW):
| Datasheet | MIN 4200TL-X | MIN4600TL-X | MIN5000TL-X | MIN6000TL-X |
| Input Data | ||||
| Max. recommended PV power (for module STC) | 5880W | 6440W | 7000W | 8100W |
| Max. DC voltage | 550V | 550V | 550V | 550V |
| Start voltage | 100V | |||
| MPPT voltage range/ nominal voltage | 80V-550V /360V | 80V-550V /360V | 80V-550V /360V | 80V-550V /360V |
| Max. input current | 12.5A/12.5A | |||
| Max. short-circuit current | 16A/16A | |||
| Number of independent MPP trackers / strings per MPP tracker | 2/1 | |||
| Output (AC) | ||||
| Rated AC output power | 4200W | 4600W | 5000W | 6000W |
| Max. AC apparent power | 4200VA | 4600VA | 5000VA | 6000VA |
| Max. output current | 19A | 20.9A | 22.7A | 27.2A |
| AC nominal voltage | 230V(160V-300V) | |||
| AC grid frequency | 50Hz/60Hz,±5Hz | |||
| Adjustable power factor | 0.8leading… | |||
| 0.8lagging | ||||
| THDi | <3% | |||
| AC connection | Single phase | |||
| Effiency | ||||
| Max.efficiency | 98.4% | 98.4% | 98.4% | 98.4% |
| Euro weighted efficiency | 97.5% | 97.5% | 97.5% | 97.5% |
| MPPT efficiency | 99.9% | |||
| Protection Devices | ||||
| DC reverse polarity protection | yes | |||
| DC switch | yes | |||
| DC surge protection | Type II | |||
| Output over current protection | yes | |||
| AC surge protection-varistor | yes | |||
| Ground fault monitoring | yes | |||
| Grid monitoring | yes | |||
| Integrated all - pole sensitive leakage current monitoring unit | yes | |||
| General Data | ||||
| Dimensions (W / H / D) in mm | 375/350/160 | |||
| Weight | 10.8KG | |||
| Operating temperature range | -25°C ... +60°C | |||
| Noise emission (typical) | <35 dB(A) | |||
| Altitude | 4000m | |||
| Self-Consumption night | < 1W | |||
| Topology | Transformerless | |||
| Cooling concept | Nature Convection | |||
| Environmental Protection Rating | IP65 | |||
| Relative humidity | 100% | |||
| Features | ||||
| DC connection | H4/MC4(opt) | |||
| AC connection | Connector | |||
| Display | OLED+LED | |||
| Interfaces: RS485 / USB / | yes / yes / | |||
| Wi-Fi/ 4G / RF | opt / opt / opt | |||
| Warranty: 5 years / 10 years | yes / opt | |||
