| Place of Origin: | China |
| Brand Name: | URILIC |
| Certification: | ISO9001,CE,UL |
| Model Number: | UF370M / UF375M Monocrystalline Flexible |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood |
| Delivery Time: | 3 working days after received full payment |
| Payment Terms: | T/T |
| Supply Ability: | 1000 sets per month |
| Product Name: | High Efficiency Solar Panels | Power: | 370W-375W |
|---|---|---|---|
| Module Dimensions: | 2002*1000*2mm | Weight: | 5.8kgs |
| Number Of Cells: | 72 Pcs | Backsheet: | White |
| Frame: | Frameless | Usage: | Onboard, Automotive, Tourist Car, Golf Cart |

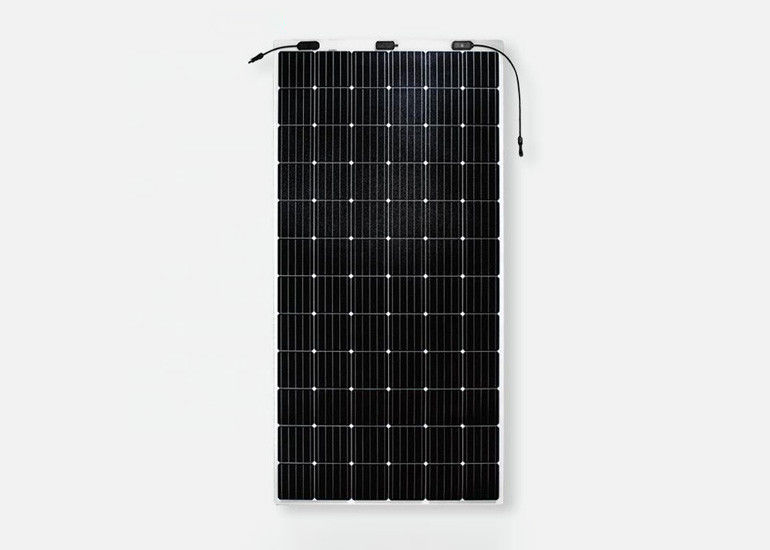

Flexible Solar Module 72 Cell Monocrystalline Module 375W Lightweight Material
Description:
The 370W-375W monocrystalline flexible solar panel is made of tough material, anti-extrusion, light weight, thin thickness, soft and bendable, and good low-light performance. It is widely used in ships, automobiles, tourist vehicles, golf carts, etc.
Product Details:
| ELECTRICAL CHARACTERISTICS | ||
| STC | UF375M | UF370M |
| Maximum Power (Pmax ) | 375 | 370 |
| Maximum Power Voltage (Vmp ) | 40.2 | 39.9 |
| Maximum Power Current (Imp ) | 9.33 | 9.28 |
| Open-circuit Voltage (Voc ) | 48.6 | 48.4 |
| Short-circuit Current (Isc ) | 9.86 | 9.81 |
| Module Efficiency(%) | 18.7 | 18.5 |
| Operating Temperature | -40 ℃ to 85 ℃ | |
| Maximum System Voltage | 1000 V DC (IEC) | |
| Maximum Series Fuse Rating | 20 A | |
| Application Class | Class A | |
| Power Tolerance | 0/+5 W | |
| STC: Irradiance 1000W/m2 , Cell temperature 25℃, AM=1.5. Tolerances of Pmax , Voc and Isc are within ±5% | ||
| NMOT | UF375M | UF370M |
| Maximum Power (Pmax ) | 282 | 278 |
| Maximum Power Voltage (Vmp ) | 37.0 | 36.8 |
| Maximum Power Current (Imp ) | 7.63 | 7.56 |
| Open-circuit Voltage (Voc ) | 45.3 | 45.1 |
| Short-circuit Current (Isc ) | 8.07 | 8.00 |
| NMOT: Irradiance 800W/m2 , Ambient temperature 20℃,AM=1.5, Wind speed 1 m/s. | ||
| MECHANICAL CHARACTERISTICS | ||
| Solar Cell | Monocrystalline silicon (6 inches) | |
| No. of Cells | 72 (6×12) | |
| Module Dimensions | 2002×1000×2 mm | |
| Weight | 5.8 kgs | |
| Backsheet | White | |
| Frame | Frameless | |
| J-box | IP 68 rated | |
| Output Cables | Photovoltaic technology cable 4.0 mm2 , (+)150 / (-)450 mm | |
| Connector | MC4 compatible | |
| PACKAGING CONFIGURATION | ||
| 20' GP | 40' HC | |
| Module per pallet | 66 | 66 |
| Pieces per container | 330 | 1452 |
Dimensions:
Solar Panels Features:
Ultra-light: Through replacement of the glass and optimization of the frame eArche weighs as 70% less than conventional
PV panels.

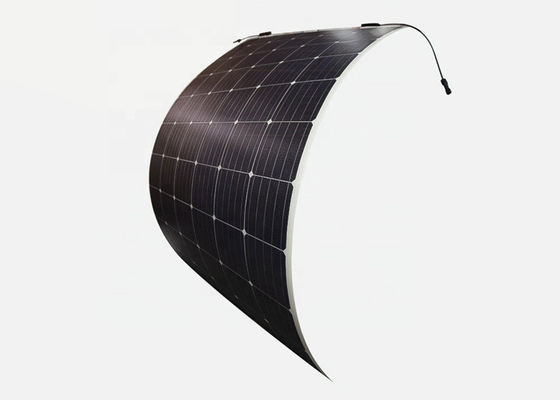

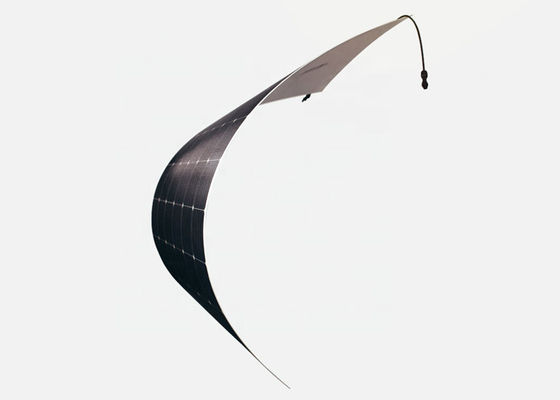

Flexible: It combines a unique, patented material with other industry-leading technologies to produce superior flexible
crystalline-silicon panel which can be installed on curved surface.
Transportation: The panel innovative frame and low weight will very significantly reduce the cost of transportation.
Easy Installation: It can reduce installation cost by up to 50% through the use of re-engineered components, ease
of handling and faster installation.
Aesthetics: Aesthetically pleasing design with patented materials and sophisticated manufacturing process results in
a highefficiency, attractive panel, with no light pollution, PID-free operation and high levels of safety.
Deployment: Ultra-light weight, flexibility and customizable size make panel the best choice to change the way how solar
is deployed in the market and bring added value to special applications.
Durability: The panels are certified to withstand maximum test load (2400 Pascal), while special materials and stringent
quality control ensure panel longevity.
