Home ProductsMaglev Vertical Axis Wind Turbine

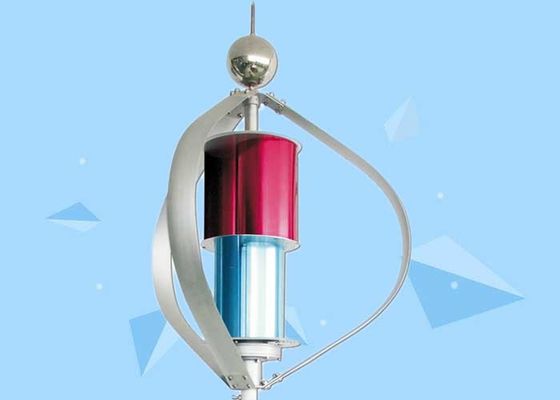

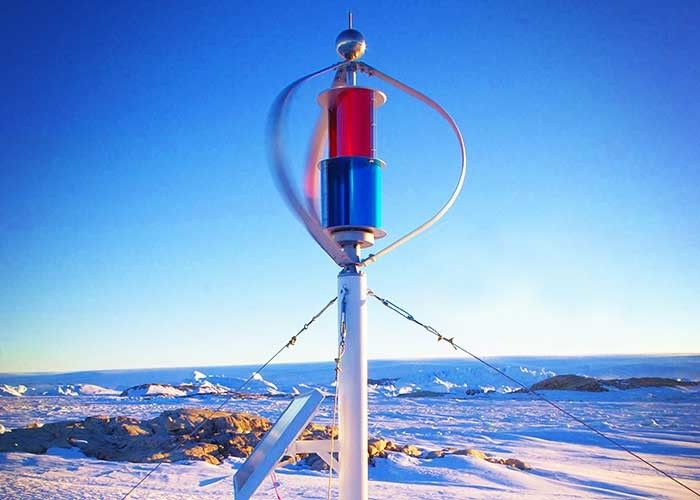

Industrial Maglev Vertical Axis Wind Turbine 500W 12V More Than 20 Years Design Life

Industrial Maglev Vertical Axis Wind Turbine 500W 12V More Than 20 Years Design Life

    • Industrial  Maglev Vertical Axis Wind Turbine 500W 12V More Than 20 Years Design Life
    • Industrial  Maglev Vertical Axis Wind Turbine 500W 12V More Than 20 Years Design Life
  • Industrial  Maglev Vertical Axis Wind Turbine 500W 12V More Than 20 Years Design Life

    Product Details:

    Place of Origin: China
    Brand Name: URILIC
    Certification: CE, ISO9001, IEC61400
    Model Number: 500W

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Plywood
    Delivery Time: 7 working days after received payment
    Payment Terms: T/T
    Supply Ability: 1000 sets/ month
    Contact Now
    Detailed Product Description
    Name: Maglev Vertical Axis Wind Turbine Color: Red/Blue
    Type: Vertical Axis Rated Voltage: 12/24V
    Rated Power: 500W Blade Material: Aluminum Alloy
    Start-up Wind Speed: 1m/s Blades Number: 3pcs
    High Light:

    hybrid wind turbine

    ,

    residential vertical wind turbine

    Maglev Vertical Axis Wind Turbine 500W12V Aluminum Alloy Blade



    Quick Detail:

    Name :50012 Maglev Vertical Axis Wind Turbine
    Application :street lighting system and Home Use
    Color:Red & blue, Sliver and customrized
    Magnetic levitation technology
    Independent of the direction of the wind
    Startup at low wind speed of 1m/s
    Higher efficiency compared to traditional HAWT
    Works even in turbulence
    Visually pleasing appearance
    Turbine construction is resistant to gale 60m/s (132MPH)
    Robustness and adaptation to all possible environmental conditions thanks to material of aluminum alloy or stainless steel
    Design life: at least 20 years
    Noise: Tested by China National Machinery Quality Inspection Centre at 12m/s: <40db



    Description:

    The Maglev Vertical Axis Wind Turbine undergoes a continuous improvement process, which incorporates exterior design, utility design, electrical engineering, dynamic engineering, power mechanics, aviation air engineering, wind tunnel testing, lightening protection, computer simulation techniques and other multiple specialities.



    Design Features:

    • No gear design: no need to replace worn or broken teeth
    • Brushless: no high-failure items and required motor brushes, regularly replaced
    • Bearing design: no lubrication or replacement of worn bearings
    • No yaw or collapse mechanism: Allows peak power output at any wind speed
    • No cogging torque when cutting at low wind speed
    • Direct Drive: Extend Product Lifetime
    • The blade can start to rotate only at a wind speed of 1 m/s
    • Space-saving aerodynamic body
    • Industrial quality structure



    Product Details:

    Rated power 500W
    Number of blades 3
    Leaf material Aluminum alloy
    Wind Generator Weight 27kg
    Height/Diameter (mm) 1100/Φ1250
    Ambient Temperature -40~50°C
    Voltage 12V
    Start wind speed 1.3 m/s
    cut into the wind 3 m/s
    Rated wind speed 13 m/s
    Cut out wind speed 15 m/s
    Can withstand extreme wind speed 65 m/s



    Maglev Vertical Axis Wind Turbine Packaging:

    Maglev Vertical Axis Wind Turbine Package 500W



    Maglev Vertical Axis Wind Turbine Application Range: Remote Area, Independent house, Comespondence base, Ships power source, Electricity of Agriculture and fishery, Street light, Electricity of community, Landscape education of windpower and electricity, System of wing-hydraulic generation, Trafic signal, Building of public electricity, Army island independence.

    Maglev Vertical Axis Wind Turbine Application 500W



    Maglev Vertical Axis Wind Turbine Street Light Case​:

    Industrial  Maglev Vertical Axis Wind Turbine 500W 12V More Than 20 Years Design Life

    The wind and solar hybrid street light road lighting is a power generation application system that uses the energy generated by the solar panel assembly and the wind power generator to be stored in the battery pack and uses the electrical energy for road illumination. It is a wind Power generator and a solar panel assembly that jointly generating electricity.



    Our 500W Maglev wind turbine mainly designed for hybrid street lighting use, the wind turbine is easy starting up, light weight and small in size. While the hybrid street lighting system installed, you can find it’s a beautiful view for the urban city as well as the following benefits.
