Place of Origin: | China |
Brand Name: | URILIC |
Certification: | CE , MEA , PEA |
Model Number: | 30KW, 50KW, 100KW, 120KW, 150KW |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | Plywood |
Delivery Time: | 7 working days after received payment |
Payment Terms: | T/T |
Supply Ability: | 100 sets/ month |
Product Name: | Hybrid Energy System | Rated Power: | 30KW~150KW |
---|---|---|---|
Rated Voltage: | 400V | Rated Frequency: | 50HZ / 60HZ |
Weight: | 505kg~1230kg | Communication: | RS485/CAN |
Protection Degree: | IP20 | Display: | Touch Screen |

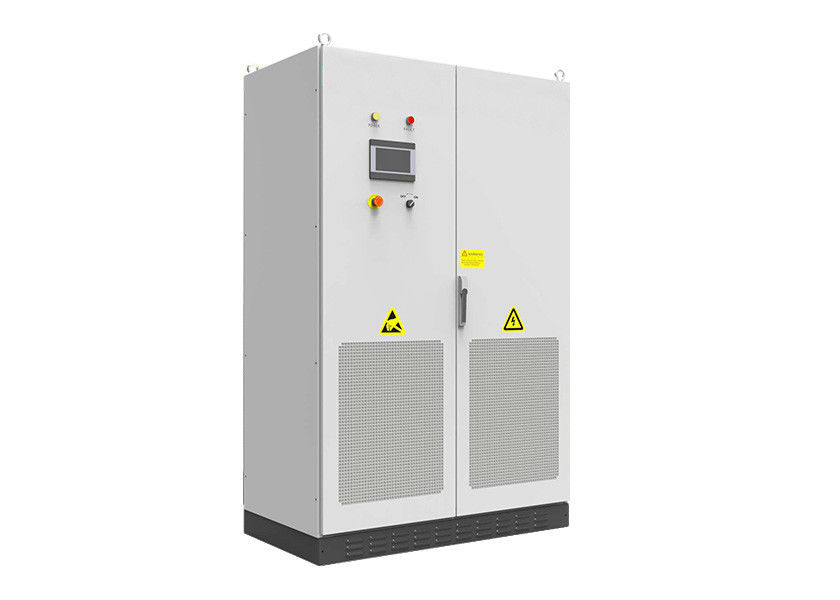

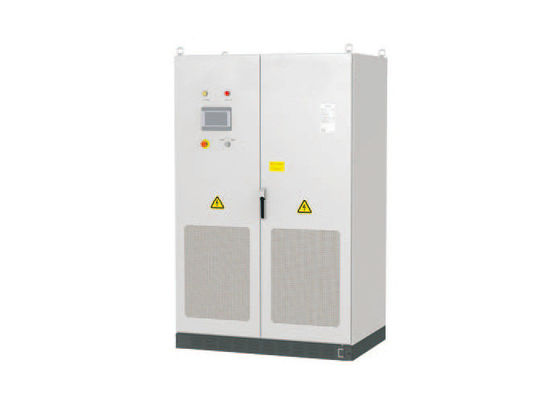

Hybrid Energy System Energy Storage Grid Off Grid All In One Machine U-HES30-150
Features:
All-in-one solution supports simultaneous access to load, battery, power grid, and photovoltaic
Flexible support for lithium batteries and lead-acid batteries
Perfect protection function to protect inverter and battery
Touch screen, easy to use
The photovoltaic controller can be expanded to facilitate flexible configuration of photovoltaic capacity
Multiple working modes can be flexibly set
Battery capacity and discharge time prediction
CAN and RS485 interface, Modbus communication protocol
Seamlessly switch from off-grid state to provide uninterrupted supply of load
Built-in isolation transformer guarantees excellent power quality
Datasheet:
Model |
U-HES30 |
U-HES50 |
U-HES100 | U-HES120 | U-HES150 |
AC (Grid-connected) |
|||||
Apparent power |
33kVA |
55kVA | 110kVA | 132kVA | 5kVA |
Rated power |
30kVA |
50kVA |
100kVA | 120kVA | 150kVA |
Rated voltage |
400V |
400V |
400V | 400V | 400V |
Rated current |
43A |
72A | 144A | 173A | 217A |
Voltage range |
360V - 440V |
360V - 440V |
360V - 440V | 360V - 440V | 360V - 440V |
Rated frequency |
50/60Hz |
50/60Hz |
50/60Hz | 50/60Hz | 50/60Hz |
Frequency range |
45~55/55~65Hz |
45~55/55~65Hz | 45~55/55~65Hz | 45~55/55~65Hz | 45~55/55~65Hz |
THDI | <3% | <3% | <3% | <3% | <3% |
PF | 0.8lagging~0.8leading | ||||
AC connection | 3/N/PE | 3/N/PE | 3/N/PE | 3/N/PE | 3/N/PE |
AC input | 60kVA | 100kVA | 200kVA | 240kVA | 240kVA |
AC (Off-grid) |
|||||
Apparent power |
33kVA |
55kVA |
110kVA | 132kVA | 165kVA |
Rated power |
30kW |
50kW |
100kW | 120kW | 150kW |
Rated voltage |
400V |
400 V |
400V | 400V | 400V |
Rated current |
43A |
72A |
144A | 173A | 217A |
THDU |
≤2%linear |
≤2%linear | ≤2%linear | ≤2%linear | ≤2%linear |
Rated frequency |
50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
Overload capability |
110%-10 mins 120%-1 min |
110%-10 mins 120%-1 min |
110%-10 mins 120%-1 min |
110%-10 mins 120%-1 min |
110%-10 mins 120%-1 min |
DC (Battery and PV) |
|||||
Max PV open-circuit voltage |
1000V DC |
1000V DC | 1000V DC | 1000V DC | 1000V DC |
MAX PV power |
45kWp |
75kWp | 150kWp | 180kWp | 225kWp |
PV MPPT voltage range |
480V-800V DC | 480V-800V DC | 480V-800V DC | 480V-800V DC | 480V-800V DC |
Battery voltage range |
450V-600V | 500V-600V | 500V-600V | 517V-600V | 500V-600V |
Battery voltage range |
352-600V | 352-600V | 352-600V | 352-600V | 352-600V |
Max.charge power |
45kW | 75kW | 150kW | 180kW | 225kW |
Max.discharge power |
33kW | 55kW | 110kW | 132kW | 165kW |
Max.charge current |
100A | 150A | 300A | 350A | 450A |
Max.discharge current |
93A | 156A | 313A | 374A | 467A |
General Information |
|||||
Protection degree |
IP20 |
IP20 | IP20 | IP20 | IP20 |
Noise emission |
<65dB(A)@1m |
<65dB(A)@1m | <65dB(A)@1m | <65dB(A)@1m | <65dB(A)@1m |
Operating temperature |
-25 °C~+55 °C | -25 °C~+55 °C | -25 °C~+55 °C | -25 °C~+55 °C | -25 °C~+55 °C |
Cooling |
Forced-air | Forced-air | Forced-air | Forced-air | Forced-air |
Relative humidity |
0-95% non-condensing | 0-95% non-condensing | 0-95% non-condensing | 0-95% non-condensing | 0-95% non-condensing |
Maximum altitude |
6000m (derate over 3000m) | 6000m (derate over 3000m) | 6000m (derate over 3000m) | 6000m (derate over 3000m) | 6000m (derate over 3000m) |
Dimension (W/H/D) |
950/1860/750mm | 950/1860/750mm | 1200/1900/800mm | 1200/1900/800mm | 1200/1900/800mm |
Weight |
505kg | 610kg | 948kg | 1025kg | 1230kg |
Build-in transformer |
Yes | Yes | Yes | Yes | Yes |
Transfer between on/off grid |
Automatic≤10ms | Automatic≤10ms | Automatic≤10ms | Automatic≤10ms | Automatic≤10ms |
Standby consumption |
<30W | <30W | <30W | <30W | <30W |
Communication |
|||||
Display |
Touch screen | Touch screen | Touch screen | Touch screen | Touch screen |
Communication |
RS485/CAN | RS485/CAN | RS485/CAN | RS485/CAN | RS485/CAN |
* Battery voltage is determined by the following equation: Vmin = 352 x Vn/V1 , Vmax = (Vmpp - 100)*Vn/V2 , Vmax<600VDC V1 is battery cell discharge cut-off voltage, V2 is battery cell boost charge voltage, Vn is battery cell nominal voltage. |
System schematic diagram:
